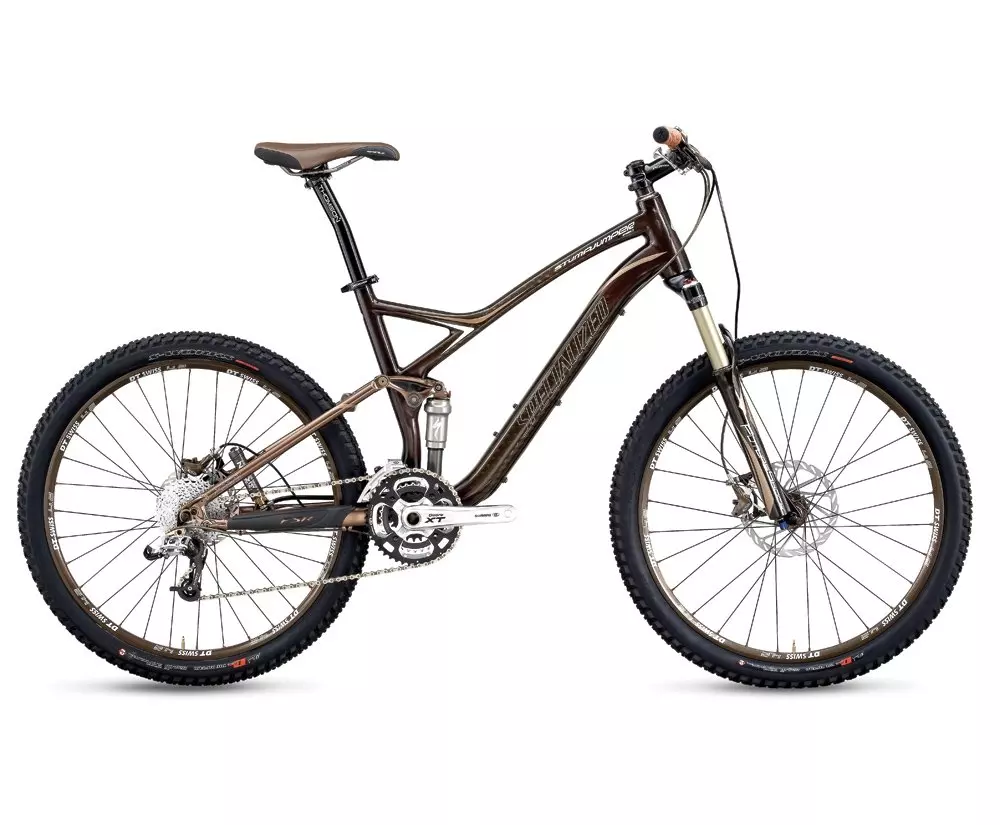

2009 Stumpjumper FSR Pro Carbon
0 Reviews
STILL GOING STRONG AFTER 25 YEARS, the Stumpjumper FSR is better known as the anything…
Product Details
STILL GOING STRONG AFTER 25 YEARS, the Stumpjumper FSR is better known as the anything and everything, 'make you an addict if you weren't one already' full suspension mountain bike with miles upon mile of trail-tuned flow.
Lightweight FACT 9m Az1 carbon frame with M5 Alloy chainstays/seatstays, integrated Brain mount and full cartridge bearing pivots with 120mm travel.
The Specialized AFR rear shock is designed with a Trail Tune Inertia valve, Brain Fade and adjustable rebound for the ultimate in terrain-sensing technology.
The Specialized Future Shock S120 fork delivers 120mm of air-sprung travel and terrain-sensing technology, including Trail Tune, Brain Fade and rebound adjust. Designed with a lightweight carbon crown and steerer.
Avid Ultimate hydraulic disc brakes with lightweight magnesium lever body and carbon blade, stainless hardware and alloy-backed organic pads provide modulation and control at every speed.
Technical Specifications
FRAMESET
FRAME
Stumpjumper FSR FACT 9M carbon main triangle, Az1 construction, M5 alloy SS/CS with Brain mount, DMD Direct Mount F.Der, full cartridge bearing pivots, 120mm travel
HEADSET
1-1/8"" Threadless, Campy style upper and OS lower cartridge bearing
SEAT BINDER
7050 hard annodized alloy collar w/ QR, 36.9mm clamp ID, for carbon frame black
SUSPENSION
REAR SHOCK
Specialized AFR Brain Shock w/ remote Trail Tune inertia valve, rebound adj. and Brain Fade, 7.25x1.75""
FORK
Specialized Future Shock S120, 120mm travel, single sided air spring and damper, Trail Tune, Brain Fade, rebound adj., carbon 1-1/8"" to 1.5"" steerer
WHEELS
FRONT TIRE
S-Works The Captain Control, 26x2.2"", 120 TPI, Aramid bead, dual compound, tubeless ready
REAR TIRE
S-Works The Captain Control, 26x2.2"", 120 TPI, Aramid bead, dual compound, tubeless ready
INNER TUBES
Specialized Ultralight 26x2.0"", presta
RIMS
DT Swiss XR 4.2D, 24mm w/ eyelets, 28/32h
FRONT HUB
Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, Oversized end caps, 9mm DT RWS, alloy QR, 28h
REAR HUB
Custom DT Swiss 280S w/ Star Rachet, alloy freehub w/ DT RWS, 10mm alloy QR, 32h
SPOKES
DT Swiss Super Comp 2.0/1.7/1.8mm butted stainless, black, alloy nipples
DRIVETRAIN
FRONT DERAILLEUR
Shimano M770 XT, DMD, top swing, dual pull
REAR DERAILLEUR
SRAM X-0, 9-speed, mid cage
SHIFT LEVERS
SRAM X-0, carbon/aluminum 9-speed trigger
CASSETTE
Shimano M770 XT, 9-speed, 11-34t
CHAIN
SRAM PC-971, 9-speed w/Power Link
CRANKSET
Shimano FC-M770 XT, 2pc., S: 170mm, others: 175mm
CHAINRINGS
22S x 32A x 44A, 4-bolt, 104/64mm
BOTTOM BRACKET
Shimano M-770 XT
COCKPIT
STEM
Specialized adjustable rise, 31.8mm clamp, 3D forged w/ CNC finish
HANDLEBARS
Specialized XC low rise 31.8mm bar, 2014 butted alloy, 6 degree up, 8 degree backsweep, 640mm wide
GRIPS
Specialized thin lock on grip (S/M) Specialized Thick lock on grip (L/XL)
SADDLE
Specialized Format, Ti rails, SL foam, S/M: 130mm L/XL:143mm
SEATPOST
Thomson Elite Setback w/ 12 degree clamp, S/M: 367mm L/XL: 410mm
BRAKES
FRONT BRAKE
Custom Avid Ultimate SL, alloy backed organic pads, alloy caliper, magnesium lever body w/ carbon blade, SS hardware package, S/M: 185mm, L/XL: 203mm rotor
REAR BRAKE
Custom Avid Ultimate SL, alloy backed organic pads, alloy caliper, magnesium lever body w/ carbon blade, SS hardware package, S/M: 160mm, L/XL:185mm rotor
BRAKE LEVERS
Custom Avid Ultimate SL Hydraulic
ACCESSORIES
PEDALS
None
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Bottom Bracket Height - Low Setting | 335mm | 335mm | 335mm | 335mm |
| Top Tube Length (Horizontal) | 556mm | 590mm | 625mm | 645mm |
| Head Tube Height | 128mm | 148mm | 168mm | 188mm |
| Head Tube Angle - Low Setting | 68.5° | 68.5° | 68.5° | 68.5° |
| Seat Tube Angle (Actual) - Low Setting | 71° | 71° | 71° | 71° |
| Seat Tube Angle (Effective) - Low Setting | 74.5° | 74.5° | 74.5° | 74.5° |
| Top Tube Length (Actual) | 541mm | 574mm | 607mm | 627mm |
| Seat Tube Length - Center to Top | 406mm | 444mm | 482mm | 533mm |
| Wheel Base | 1085mm | 1121mm | 1158mm | 1180mm |
| Standover Height | 705mm | 728mm | 738mm | 764mm |
| Chainstay Length | 420mm | 420mm | 420mm | 420mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 640mm | 640mm | 640mm | 640mm |
| Stem Length | 70mm | 90mm | 100mm | 110mm |
| Seatpost Length | 367mm | 367mm | 410mm | 410mm |
