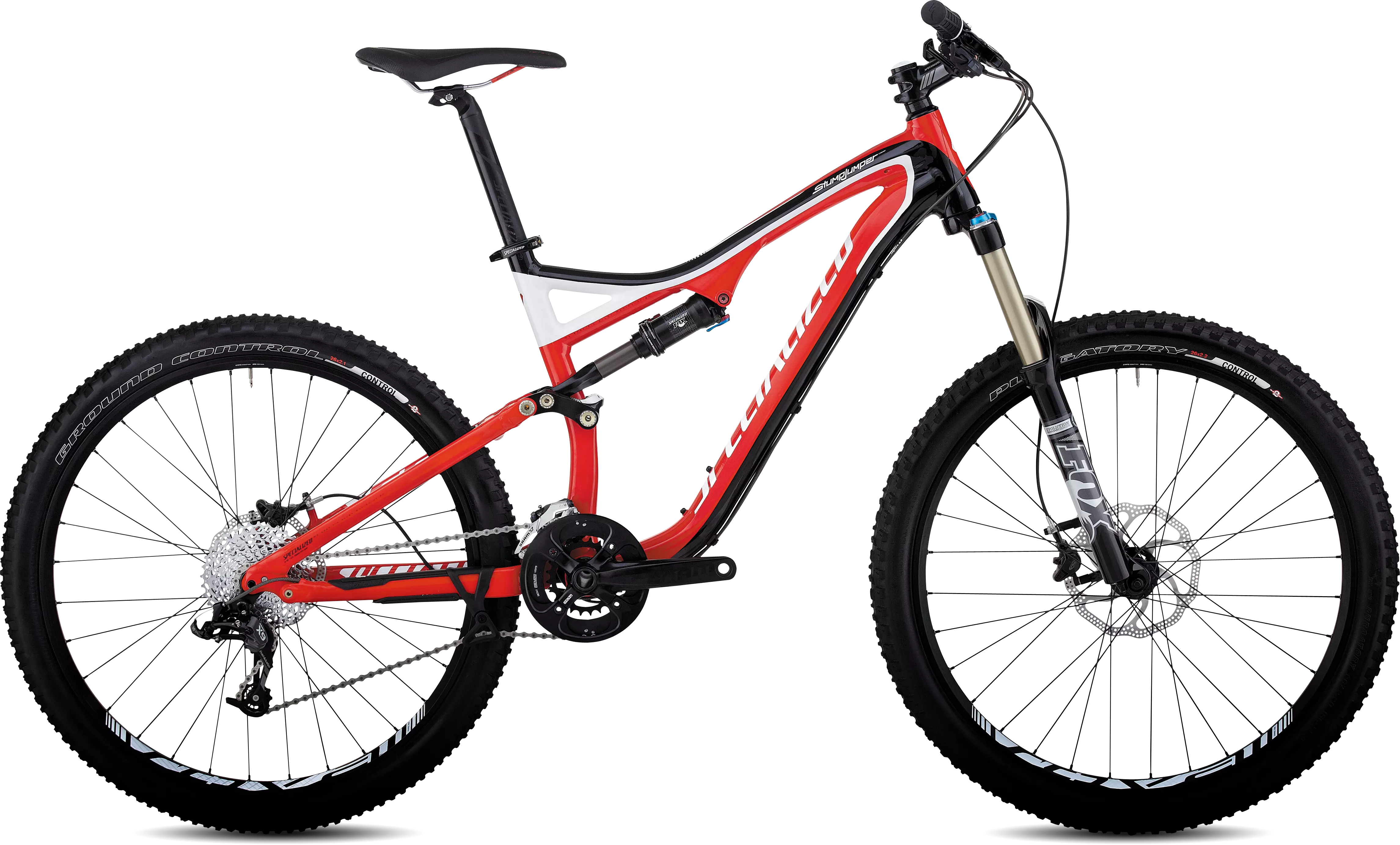

2012 Stumpjumper FSR Comp
0 Reviews
The M4 aluminium Stumpjumper FSR Comp has 140mm of plush and efficient FSR suspension,…
Product Details
The M4 aluminium Stumpjumper FSR Comp has 140mm of plush and efficient FSR suspension, and is equipped with a custom Fox Triad II shock with AUTOSAG, an air-sprung Fox Evolution F140 RL fork, and custom alloy SRAM S-1250, 10-speed XC Trail double crankset.
Custom Fox Triad II with the ground-breaking AUTOSAG function and on-the-fly, 3-position damping adjustment between a plush fully open, a more firm ProPedal and a lockout, for ideal performance over varying terrain
M5 hydroformed alloy frame with 140mm of rear wheel travel, tapered head tube, 142mm dropouts, PF30 BB, and sealed cartridge bearing pivots makes for one mean trail-slaying machine
Custom Fox Triad II with the ground-breaking AUTOSAG function and on-the-fly, 3-position damping adjustment between a plush fully open, a more firm ProPedal and a lockout, for ideal performance over varying terrain
Custom Avid Elixir 7 SL brakes with alloy-backed semi-metallic pads for smooth modulation and stopping power
Custom Fox Triad II with the ground-breaking AUTOSAG function and on-the-fly, 3-position damping adjustment between a plush fully open, a more firm ProPedal and a lockout, for ideal performance over varying terrain
M5 hydroformed alloy frame with 140mm of rear wheel travel, tapered head tube, 142mm dropouts, PF30 BB, and sealed cartridge bearing pivots makes for one mean trail-slaying machine
Custom Avid Elixir 7 SL brakes with alloy-backed semi-metallic pads for smooth modulation and stopping power
M5 hydroformed alloy frame with 140mm of rear wheel travel, tapered head tube, 142mm dropouts, PF30 BB, and sealed cartridge bearing pivots makes for one mean trail-slaying machine
Technical Specifications
FRAMESET
FRAME
M5 hydroformed tubing, tapered HT, PF30 BB, ISCG ’05, Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm travel
HEADSET
1-1/8 and 1-1/2" Threadless, Campy style upper with 1-1/2" lower, cartridge bearings
SEAT BINDER
34.9mm clamp ID, 7050 hard anodized alloy collar w/ QR, black
SUSPENSION
REAR SHOCK
Custom Fox Triad II with AUTOSAG, custom on-the-fly 3-position compression switch 1) Lock out 2) Open 3) ProPedal, rebound adj., 197x51mm
FORK
Fox Evolution F140 RL, air spring, tapered steerer, LO and reb adj., standard drop-outs, 140mm
WHEELS
RIMS
Roval 26, alloy disc, 26mm wide, 32h
FRONT HUB
Specialized Hi Lo disc, laser-etched logo, OS 24 end caps, sealed cartridge bearing, RWS, 32h
REAR HUB
Specialized Hi Lo 142+ disc, laser-etched logo, double-sealed cartridge bearing, 12mm thru-axle, 32h
SPOKES
DT Swiss Industry stainless 2.0 (14g)
FRONT TYRE
Specialized Purgatory Control, 120 TPI, 2Bliss ready, aramid bead, dual-compound, 26x2.2"
REAR TYRE
Specialized Ground Control, 60 TPI, 2Bliss ready aramid bead, 26x2.1"
INNER TUBES
Ultralight presta valve
DRIVETRAIN
FRONT DERAILLEUR
SRAM X7, 10-speed, S3 direct mount for DMD, bottom-pull
REAR DERAILLEUR
SRAM X9, 10-speed, mid cage
SHIFT LEVERS
SRAM X7, 10-speed, aluminium trigger
CASSETTE
SRAM PG-1030, 10-speed, 11-36t
CHAIN
KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates
CRANKSET
Custom SRAM S-1250, 7050 alloy arms, 10-speed XC Trail double, PF30 spindle, S: 170mm, Others: 175mm
CHAINRINGS
38/24, w/ alloy guard
BOTTOM BRACKET
SRAM PF30, OS press-in bearing, sealed cartridge
COCKPIT
SEATPOST
2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, Others: 400mm
STEM
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise, S: 60mm, M: 75, L:90, XL:105mm
HANDLEBARS
Specialized All-Mountain low-rise, 6061 butted alloy, 720mm wide, 8º backsweep, 6º upsweep, 31.8mm
GRIPS
Specialized lock-on, S/M: Grappler, Others: Grappler XL
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm width
BRAKES
FRONT BRAKE
Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, HS-1 rotor S/M:180mm, Others: 200mm
REAR BRAKE
Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, HS-1 rotor S/M:160mm, Others: 180mm
BRAKE LEVERS
Custom Avid Elixir 7 SL hydraulic, tool-less reach adj.
ACCESSORIES
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Seat Tube Angle Actual (Alloy) | 70° | 70° | 70° | 70° |
| Seat Tube Angle Actual (Carbon) | 69.2° | 69.6° | 70° | 70.4° |
| Seat Tube Angle Effective | 74.5° | 74.5° | 74.5° | 74.5° |
| Seat Tube Length, Center to Top | 396mm | 430mm | 468mm | 523mm |
| Top Tube Length, Actual | 556mm | 588mm | 616mm | 641mm |
| Bottom Bracket Drop | 1mm | 1mm | 1mm | 1mm |
| Bottom Bracket Height | 338mm | 338mm | 338mm | 338mm |
| Wheel Base | 1090mm | 1123mm | 1155mm | 1181mm |
| Standover Height | 745mm | 744mm | 752mm | 761mm |
| Stack | 567mm | 587mm | 597mm | 606mm |
| Reach | 398mm | 424mm | 452mm | 474mm |
| Head Tube Length | 110mm | 130mm | 140mm | 150mm |
| Head Tube Angle | 68° | 68° | 68° | 68° |
| Chainstay Length | 420mm | 420mm | 420mm | 420mm |
| Top Tube Length, Horizontal | 556mm | 587mm | 617mm | 642mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 720mm | 720mm | 720mm | 720mm |
| Stem Length | 60mm | 75mm | 90mm | 90mm |
| Seatpost Length | 380mm | 425mm | 425mm | 425mm |
