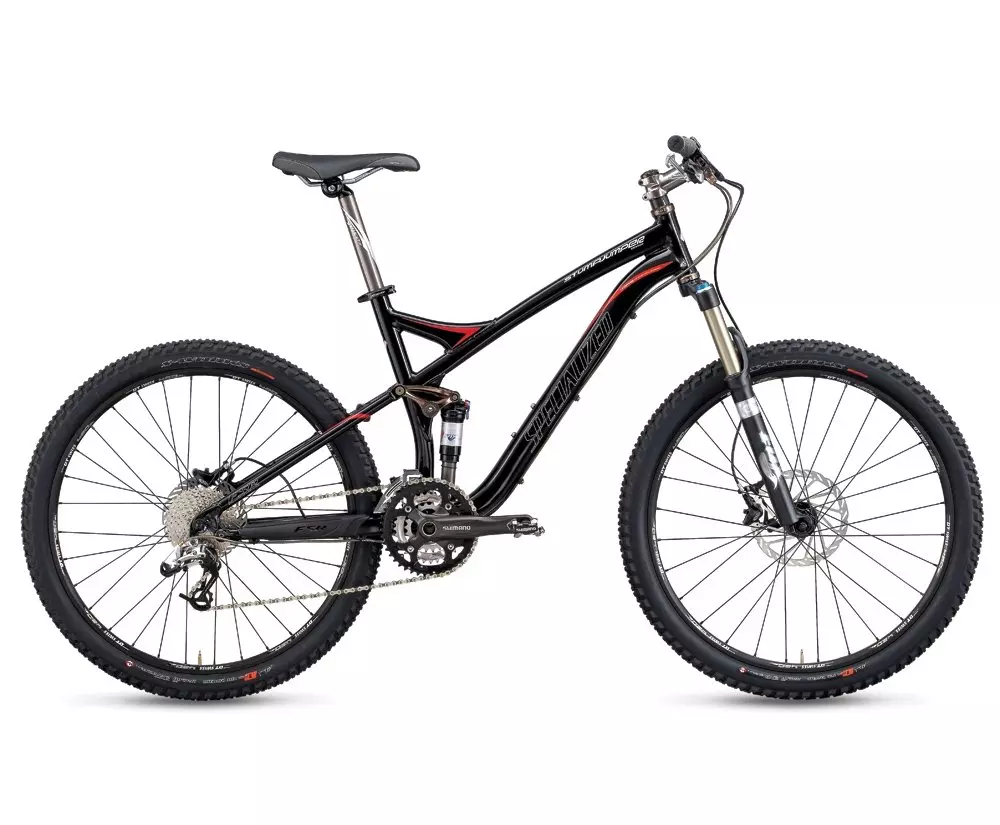

2009 Stumpjumper FSR Comp
5
1 Reviews
STILL GOING STRONG AFTER 25 YEARS, the Stumpjumper FSR is better known as the anything…
Product Details
STILL GOING STRONG AFTER 25 YEARS, the Stumpjumper FSR is better known as the anything and everything, 'make you an addict if you weren't one already' full suspension mountain bike with miles upon mile of trail-tuned flow.
Custom Avid Elixir hydraulic disc brakes offer excellent modulation thanks to organic pads, adjustable levers and size-specific rotors in a lightweight set up.
Designed by Ned Overend, our dual-compound S-Works "The Captain" tires have a fast-rolling center section and biting edge knobs to handle technical terrain.
Exclusive DT Swiss rims offer a 24mm-wide profile for exceptional strength, while remaining lightweight for improved acceleration and climbing performance.
The Fox Triad rear shock is custom-tuned for the Stumpjumper to enable on-the-fly three-position damping with open, lockout and ProPedal settings, plus adjustable rebound.
Technical Specifications
FRAMESET
FRAME
Stumpjumper FSR M5 Manipulated Alloy frame w/ ORE TT/DT, sealed cartridge bearing pivots, DMD Direct Mount F. Der, replaceable derailleur hanger, disc only, 120mm travel
HEADSET
1-1/8"" Threadless, 10mm insertion alloy cups, sealed cartridge bearing
SEAT BINDER
7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
SUSPENSION
REAR SHOCK
Fox Triad, custom on-the-fly 3-position switch 1) lock out 2) Open 3) ProPedal pedal assisting damping, rebound adj., 7.25x1.75""
FORK
Fox Float 120 RL, 120mm travel, compression and rebound adj. w/ LO, alloy steerer
WHEELS
FRONT TIRE
S-Works The Captain, 26x2.2"", 120 TPI, Aramid bead, dual compound, tubeless ready
REAR TIRE
S-Works The Captain, 26x2.0"", 120 TPI, Aramid bead, dual compound, tubeless ready
INNER TUBES
Specialized Ultralight 26x2.0"", presta
RIMS
Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
FRONT HUB
Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, 9mm DT RWS, alloy QR, 28h
REAR HUB
Custom Shimano M525 SL, alloy QR, 32h
SPOKES
DT Swiss 1.8mm stainless, black, alloy nipples
DRIVETRAIN
FRONT DERAILLEUR
Shimano M660 SLX, DMD, top swing, dual pull
REAR DERAILLEUR
SRAM X-9, 9-speed, mid cage
SHIFT LEVERS
SRAM X-7, aluminum trigger, 9-speed
CASSETTE
Shimano HG61, 9-speed, 11-34t
CHAIN
SRAM PC-971, 9-speed w/Power Link
CRANKSET
Custom Shimano FC-M542, S: 170mm, others: 175mm
BOTTOM BRACKET
Custom Shimano FC-M542
COCKPIT
STEM
Specialized adjustable rise, 31.8mm clamp, 3D forged w/ CNC finish
HANDLEBARS
Specialized XC low rise 31.8mm bar, 6066 butted alloy, 6 degree up, 8 degree backsweep, 640mm wide
GRIPS
Specialized thin lock on grip (S/M) Specialized Thick lock on grip (L/XL)
SADDLE
Specialized Format, hollow Cr-Mo rails, SL foam, S/M: 130mm L/XL:143mm
SEATPOST
2014 butted alloy, single bolt setback, 30.9x350/400mm
BRAKES
FRONT BRAKE
Custom Avid Elixir R SL, alloy backed organic pads, S/M: 185mm, L/XL: 203mm rotor
REAR BRAKE
Custom Avid Elixir R SL, alloy backed organic pads, S/M: 160mm, L/XL: 185mm rotor
BRAKE LEVERS
Custom Avid Elixir R SL Hydraulic, tool-less adj. reach
ACCESSORIES
PEDALS
None
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Bottom Bracket Height - Low Setting | 335mm | 335mm | 335mm | 335mm | 335mm |
| Top Tube Length (Horizontal) | 556mm | 587mm | 625mm | 645mm | 665mm |
| Head Tube Height | 100mm | 120mm | 140mm | 160mm | 160mm |
| Head Tube Angle - Low Setting | 68.5° | 68.5° | 68.5° | 68.5° | 68.5° |
| Seat Tube Angle (Actual) - Low Setting | 71° | 71° | 71° | 71° | 71° |
| Seat Tube Angle (Effective) - Low Setting | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
| Top Tube Length (Actual) | 533mm | 565mm | 601mm | 625mm | 640mm |
| Seat Tube Length - Center to Top | 406mm | 445mm | 483mm | 533mm | 584mm |
| Wheel Base | 1084mm | 1115mm | 1155mm | 1177mm | 1197mm |
| Standover Height | 721mm | 728mm | 755mm | 764mm | 778mm |
| Chainstay Length | 420mm | 420mm | 420mm | 420mm | 420mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm | 175mm |
| Handlebar Width | 640mm | 640mm | 640mm | 640mm | 640mm |
| Stem Length | 75mm | 90mm | 105mm | 120mm | 120mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm |
