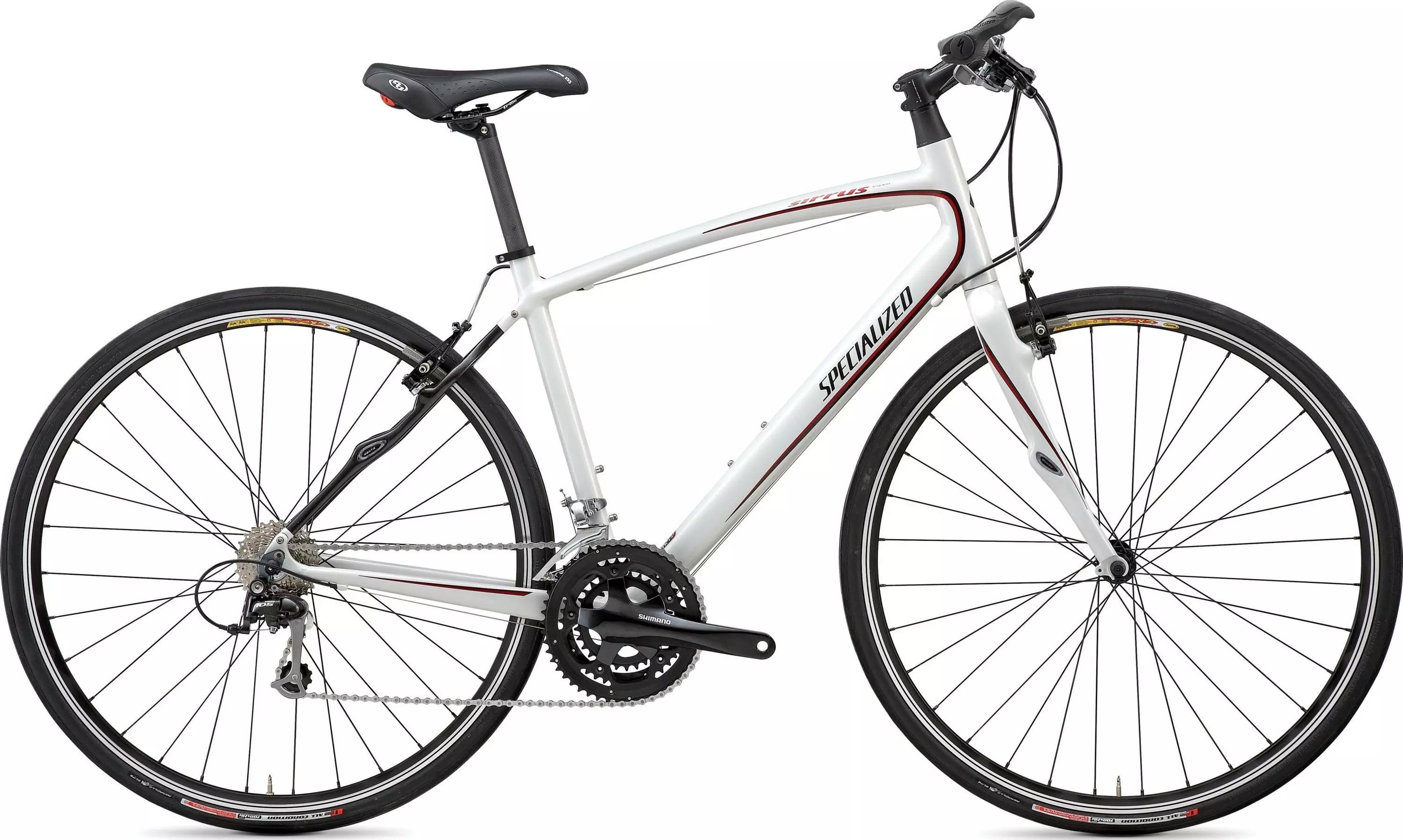

2010 Sirrus Expert

0 Reviews

Leaps and bounds beyond your everyday "fitness" rig, this flat-bar road bike combines…

Colour:

White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Leaps and bounds beyond your everyday "fitness" rig, this flat-bar road bike combines the easy speed, low weight and high comfort of our Endurance Road bikes with the enhanced ergonomics of Body Geometry components.

Flat aluminum handlebars add comfort and confidence to your ride
FACT carbon/alloy fork maximizes weight savings and confidence in tight turns
Adjustable 4-position stem with 31.8mm bar clamp for strength and versatile positioning
All Condition Armadillo Elite 700c tires handle water and debris with the ultimate puncture protection
Body Geometry Sonoma saddle provides cushioning where it counts, with enough comfort for long-distance rides
Body Geometry triple-density comfort grips alleviate hand pain and tingling fingers for all-day riding comfort
Lightweight E5 aluminum frame with carbon seatstays and integrated Zertz inserts for an optimal balance of performance and comfort

Technical Specifications

FRAMESET

FRAME

Specialized Sirrus E5 aluminum, carbon seatstays w/ Zertz inserts, integrated headset

FORK

Sirrus Carbon Fork, carbon crown and alloy steerer

HEADSET

Cage bearings integrated HS. w/ 20mm of spacers w/ top cap

SEAT BINDER

Alloy, 31.8mm

WHEELS

RIMS

Mavic CXP-22 S, aluminum triple-wall, sleeve joint, CNC machined sidewalls, w/ eyelets

FRONT HUB

Forged alloy, sealed, 28h for J bend round spokes

REAR HUB

Forged alloy, sealed, cassette, QR, 32h

SPOKES

Stainless 14g

FRONT TIRE

All Condition Armadillo Elite, 700 x 28c, aramid bead, 120TPI

REAR TIRE

All Condition Armadillo Elite, 700 x 28c, aramid bead, 120TPI

INNER TUBES

Standard presta valve

DRIVETRAIN

SHIFT LEVERS

Shimano Flat Bar Road Shifters

FRONT DERAILLEUR

Shimano

REAR DERAILLEUR

Shimano 105

CASSETTE

Shimano 105, 10-speed, 12-27t

CRANKSET

Shimano FCR-553

CHAINRINGS

50 x 39 x 30T

BOTTOM BRACKET

With Crankset

CHAIN

KMC X10 CP

COCKPIT

HANDLEBARS

2014 alloy, flat bar, 5-degree bend

STEM

Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp

TAPE

Body Geometry Comfort Grips open-end with plug, alloy barend

SADDLE

Body Geometry Sonoma, 155mm width

SEATPOST

Carbon wrapped, two-bolt clamp, 27.2mm

BRAKES

FRONT BRAKE

Mini-V brakes cold-forged, steel cartridge pads

REAR BRAKE

Mini-V brakes cold-forged, steel cartridge pads

BRAKE LEVERS

Forged alloy

ACCESSORIES

PEDALS

Silver cage/black body, w/ black toe clips and strap

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	S	M	L	XL
Seat-Tube Angle	76°	75°	74°	73.5°	73°
Head-Tube Length	135mm	155mm	185mm	215mm	250mm
Seat-Post Length	300mm	350mm	350mm	350mm	350mm
Head-Tube Angle	70°	71.25°	71.5°	72°	72.5°
Chain-Stay Length	440mm	435mm	435mm	435mm	435mm
Top-Tube Length, Horizontal	530mm	545mm	560mm	580mm	600mm
Front-Center	614mm	613mm	619mm	630mm	641mm
Handle-Bar Width	580mm	580mm	580mm	580mm	580mm
Stand-Over Height	727mm	763mm	796mm	824mm	860mm
Seat-Tube Length, B-B Center to Top	400mm	445mm	480mm	515mm	565mm
Fork Rake	51mm	51mm	51mm	51mm	51mm
B-B Drop	76mm	74mm	70mm	70mm	70mm
Trail	73mm	65mm	63mm	60mm	57mm
Wheelbase	1042mm	1038mm	1045mm	1056mm	1066mm
Crank Length	170mm	170mm	175mm	175mm	175mm
Stem Length	90mm	100mm	100mm	110mm	120mm
