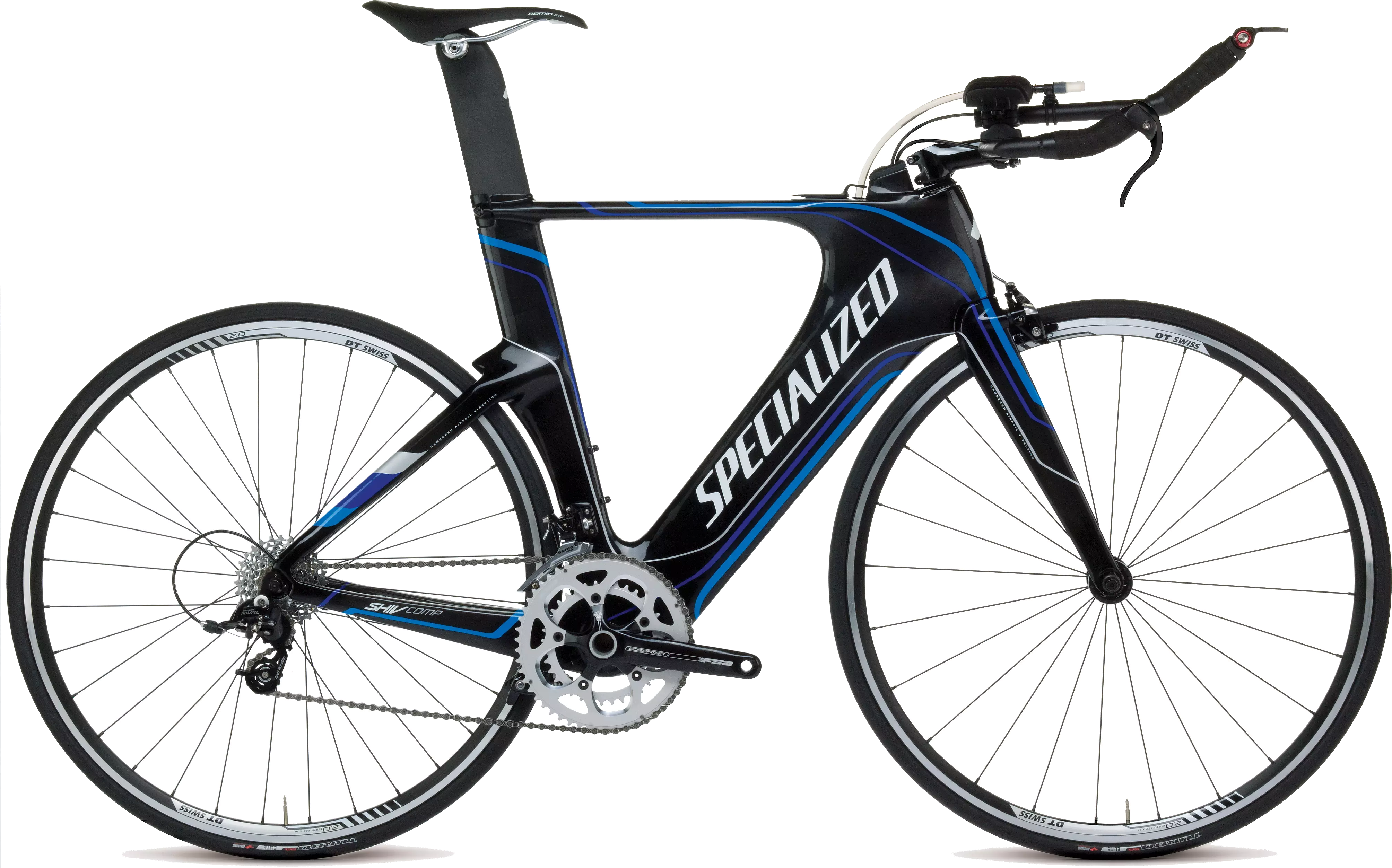

Shiv Comp

Pinch to Zoom

Rotate screen for larger image

2013 Shiv Comp

0 Reviews

We ignored UCI rules and designed the Shiv exclusively for triathlon: with unmatched…

Product Details

We ignored UCI rules and designed the Shiv exclusively for triathlon: with unmatched aerodynamics, the Fuelselage integrated hydration system, and a huge range of fit adjustability. The Shiv Comp Rival features a super light FACT IS 10r carbon frame with carbon aerobar and SRAM Rival drivetrain.

The ultimate frame for all distances of triathlon, this Pro10r Carbon, FACT IS frame with OSBB is optimised for crosswinds and the most aerodynamic race-ready frame anywhere
SRAM Rival rear derailleur for lightning-fast, smooth and quiet shifting
The ultimate frame for all distances of triathlon, this Pro10r Carbon, FACT IS frame with OSBB is optimised for crosswinds and the most aerodynamic race-ready frame anywhere
The ultimate frame for all distances of triathlon, this Pro10r Carbon, FACT IS frame with OSBB is optimised for crosswinds and the most aerodynamic race-ready frame anywhere
The ultimate frame for all distances of triathlon, this Pro10r Carbon, FACT IS frame with OSBB is optimised for crosswinds and the most aerodynamic race-ready frame anywhere
The ultimate frame for all distances of triathlon, this Pro10r Carbon, FACT IS frame with OSBB is optimised for crosswinds and the most aerodynamic race-ready frame anywhere
Integrated aerodynamic brakes minimise drag for aero excellence
The ultimate frame for all distances of triathlon, this Pro10r Carbon, FACT IS frame with OSBB is optimised for crosswinds and the most aerodynamic race-ready frame anywhere

Technical Specifications

FRAMESET

FRAME

Specialized Shiv 10r carbon, FACT IS construction, crosswind-optimised airfoils, 1-1/8" lower bearing, OSBB, Control Tower Fit System, Fuelselage Integrated Hydration System

SUSPENSION

FORK

Specialized FACT Aero carbon monocoque fork, carbon steerer and crown for 1-1/8" bearing

COCKPIT

HANDLEBARS

Specialized hydroformed alloy aerobars

STEM

Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt, 31.8mm

HEADSET

1-1/8" upper and lower, Cr-Mo cartridge bearings

TAPE

Specialized S-Wrap, w/ gel

SADDLE

BodyGeometry Romin Evo Comp, hollow Cr-Mo rails, 143mm

SEATPOST

Shiv Aero FACT carbon, 12.5mm

SEAT BINDER

Shiv Seat Clamp

WHEELS

FRONT WHEEL

DT Axis 2.0

REAR WHEEL

DT Axis 2.0

FRONT TYRE

Specialized Turbo Elite, 100TPI, aramid bead, BlackBelt protection, 700x23c

REAR TYRE

Specialized Turbo Elite, 100TPI, aramid bead, BlackBelt protection, 700x23c

INNER TUBES

Standard presta valve

DRIVETRAIN

SHIFT LEVERS

SRAM TT500 SL

FRONT DERAILLEUR

SRAM Apex

REAR DERAILLEUR

SRAM Rival

CASSETTE

SRAM PG-1050, 10-speed, 11-28

CRANKSET

FSA Gossamer BB30

CHAINRINGS

52/36

BOTTOM BRACKET

OS integrated

CHAIN

KMC X10 CP

BRAKES

FRONT BRAKE

Specialized Shiv Aero

REAR BRAKE

Specialized Shiv Aero

BRAKE LEVERS

TRP TL720 Aero lever

ACCESSORIES

PEDALS

Nylon flat test ride, loose-ball, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	S	M	L	XL
Seat-Tube Angle	77°	77°	77°	77°	77°
Head-Tube Length	99mm	115mm	139mm	163mm	189mm
Seat Tube Length, BB Center to Top	505mm	525mm	551mm	577mm	603mm
Seat-Post Length	350mm	350mm	350mm	350mm	350mm
Seat Post Setback	12.5mm	12.5mm	12.5mm	12.5mm	12.5mm
Head-Tube Angle	70.25°	71.5°	72°	72.5°	72.5°
Chain-Stay Length	395mm	395mm	395mm	395mm	395mm
Frame Reach	365mm	385mm	405mm	425mm	445mm
Front-Center	573mm	589mm	608mm	631mm	659mm
Frame Stack	495mm	515mm	540mm	565mm	590mm
Top Tube Length	481mm	504mm	530mm	557mm	582mm
Stand-Over Height	752mm	772mm	797mm	822mm	847mm
Fork Rake	50mm	50mm	45mm	45mm	45mm
B-B Drop	72mm	72mm	72mm	72mm	72mm
Trail	69mm	61mm	63mm	60mm	60mm
Wheelbase	957mm	973mm	992mm	1016mm	1043mm
Crank Length	165mm	170mm	172.5mm	172.5mm	175mm
