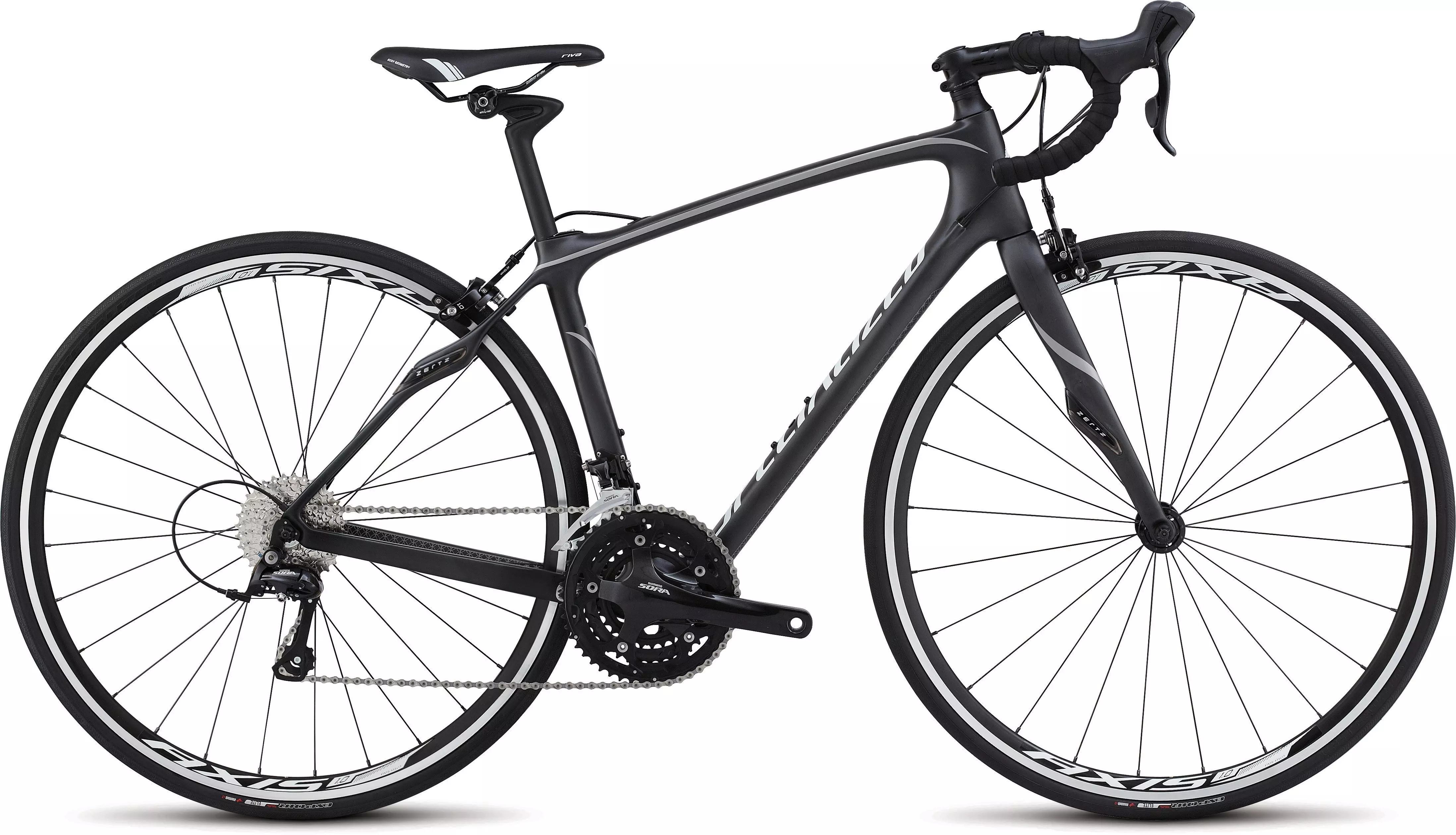

2015 Ruby Triple

0 Reviews

The Ruby is a quick and efficient, FACT carbon bike, with Zertz vibration dampers…

Colour:

Carbon/Silver/White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

The Ruby is a quick and efficient, FACT carbon bike, with Zertz vibration dampers in the frame and fork, designed to cover long distances with maximum control and comfort. High-quality Shimano Sora triple drivetrain and AXIS 1.0 wheelset keep weight down and performance up.

Comfortable, Specialized Body Geometry Women's Riva Comp saddle for all-day riding comfort
Tough, AXIS 1.0 wheelset is significantly lighter than comparable-level wheels
Specialized FACT 9r carbon frame w/ Women's Endurance Geometry, Zertz, and threaded BB
Comfortable, Specialized Body Geometry Women's Riva Comp saddle for all-day riding comfort
Specialized FACT 9r carbon frame w/ Women's Endurance Geometry, Zertz, and threaded BB
Tough, AXIS 1.0 wheelset is significantly lighter than comparable-level wheels
Specialized FACT 9r carbon frame w/ Women's Endurance Geometry, Zertz, and threaded BB

Technical Specifications

FRAMESET

FRAME

Specialized FACT 9r carbon, FACT construction, Women's Endurance Geometry, women's layup, Zertz, threaded BB

FORK

Specialized FACT carbon w/ Zertz, full monocoque

HEADSET

1-1/8"" stainless steel cartridge bearings, 20mm carbon cone spacer, w/ 20mm of carbon spacers

SEAT BINDER

Specialized Ruby, alloy

WHEELS

FRONT WHEEL

AXIS 1.0

REAR WHEEL

AXIS 1.0

FRONT TIRE

Specialized Espoir Elite, 60TPI, folding bead, double BlackBelt protection, 700x25c

REAR TIRE

Specialized Espoir Elite, 60TPI, folding bead, double BlackBelt protection, 700x25c

INNER TUBES

Standard, presta valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano Sora, braze-on

SHIFT LEVERS

Shimano Sora STI

REAR DERAILLEUR

Shimano Sora

CASSETTE

Shimano HG-50, 9-speed, 11-32

CRANKSET

Shimano Sora, triple

CHAIN

KMC X9, 9-speed, reusable Missing Link

COCKPIT

HANDLEBARS

Specialized Women's Comp, shallow drop, alloy, 123mm drop, 75mm reach

STEM

Specialized Comp Multi, 3D forged alloy, 4-bolt, 12-degree rise

TAPE

Specialized Roubaix, w/ 2.5mm gel pads

SADDLE

Body Geometry Women's Riva Comp, hollow Cr-Mo rails, 155mm

SEATPOST

Specialized CG-R, FACT carbon, single bolt, 27.2mm

BRAKES

FRONT BRAKE

AXIS 1.0

REAR BRAKE

AXIS 1.0

ACCESSORIES

PEDALS

Nylon flat test ride, loose-ball, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	44	48	51	54	57
Seat-Tube Angle	74.5°	74.5°	74°	74°	73.5°
Head-Tube Length	120mm	130mm	145mm	165mm	190mm
Seat-Post Length	350mm	350mm	350mm	350mm	350mm
Head-Tube Angle	70.25°	71.25°	71.5°	72°	72°
Chain-Stay Length	412mm	415mm	415mm	415mm	417mm
Top-Tube Length, Horizontal	509mm	522mm	529mm	539mm	566mm
Front-Center	577mm	584mm	587mm	591mm	614mm
Handle-Bar Width	360mm	380mm	400mm	400mm	420mm
Stand-Over Height	702mm	721mm	740mm	768mm	792mm
Seat-Tube Length, B-B Center to Top	363mm	391.5mm	421.5mm	456.5mm	486.5mm
Fork Rake	51mm	51mm	51mm	49mm	49mm
B-B Drop	73mm	73mm	73mm	73mm	71.5mm
Stack	518mm	531mm	546mm	568mm	590mm
Reach	358mm	370mm	370mm	374mm	390mm
Trail	68mm	62mm	60mm	59mm	59mm
Wheelbase	977mm	988mm	991mm	995mm	1021mm
Crank Length	165mm	165mm	170mm	170mm	170mm
Stem Length	75mm	75mm	90mm	100mm	100mm
