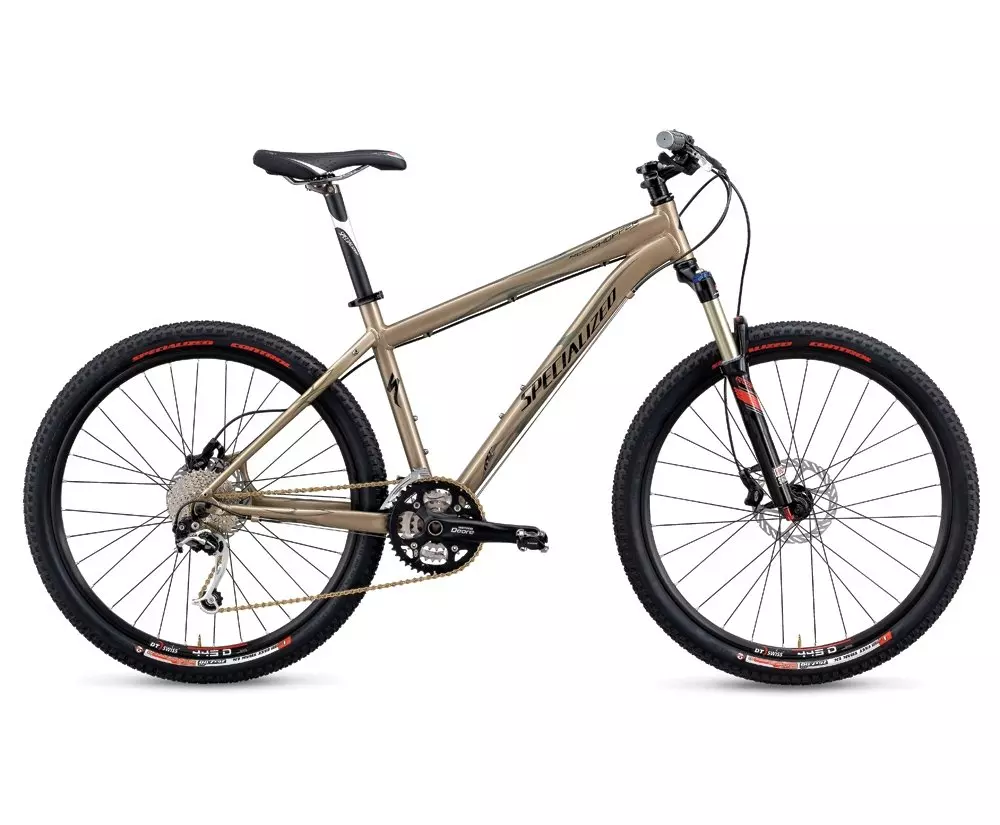

2009 Rockhopper Pro
0 Reviews
FOR OVER TWO DECADES the Rockhopper has been the best hardtail for any rider looking…
Product Details
FOR OVER TWO DECADES the Rockhopper has been the best hardtail for any rider looking for thrills and adventure over a wide variety of terrain. The Rockhopper's M4 alloy frame and premium specs deliver category-leading efficiency, value and dependable handling.
Avid’s Juicy 4 RSL hydraulic disc brakes feature a tool-free reach adjustment, combined with the 160mm G2 Clean Sweep rotors, you get sure, precise stops, every time.
DT Swiss 445D disc-specific rims are doublewalled and eyeleted for strength and durability.
Shimano’s Deore XT rear derailleur gives incredibly crisp shifts, its Shadow design tucks it out of the way for extra protection.
The Indie XC saddle uses our patented Body Geometry design to take care of your soft parts.
The M4 manipulated alloy frame is fully butted for lightweight strength, with an ORE downtube, forged dropouts, and a replaceable derailleur hanger.
The RockShox Reba SL features 80mm of air-sprung travel with lockout and an easy-to-use external rebound adjustment.
The high-volume Specialized Fast Trak LK Control 26x2.0-inch tires provide lots of traction, plus, they’re 2Bliss ready.
The triple-chainring crankset utilizes Shimano’s Octalink-splined bottom-bracket interface for highly efficient power transfer.
Technical Specifications
FRAMESET
FRAME
Specialized M4 Manipulated Alloy frame, fully butted, ORE DT, forged dropouts w/ replaceable 98954020 hanger, disc only
HEADSET
Specialized 1-1/8"" threadless, loose ball
SEAT BINDER
Specialized alloy w/ QR, brass washer
SUSPENSION
FORK
RockShox Reba SL 80mm, 100mm alloy steerer, magnesium lowers, air spring, external rebound and LO
WHEELS
FRONT TIRE
Specialized Fast Trak LK Control, 26x2.0"", 60TPI, aramid bead, 2Bliss ready
REAR TIRE
Specialized Fast Trak LK Control, 26x2.0"", 60TPI, aramid bead, 2Bliss ready
INNER TUBES
Specialized schraeder valve
RIMS
DT-Swiss 445D, 26"", double wall disc, pin joint, eyelets, 28/32h
FRONT HUB
Specialized Hi Lo, forged alloy, double sealed, ground race, alloy QR, 28h
REAR HUB
Specialized, forged alloy, double sealed, ground race, cassette, QR, 32h
SPOKES
1.8mm (15g) stainless
DRIVETRAIN
FRONT DERAILLEUR
Shimano Deore, 34.9mm clamp, bottom swing, dual pull
REAR DERAILLEUR
Shimano Deore XT Shadow
SHIFT LEVERS
Shimano Deore SL- M530, 9-speed
CASSETTE
Shimano HG-50, 9-speed, 11-34t
CHAIN
KMC X9SL w/ reuseable Missing Link
CRANKSET
Shimano Deore FC-M532, 2pc. design, replaceable rings w/ alloy outer
CHAINRINGS
44A x 32S x 22S
BOTTOM BRACKET
Shimano BB-ES25, Octalink spline, cartridge bearings, 68mm x 118mm
COCKPIT
STEM
Specialized 3D forged, adj. rise
HANDLEBARS
Specialized A1 Premium Aluminum, 31.8mm, 640mm wide, 6 degree back sweep, 8 degree up
GRIPS
Specialized Enduro, dual compound Kraton, no flange, 131mm
SADDLE
Specialized Indie XC, Body Geometry, 143mm width, front and rear bumpers
SEATPOST
Specialized alloy two bolt, double butted, micro adjust head, 30.9mm
BRAKES
FRONT BRAKE
Avid Juicy 4 RSL, hydraulic disc, alloy backed brake pads, organic compound, tool-less reach adj., 160mm G2 Clean Sweep rotor
REAR BRAKE
Avid Juicy 4 RSL, hydraulic disc, alloy backed brake pads, organic compound, tool-less reach adj., 160mm G2 Clean Sweep rotor
BRAKE LEVERS
Avid Juicy 4 RSL
ACCESSORIES
PEDALS
Shimano 505 SPD clipless, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 13 | 15 | 17 | 19 | 21 | 23 | |
|---|---|---|---|---|---|---|
| Bottom Bracket Height - Low Setting | 304mm | 304mm | 304mm | 304mm | 304mm | 304mm |
| Top Tube Length (Horizontal) | 545mm | 565mm | 590mm | 615mm | 640mm | 660mm |
| Head Tube Height | 100mm | 100mm | 110mm | 120mm | 140mm | 160mm |
| Head Tube Angle - Low Setting | 70° | 70° | 70° | 70° | 70° | 70° |
| Seat Tube Angle (Actual) - Low Setting | 73° | 73° | 73° | 73° | 73° | 73° |
| Top Tube Length (Actual) | 546mm | 551mm | 568mm | 590mm | 615mm | 638mm |
| Seat Tube Length - Center to Top | 330mm | 381mm | 432mm | 483mm | 533mm | 584mm |
| Wheel Base | 1030mm | 1050mm | 1075mm | 1101mm | 1127mm | 1148mm |
| Standover Height | 681mm | 715mm | 750mm | 783mm | 820mm | 855mm |
| Chainstay Length | 426mm | 426mm | 426mm | 426mm | 426mm | 426mm |
| Crank Length | 170mm | 170mm | 175mm | 175mm | 175mm | 175mm |
| Handlebar Width | 640mm | 640mm | 640mm | 640mm | 640mm | 640mm |
| Stem Length | 60mm | 60mm | 75mm | 75mm | 90mm | 90mm |
| Seatpost Length | 350mm | 350mm | 350mm | 400mm | 400mm | 400mm |
