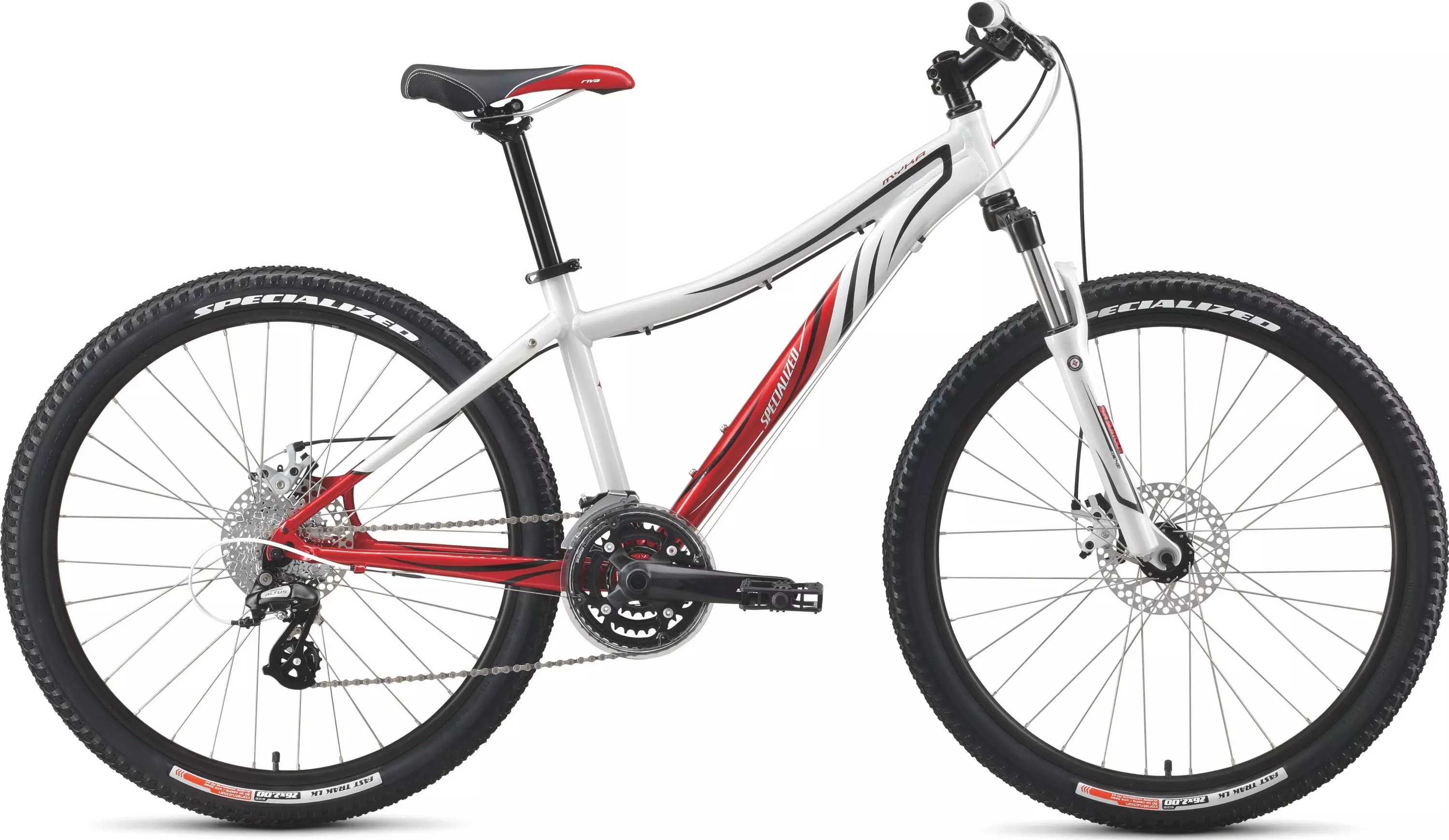

2011 Myka HT Disc Int

0 Reviews

Better braking control from disc brakes inspires confidence in changing ridiing …

Colour:

White/Red

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Better braking control from disc brakes inspires confidence in changing ridiing conditions.

Light and durable double-walled alloy rims are tough enough to handle the rough stuff
Reliable 7/8-speed triple crankset with replaceable outer ring and chainguard for added protection
Body Geometry Women's Riva MTB saddle combines generous padding and durable scuff guards for all-day performance and comfort
Fully butted A1 Premium Aluminum frame with women's recreational XC geometry and low standover for a confident and lightweight ride
80mm smooth-travel SR Suntour fork with preload adjustment and custom women's-specific spring rates means the suspension is dialed for your size
Specialized Fast Trak LK Sport 60tpi tires use a reduced knob height for lower rolling resistance, but have plenty of grip for confidence on the trail

Technical Specifications

FRAMESET

FRAME

Myka A1 Premium Aluminum, fully butted, women's geometry, low standover TT, ORE DT, externally relieved HT, forged dropouts w/ replaceable alloy hanger

HEADSET

1-1/8"" threadless, loose ball

SEAT BINDER

Alloy QR, nylon washer

SUSPENSION

FORK

SR Suntour SF11-XCT-V3-DS-26, 80mm, 1pc. alloy lower, 28mm Hi-Ten stanchions, coil/mcu spring w/ preload adj.

WHEELS

RIMS

Alex HRD 26"", alloy double wall, pinned, 32h

FRONT HUB

Forged alloy, double sealed, ground race, disc, QR, 32h

REAR HUB

Forged alloy, double sealed, ground race, cassette, disc, QR, 32h

SPOKES

2mm (14g) stainless

FRONT TIRE

Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead

REAR TIRE

Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead

INNER TUBES

Schraeder valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano FD-M310 Altus, 34.9mm clamp

REAR DERAILLEUR

Shimano RD-M310 Altus, 7sp direct mount Long cage

SHIFT LEVERS

Shimano SL-M310 Acera SL, 7sp rapid fire trigger

CASSETTE

SRAM PG-730, 7-speed, 12-32t

CHAIN

KMC Z7 w/ reuseable Missing Link

CRANKSET

SR SunTour, square taper spline

CHAINRINGS

42S x 32S x 22S, w/ chainguard

BOTTOM BRACKET

Sealed cartridge, square taper, 118mm

COCKPIT

STEM

Alloy A-head, 4 bolt, 20 degree rise, 25.4mm clamp

HANDLEBARS

Hi-Ten riser bar, 35mm rise, 8 degree back sweep, 4 degree up

GRIPS

Specialized Myka, dual density Kraton, 130mm

SADDLE

Body Geometry Women's Riva MTB, 155mm width

SEATPOST

Alloy two bolt, 12.5mm offset, micro adjust, 30.9mm

BRAKES

FRONT BRAKE

Tektro IO Mechanical disc brake, dual pad angle adj., 160mm rotor

REAR BRAKE

Tektro IO Mechanical disc brake, dual pad angle adj., 160mm rotor

BRAKE LEVERS

Alloy, linear pull

ACCESSORIES

PEDALS

Composite body, reflectors, toe clip compatible, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	13	15	17	19
Ground-Top	867mm	867mm	886mm	895mm
Bottom Bracket Height - Low Setting	304mm	304mm	304mm	304mm
Top Tube Length (Horizontal)	525mm	545mm	575mm	595mm
Head Tube Height	100mm	100mm	120mm	130mm
Head Tube Angle - Low Setting	69.5°	69.5°	69.5°	69.5°
Seat Tube Angle (Actual) - Low Setting	74°	74°	73°	73°
Top Tube Length (Actual)	521mm	534mm	553mm	571mm
Seat Tube Length - Center to Top	330mm	381mm	432mm	483mm
Wheel Base	1029mm	1048mm	1068mm	1089mm
Standover Height	660mm	677mm	744mm	777mm
Stack	567mm	567mm	585mm	595mm
Reach	363mm	383mm	396mm	413mm
Chainstay Length	426mm	426mm	426mm	426mm
