If you're thinking about taking the plunge into XC racing, do it with the Chisel…
If you're thinking about taking the plunge into XC racing, do it with the Chisel Comp. It embodies all of the qualities you'd expect from an XC race bike, like light overall weight, incredible stiffness, and a race-oriented geometry—all with one-by gearing, too. Consider it the vessel that's bringing performance to the masses.

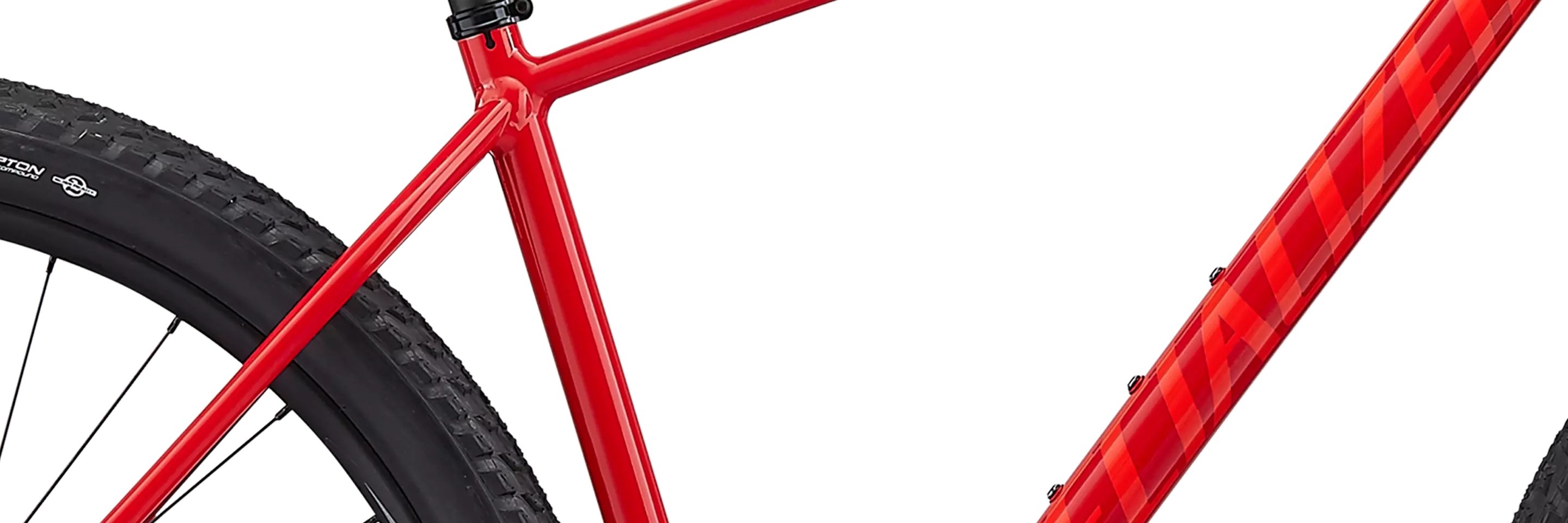

Traditional welding methods create frame joints by connecting tubes to cylinders, leaving the performance and security of the connection up to the skill of the welder. D'Aluisio (DSW), however, allows us to move the joint away from the area of the highest stress, making for a lighter frameset that's stiff, compliant, and incredibly strong—the optimal characteristics of a hardtail XC rig. So what does this mean for you? You'll be powering up climbs, shredding singletrack, and everything in between on a bike that has you questioning why alloy's gotten such a bad rap.
And to further improve this feel, the Chisel also features our XC geometry, which took our previous XC race geo and added some trail DNA to the mix. This equates to a longer top tube, a shortened head tube, and a slacked out front-end, the result of which is a tremendous increase in downhill stability, plus a wider range of fit. And just as importantly, this doesn't require any sacrifice of climbing proficiency.
The build on this Chisel features a Shimano SLX one-by setup for ease of use along with a wide-range of gears. You'll also find powerful MT500 Deore hydraulic disc brakes, the renowned RockShox Judy fork with up to 100mm of travel (size-specific), and 25-millimeter-wide alloy wheels that are optimized for weight and traction.
Given its lightweight and ultra-stiff characteristics, M5 aluminum was the natural choice for the frame's construction. And when complemented with our speed-focused XC 29 Geometry, D'Aluisio Smartweld technology, and internal cable routing, you get a bike that compromises nothing in delivering explosive speed, confident handling, and hassle-free maintenance.

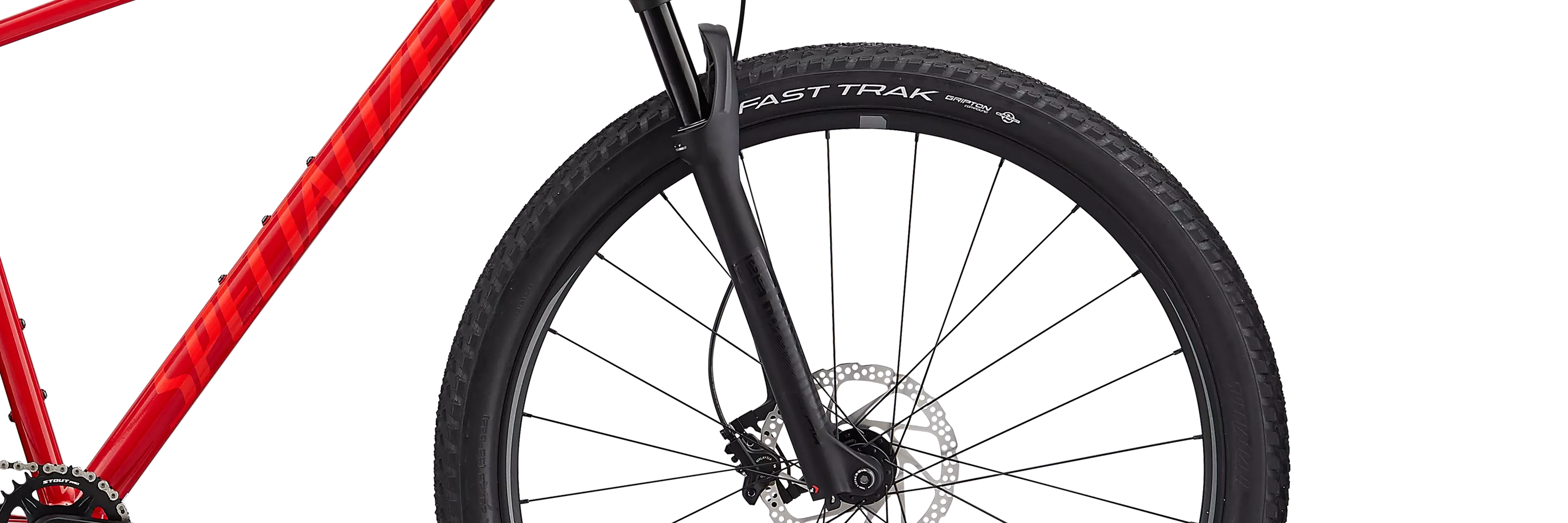

Rocks and bumps are soaked up via the RockShox Judy Gold fork with 90/100 millimeters of travel (size-specific). It features proprietary technology from RockShox, like its Solo Air™ spring, that maintains an ideal equilibrium, as well as being one of the lightest air springs on the market.

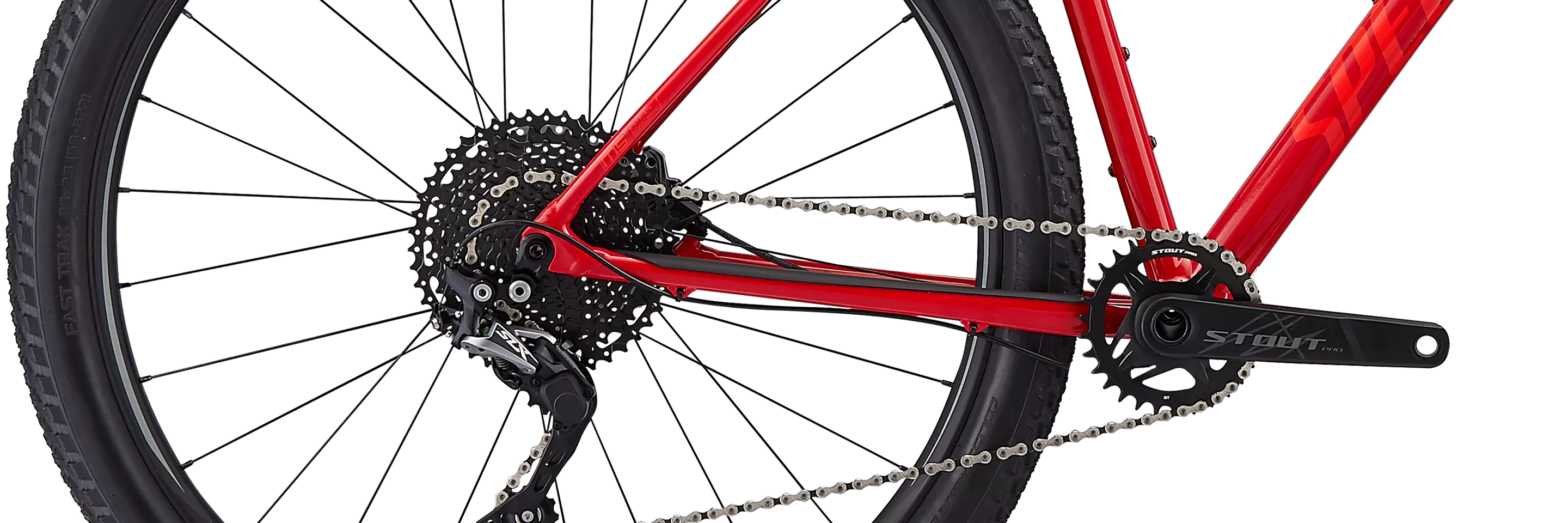

The Shimano Deore SLX rear derailleur is durable, precise, and will keep you shifting crisply for miles to come.
FRAME
Specialized D'Aluisio Smartweld M5 Alloy, XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, triangulated post-mount 160mm brake
FORK
RockShox Judy Gold 29, Solo Air, 51mm offset, 15x110mm thru-axle (S: 90mm, M-XL: 100mm of travel)
SEAT BINDER
Alloy, 30.8mm
STEM
Specialized Alloy, 3D forged, 4-bolt, 6-degree
HANDLEBARS
Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
GRIPS
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
SADDLE
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Alloy, 2-bolt clamp
REAR BRAKE
Shimano MT-501, hydraulic disc, resin pad
FRONT BRAKE
Shimano MT-501, hydraulic disc, resin pad
REAR DERAILLEUR
Shimano SLX, Shadow Plus, 11-speed
SHIFT LEVERS
Shimano SLX, 11-speed
CASSETTE
SunRace, 11-speed, 11-46t
CHAIN
KMC X11, 11-speed w/ Missing Link™

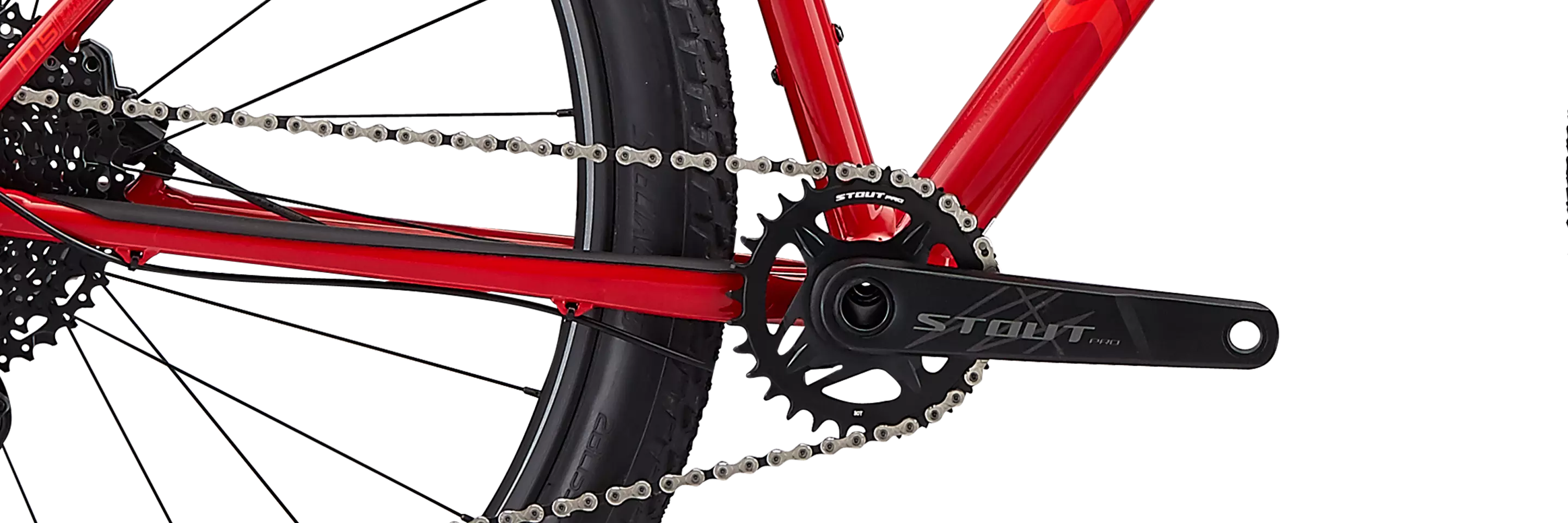

CRANKSET
Stout Pro, forged alloy
CHAINRINGS
30T
BOTTOM BRACKET
BSA for 24mm spindle
RIMS
Stout XC 29, 25mm internal width, disc-specific
FRONT HUB
Specialized, sealed cartridge bearings, 15x110mm thru-axle, 24h
REAR HUB
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
SPOKES
Stainless, 14g
FRONT TIRE
Fast Trak, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
REAR TIRE
Fast Trak, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
INNER TUBES
Standard, Presta valve
PEDALS
Specialized Dirt
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
S | M | L | XL | |
---|---|---|---|---|
Crank Length | 170mm | 175mm | 175mm | 175mm |
Handlebar Width | 750mm | 750mm | 750mm | 750mm |
Stem Length | 60MM | 70MM | 80MM | 90MM |
Saddle Width | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 350MM | 400MM | 400MM | 400MM |
Stack | 595mm | 605mm | 619mm | 633mm |
Reach | 395mm | 418mm | 441mm | 462mm |
Head Tube Length | 95mm | 95mm | 110mm | 125mm |
Head Tube Angle | 69.8° | 69.8° | 69.8° | 69.8° |
BB Height | 312.5mm | 312.5mm | 312.5mm | 312.5mm |
BB Drop | 57.5mm | 57.5mm | 57.5mm | 57.5mm |
Trail | 82mm | 82mm | 82mm | 82mm |
Fork Length, Full | 496mm | 506mm | 506mm | 506mm |
Fork Rake/Offset | 51mm | 51mm | 51mm | 51mm |
Front Center | 650mm | 676mm | 704mm | 730mm |
Chainstay Length | 430mm | 430mm | 430mm | 430mm |
Wheelbase | 1073mm | 1100mm | 1128mm | 1154mm |
Top Tube Length, Horizontal | 567mm | 594mm | 622mm | 648mm |
Bike Standover Height | 760mm | 790mm | 814mm | 845mm |
Seat Tube Length | 400mm | 430mm | 470mm | 520mm |
Seat Tube Angle | 74° | 74° | 74° | 74° |
