2013 Globe Daily 1 Step Through
0 Reviews
Keep it light, keep it simple—but sacrifice nothing in terms of practicality and…
Colour:
Black
What's my size?
Select a Size
Product Details

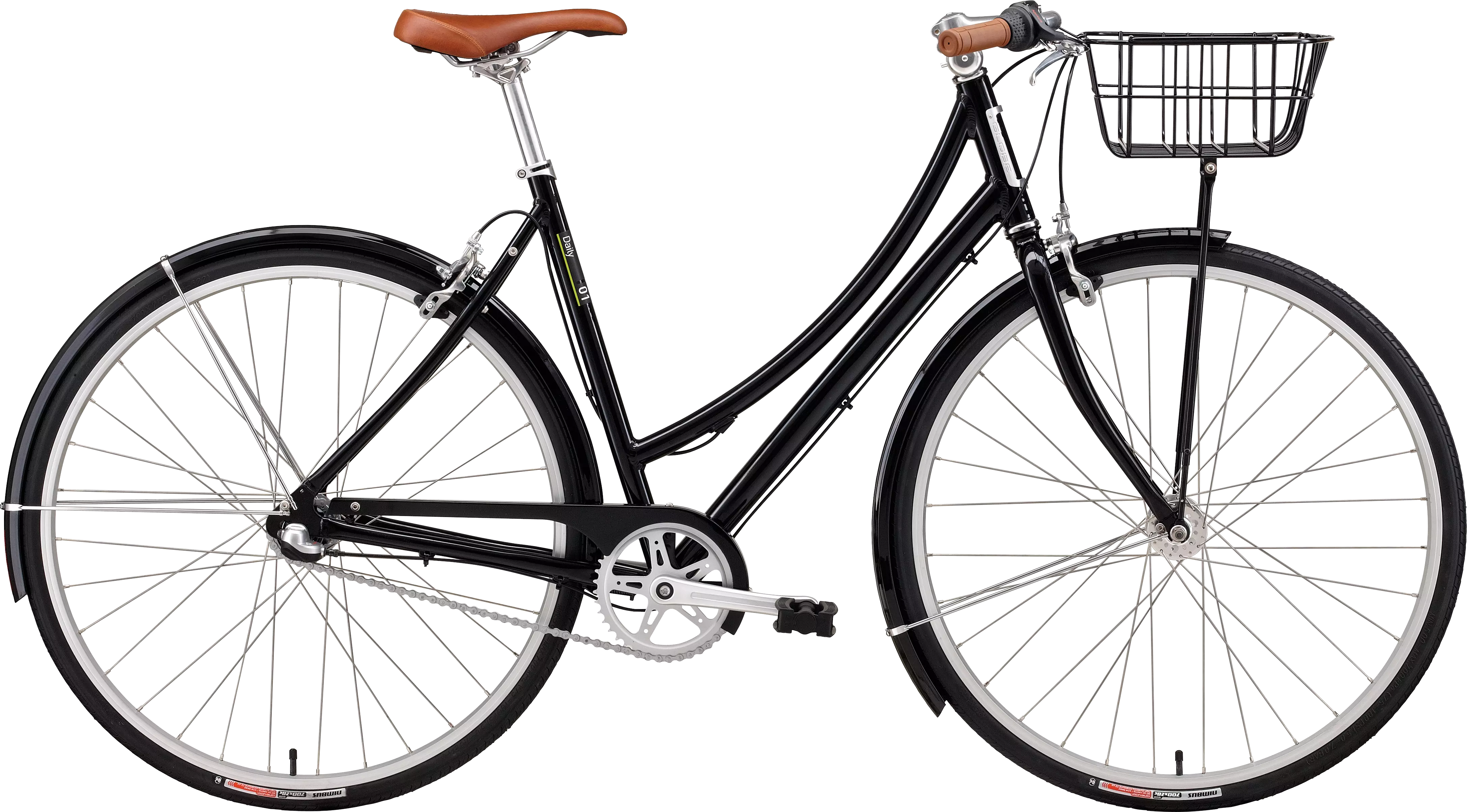

Keep it light, keep it simple—but sacrifice nothing in terms of practicality and durability. The Daily 1 is your everyday errand runner, with mudguards and an integrated basket, plus low-standover, step-through frame to improve convenience and confidence.
Hi-Ten steel fork is simple and durable, with curved legs to smooth out the road
Globe City grips are comfortable and keep you in control
Globe A1 Premium aluminium, step-through classic city frame with mudguard/rack braze-ons, and kickstand mount is all about light weight, style, and versatility
Globe A1 Premium aluminium, step-through classic city frame with mudguard/rack braze-ons, and kickstand mount is all about light weight, style, and versatility
Globe A1 Premium aluminium, step-through classic city frame with mudguard/rack braze-ons, and kickstand mount is all about light weight, style, and versatility
Classic Daily saddle is soft and supportive for efficient comfort, with centre groove for those sensitive areas, and one-piece cover for all-weather resistance
Technical Specifications
FRAMESET
FRAME
Globe A1 Premium Aluminium step-through, w/ mudguard and rack braze-ons, integrated kickstand mount
SUSPENSION
FORK
Globe curve blade steel fork, classic design, hidden Globe Accessory mounting eyelets
COCKPIT
TAPE
Globe City, Kraton, 140mm, closed type
SADDLE
Globe Daily Classic Women's, 175mm
SEATPOST
Alloy, 2-bolt forged head, 27.2mm, 12.5mm offset
SEAT BINDER
Globe custom forged-alloy extra slim clamp, 31.8mm
HANDLEBARS
City alloy flat bar, 20-degree frontsweep, 75-degree backsweep, 25.4mm
STEM
Melt forged alloy, 2-bolt, 15-degree rise, 25.4mm clamp
HEADSET
1-1/8" Aheadset, loose ball retainers, cold-forged Cr-Mo cups
WHEELS
RIMS
SVX200, alloy double-wall, pinned, CNC machined sidewalls, 32h
FRONT HUB
Alloy front hub, w/Phone dial holes, 3/8" axle, flange nut, 32 holes, w/track nut
REAR HUB
Shimano Nexus internal 3-speed, 32h
SPOKES
Stainless, 14g
FRONT TYRE
Specialized Infinity, Flak Jacket, 26TPI, 700x28c
REAR TYRE
Specialized Infinity, Flak Jacket, 26TPI, 700x28c
INNER TUBES
Schrader valve
DRIVETRAIN
SHIFT LEVERS
Shimano Nexus Twist shifter, 3-speed
CASSETTE
18T sprocket for 3-speed Internal
CRANKSET
Forged alloy crank, 42T
CHAINRINGS
Forged alloy arm, 42T
BOTTOM BRACKET
Cartridge bearing, square spindle, w/ crank stop right side, capless bolts
CHAIN
KMC Z-510XRB Rust Buster
BRAKES
FRONT BRAKE
Classic calliper brake, melt-forged arms
REAR BRAKE
Classic calliper brake, melt-forged arms
BRAKE LEVERS
Classic calliper pull, forged
ACCESSORIES
PEDALS
Composite platform body, sealed loose ball bearings
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| SM | MD | LG | |
|---|---|---|---|
| Seat-Tube Angle | 72° | 71.5° | 71.5° |
| Head-Tube Length | 215mm | 225mm | 235mm |
| Seat-Post Length | 300mm | 300mm | 350mm |
| Head-Tube Angle | 70° | 71° | 72.5° |
| Chain-Stay Length | 441mm | 441mm | 441mm |
| Top-Tube Length, Horizontal | 560mm | 575mm | 600mm |
| Front-Center | 627mm | 625mm | 622mm |
| Handle-Bar Width | 580mm | 580mm | 580mm |
| Stand-Over Height | 525mm | 514mm | 514mm |
| Seat-Tube Length, B-B Center to Top | 480mm | 530mm | 570mm |
| Fork Rake | 60mm | 60mm | 51mm |
| B-B Drop | 70mm | 70mm | 70mm |
| Trail | 62mm | 56mm | 56mm |
| Wheelbase | 1059mm | 1056mm | 1054mm |
| Crank Length | 170mm | 170mm | 170mm |
| Stem Length | 75mm | 75mm | 90mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
