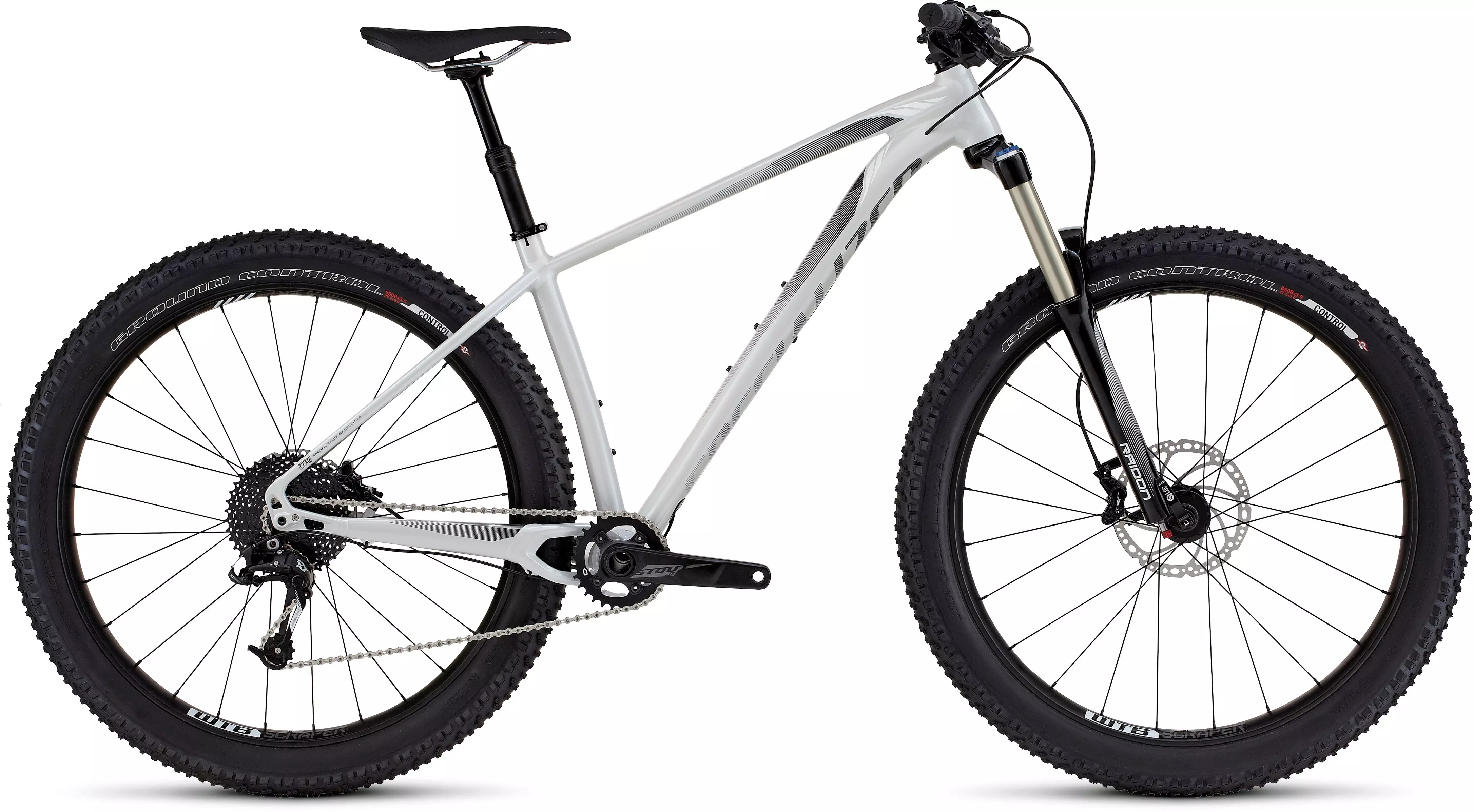

2016 Fuse Comp 6Fattie
4.8
4 Reviews
Take a look at the world's strongest man, and you're not going to find some chiselled…
Colour:
Gloss Dirty White/Black/White
What's my size?
Select a Size
Product Details
Take a look at the world's strongest man, and you're not going to find some chiselled Adonis. You're going to find someone who has more volume. Behind the "extra" surface area, though, there's a man that can dominate a caber toss and run down the tarmac with a plane in tow. Mathematically, it could be broken down as more volume + versatility = dominance, and that's exactly what's at play with the Fuse Comp 6Fattie. Our 6Fattie Wheel System uplifts the Fuse to have more traction and control than any hardtail before it, while its no-nonsense build is custom spec'd to get the job done, no matter how rugged, technical, or hair raising that job might be.
Our Stout XC crankset would be the perfect complement to any one-by drivetrain, but here, its strong alloy construction and spindle makes it ideal for power transfer on climbs and the inevitable rock-strike when descending through technical gardens.
Our Stout XC crankset would be the perfect complement to any one-by drivetrain, but here, its strong alloy construction and spindle makes it ideal for power transfer on climbs and the inevitable rock-strike when descending through technical gardens.
650bx3.0" 6Fattie Ground Control tyres feature a perfectly sized contact patch for life-changing levels of traction and control while cornering, all without sacrificing climbing efficiency or descending prowess.
Our Stout XC crankset would be the perfect complement to any one-by drivetrain, but here, its strong alloy construction and spindle makes it ideal for power transfer on climbs and the inevitable rock-strike when descending through technical gardens.
M4 Premium Aluminium proved to be the right material for the job, allowing a lightweight, durable frame with a low and slack geometry that's equal parts snappy and efficient on climbs and descents. It also allowed us to incorporate our exclusive Diamond Stay that accommodates the 6Fattie wheels/ tyres without compromising on our hallmark short chainstays that provide unrivalled handling and climbing prowess.
Technical Specifications
FRAMESET
FRAME
Specialized M4 Premium Aluminium, Trail 6Fattie Geometry, fully-butted w/ smooth welds, tapered head tube, tapered seat tube, forged 160mm disc mounts, 148mm thru-axle dropouts, replaceable alloy derailleur hanger
HEADSET
1-1/8" upper, 1-1/2" lower, threadless, Campy style, cartridge bearings
SEAT BINDER
Alloy, 31.8mm
SUSPENSION
FORK
SR Suntour Raidon 650+, air spring, S: 100mm travel, M/L/XL: 120mm travel, compression adjust, rebound adjust, tapered alloy steerer, alloy stanchions, 15x110mm thru-axle
WHEELS
SPOKES
Stainless, 14g, black
INNER TUBES
Standard, Presta valve
RIMS
WTB Scraper i45 650b, double-wall, 45mm inner width, 18mm deep, TCS tubeless compatible, sleeved, 24/28h
FRONT HUB
Specialized Stout XC Pro 110, disc, alloy, cartridge bearings, 15x110mm thru-axle, 24h
REAR HUB
Specialized Stout XC Pro 148, disc, alloy, loose ball bearings, 12x148mm thru-axle, 28h
FRONT TYRE
Specialized 6Fattie Ground Control, 60TPI, 2Bliss Ready, folding bead, 650bx3.0"
REAR TYRE
Specialized 6Fattie Ground Control, 60TPI, 2Bliss Ready, folding bead, 650bx3.0"
DRIVETRAIN
CASSETTE
Custom Sunrace, wide range, 10-speed, 11-40t
BOTTOM BRACKET
Samox, PF30, sealed cartridge
REAR DERAILLEUR
SRAM X7 Type 2.1, 10-speed, long cage
SHIFT LEVERS
SRAM X5, 2x10, trigger
CHAIN
KMC X10L, 10-speed, w/ reusable MissingLink
CRANKSET
Specialized Stout XC, forged alloy, 148-specific chain line, PF30, Cr-Mo spindle, 30T, 76mm BCD spider
COCKPIT
STEM
Specialized, 3D forged alloy, 4-bolt, 6-degree rise
GRIPS
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness
HANDLEBARS
Specialized Stout, flat bar, double-butted 6061 alloy, 9-degree backsweep, 4-degree upsweep, 31.8mm
SADDLE
Body Geometry Henge Comp, thin padding, hollow Cr-Mo rails, 143mm
SEATPOST
TranzX YSP03 dropper, internal cable routing, remote lever, 30.9mm, S: 100mm travel, M/L/XL: 120mm travel
BRAKES
FRONT BRAKE
TRP Slate T4, hydraulic disc, 4-piston, metallic pads, 180mm rotor
REAR BRAKE
TRP Slate X2, hydraulic disc, dual piston, I-spec compatible, Matchmaker adapter, 160mm rotor
BRAKE LEVERS
TRP, hydraulic, tooled reach adjust
ACCESSORIES
PEDALS
Alloy, 1 pc. body, 9/16", w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
