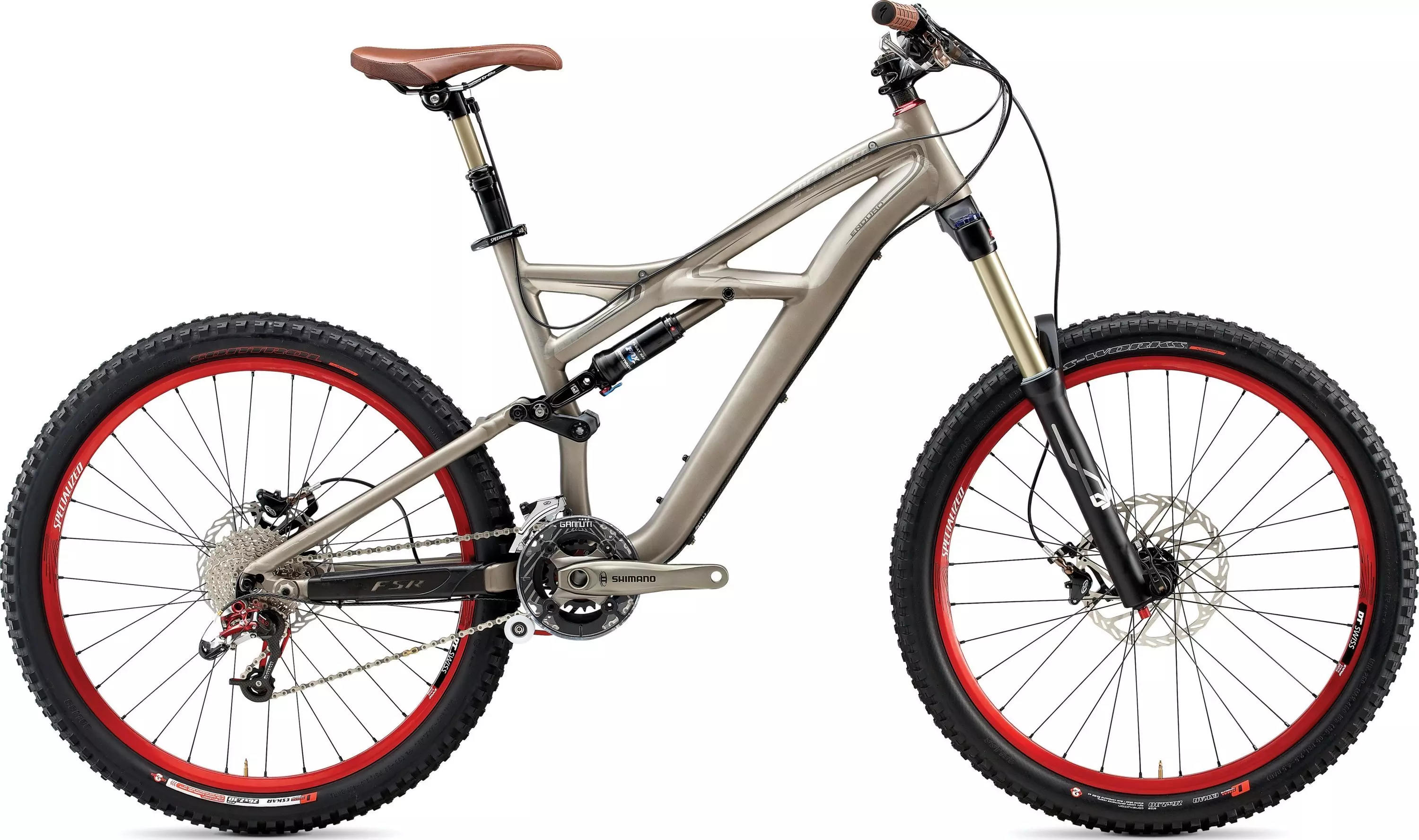

2010 EnduroSL Expert

0 Reviews

Where XC and DH collide, you'll find the lightweight Enduro SL—the most capable All…

Colour:

Ti Pab

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Where XC and DH collide, you'll find the lightweight Enduro SL—the most capable All Mountain bike that lets you climb without crying and rail in the technical terrain. If you want to ride the whole mountain and really own it, the Enduro's six-inch travel frame, adjustable travel fork, position-sensitive rear shock and remote-adjust seatpost give you the skills to get the job done (though you'll need a little talent on your own).

Avid Elixir R CR SL lightweight hydraulic disc brakes/levers with tool-free reach and adjustable pad contact
Custom Fox RP2BV rear shock features position-sensitive Boost Valve damping for great square edge bump performance
Custom DT Swiss E4405 26mm wide rims and Competition stainless steel spokes for strength without the weight penalty
Specialized Command Post 3-position adjustable-height seatpost with remote lever for on-the-fly changes to riding stance
RockShox Lyrik IS 2-Step 115/160mm-travel fork with 20mm Maxle thru-axle features external rebound and compression adjust for pitch-perfect descents
Front wheel spins on a 20mm thru-axle variable flange hub for a superb combination of strength and weight, with a DT Swiss 330SL disc-ready freehub in the rear

Technical Specifications

FRAMESET

FRAME

Enduro M5 alloy, fully manipulated frame w/ ORE TT and DT, forged HT, sealed cartridge bearing pivots, ISCG mount, replaceable derailleur hanger, 160mm travel

HEADSET

1-1/8 and 1.5"" Threadless, Campy style upper with 1.5"" lower cartridge bearing

SEAT BINDER

7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black

SUSPENSION

REAR SHOCK

Fox RP2BV with Boost Valve for Enduro. Ext reb and ProPedal adj.

FORK

RockShox Lyrik IS 2-step, 115/160mm travel, tapered alloy steer, rebound and compression adj.

WHEELS

RIMS

Custom DT Swiss E440S, 26mm, sleeved w/eyelets, 32h

FRONT HUB

Hi-Lo disc, 20mm thru-axle, 32h

REAR HUB

Custom DT Swiss 330SL w/ alloy freehub, DT RWS QR, 32h

SPOKES

DT Swiss Competition 1.8/1.6mm stainless

FRONT TIRE

S-Works Eskar, 26x2.3"", 120 TPI, tubeless ready, aramid bead, dual compound

REAR TIRE

Specialized Eskar Control, 26x2.3"", 60 TPI, tubeless ready, aramid bead

INNER TUBES

Ultralight presta valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano M665-E, SLX, top swing, dual pull for double

REAR DERAILLEUR

SRAM X-0, 9-speed, mid cage

SHIFT LEVERS

SRAM X-9 aluminum trigger

CASSETTE

Shimano HG61, 9-speed, 11-34t

CHAIN

SRAM PC-971, 9-speed w/Power Link

CRANKSET

Custom Shimano FC-M762, 2pc., S22/A36 with Gamut shift guide, S: 170mm, others: 175mm

CHAINRINGS

S22/A36

BOTTOM BRACKET

Custom Shimano integrated

COCKPIT

SEATPOST

Specialized Command Post, 3 position, 100mm Adjustable height, Remote Operated, Single bolt head

STEM

3D forged alloy, adjustable rise, 31.8mm clamp

HANDLEBARS

Specialized Enduro mid-rise bar, 7050 alloy, 31.8mm, 9 degree backsweep, 6 degree up, 680mm wide

GRIPS

Specialized waffle lock on grip (S/M) Specialized Thick lock on grip (L/XL)

SADDLE

Specialized Format, hollow Cr-Mo rails, SL foam, S/M: 130mm L/XL:143mm

BRAKES

FRONT BRAKE

Custom Avid Elixir R CR SL, alloy backed semi-met pads, alloy CR Elixir lever w/ pad contact adj & reach adj, 205mm rotor

REAR BRAKE

Custom Avid Elixir R CR SL, alloy backed semi-met pads, alloy CR Elixir lever w/ pad contact adj & reach adj, 185mm rotor

BRAKE LEVERS

Custom Avid Elixir CR SL Hydraulic, carbon lever blade, tool-less adj. reach and pad contact

ACCESSORIES

PEDALS

None

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL
Ground-Top	927mm	937mm	955mm	973mm
Bottom Bracket Height - Low Setting	350mm	350mm	350mm	350mm
Top Tube Length (Horizontal)	560mm	590mm	620mm	645mm
Head Tube Height	120mm	130mm	150mm	170mm
Head Tube Angle - Low Setting	66.5°	66.5°	66.5°	66.5°
Seat Tube Angle (Actual) - Low Setting	70.5°	70.5°	70.5°	70.5°
Seat Tube Angle (Effective) - Low Setting	75°	75°	75°	75°
Top Tube Length (Actual)	532mm	562mm	589mm	615mm
Seat Tube Length - Center to Top	420mm	444mm	467mm	520mm
Wheel Base	1120mm	1151mm	1185mm	1213mm
Standover Height	756mm	761mm	773mm	801mm
Stack	577mm	587mm	605mm	623mm
Reach	404mm	431mm	457mm	477mm
Chainstay Length	419mm	419mm	419mm	419mm
Crank Length	170mm	175mm	175mm	175mm
Handlebar Width	680mm	680mm	680mm	680mm
Stem Length	60mm	60mm	75mm	90mm
Seatpost Length	350mm	350mm	400mm	400mm
