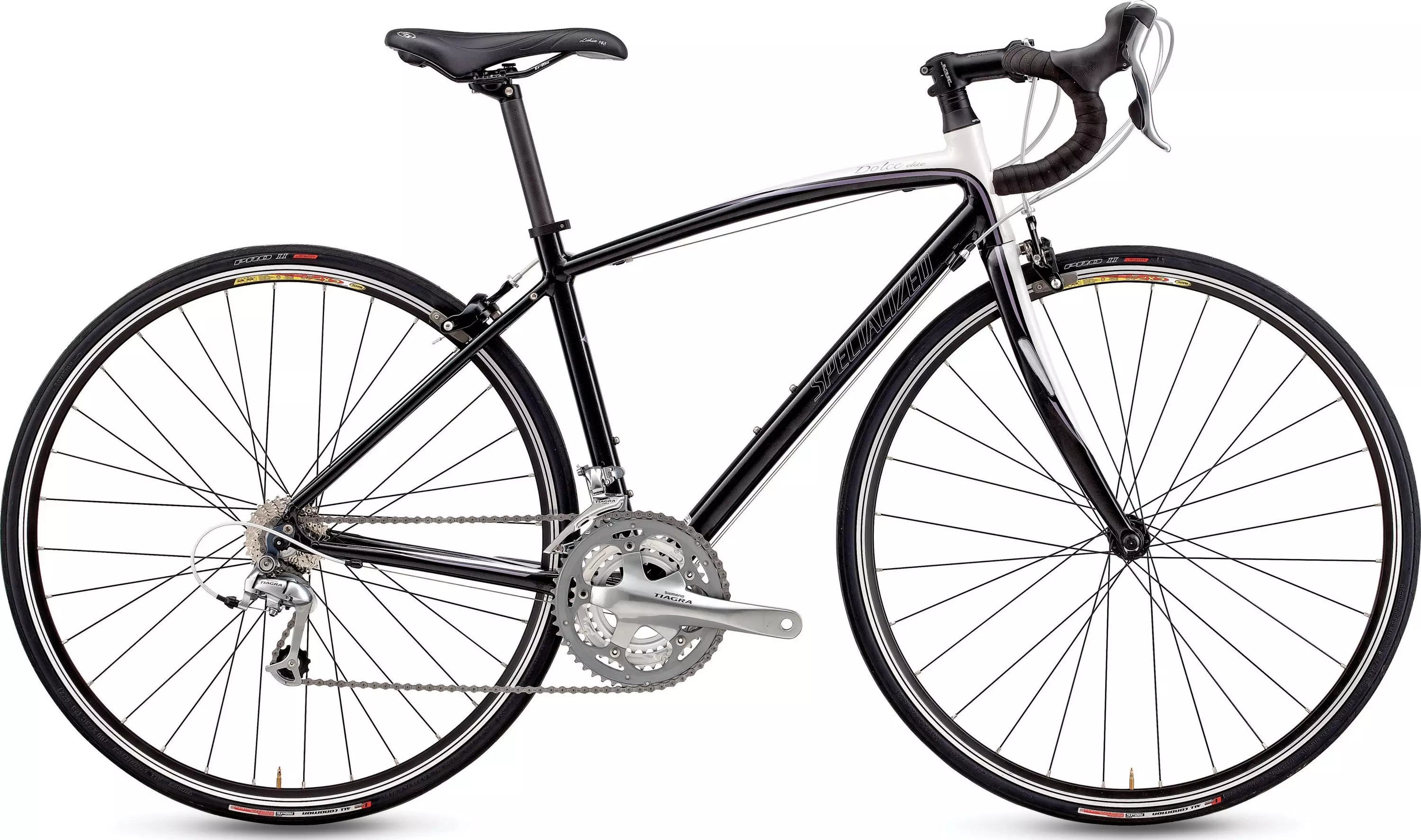

2010 Dolce Elite Triple
0 Reviews
Perfect for everyone from the social rider to the fitness trainer, the Dolce is designed…
Product Details
Perfect for everyone from the social rider to the fitness trainer, the Dolce is designed to fit the female cyclist's needs. Lightweight women's-specific tubing, endurance road geometry and confidence-inspiring components contribute to a bike that looks like a race machine, but feels stable and secure.
Adjustable 4-position stem with 31.8mm bar clamp for strength and versatile positioning
Body Geometry Lithia women's-specific saddle uses generous padding to deliver all-day comfort
Ultralight FACT carbon/alloy fork with Zertz inserts absorbs road vibration for a compliant ride
Ergonomic aluminum women's handlebars with short reach and short drop for a natural riding position
Smooth-welded women's A1 Premium Aluminum compact frame with recreational geometry for a lightweight and confident ride
Technical Specifications
FRAMESET
FRAME
Dolce A1 Premium aluminum, fully manipulated tubing, smooth weld women's compact design, integrated headset
FORK
Dolce carbon, alloy crown, carbon steerer, Zertz inserts
HEADSET
Cage bearings integrated HS. w/ 20mm cone spacer and 20mm of flat spacers w/ top cap
SEAT BINDER
Alloy, 31.8mm
WHEELS
REAR HUB
Forged alloy, sealed, cassette, QR, 32h
SPOKES
Stainless 14g
FRONT TIRE
Specialized All Condition Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
REAR TIRE
Specialized All Condition Pro II, 700x23c, aramid bead, 120TPI, w/ Flak Jacket protection
INNER TUBES
Standard presta valve
RIMS
Mavic CXP-22 S, aluminum triple-wall, sleeve joint, CNC machined sidewalls, w/ eyelets
FRONT HUB
Forged alloy, sealed, 28h for J bend round spokes
DRIVETRAIN
FRONT DERAILLEUR
Shimano Tiagra
REAR DERAILLEUR
Shimano Tiagra
SHIFT LEVERS
Shimano Tiagra STI, flight deck compatible
CASSETTE
Shimano HG-50, 9-speed, 12-25t
CHAIN
HG-73
CRANKSET
Shimano Tiagra
CHAINRINGS
50 x 39 x 30T
BOTTOM BRACKET
With Crankset
COCKPIT
STEM
Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS
Specialized Women's Comp Ergo, 6061 alloy
TAPE
Specialized S-Wrap, cork ribbon w/ 2.5 gel pads
SADDLE
Body Geometry women's Lithia w/ hollow Cr-Mo rails
SEATPOST
Carbon wrapped, two-bolt clamp, 27.2mm
BRAKES
FRONT BRAKE
Tektro cold-forged, dual pivot w/ cartridge pads
REAR BRAKE
Tektro cold-forged, dual pivot w/ cartridge pads
BRAKE LEVERS
Shimano Tiagra STI, flight deck compatible
ACCESSORIES
PEDALS
Silver cage/black body, w/ black toe clips and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 44 | 48 | 51 | 54 | 57 | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 75.75° | 75.75° | 75.5° | 74° | 73.5° |
| Head-Tube Length | 120mm | 130mm | 140mm | 165mm | 190mm |
| Seat-Post Length | 300mm | 300mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 70.25° | 71.25° | 71.5° | 72° | 72° |
| Chain-Stay Length | 412mm | 415mm | 415mm | 415mm | 417mm |
| Top-Tube Length, Horizontal | 498mm | 506mm | 515mm | 532mm | 556mm |
| Front-Center | 575mm | 579mm | 585mm | 583mm | 604mm |
| Handle-Bar Width | 380mm | 380mm | 400mm | 400mm | 420mm |
| Stand-Over Height | 692mm | 705mm | 731mm | 758mm | 788mm |
| Seat-Tube Length, B-B Center to Top | 385mm | 415mm | 445mm | 480mm | 510mm |
| Fork Rake | 51mm | 51mm | 51mm | 49mm | 49mm |
| B-B Drop | 73mm | 73mm | 73mm | 73mm | 71.5mm |
| Trail | 68mm | 62mm | 60mm | 59mm | 59mm |
| Wheelbase | 976mm | 983mm | 989mm | 987mm | 1010mm |
| Crank Length | 165mm | 165mm | 170mm | 170mm | 175mm |
| Stem Length | 75mm | 75mm | 90mm | 100mm | 100mm |
