2014 CruX E5 Frameset

0 Reviews

The CruX E5 is a 'cross beast, with race-optimised geometry, OSBB, tapered headtube,…

Product Details

The CruX E5 is a 'cross beast, with race-optimised geometry, OSBB, tapered headtube, internal cable routing, and an outstanding stiffness-to-weight ratio. Build it up with the spec of your choice.

E5 Premium Aluminium canti frameset, designed for the demands of 'cross racing, with OSBB and carbon-like stiffness and handling for the most demanding cross course
E5 Premium Aluminium canti frameset, designed for the demands of 'cross racing, with OSBB and carbon-like stiffness and handling for the most demanding cross course

Technical Specifications

FRAMESET

FRAME

Specialized E5 Premium Aluminium, canti-specific, fully manipulated tubing, semi-compact race design, shaped toptube, 1-3/8" lower bearing, internal cable routing, integrated headset, OSBB

SUSPENSION

FORK

Specialized FACT carbon, canti-specific monocoque fork, carbon steerer and crown for 1-3/8" lower bearing

DRIVETRAIN

BOTTOM BRACKET

OS integrated, sealed bearings

COCKPIT

HEADSET

1-1/8" upper and 1-3/8" lower integrated sealed Cr-Mo cartridge bearings, 20mm alloy cone spacer, w/ 20mm of spacers

SEATPOST

Specialized Sport, alloy, 27.2mm

SEAT BINDER

Alloy, w/ brake stop, 32.6mm

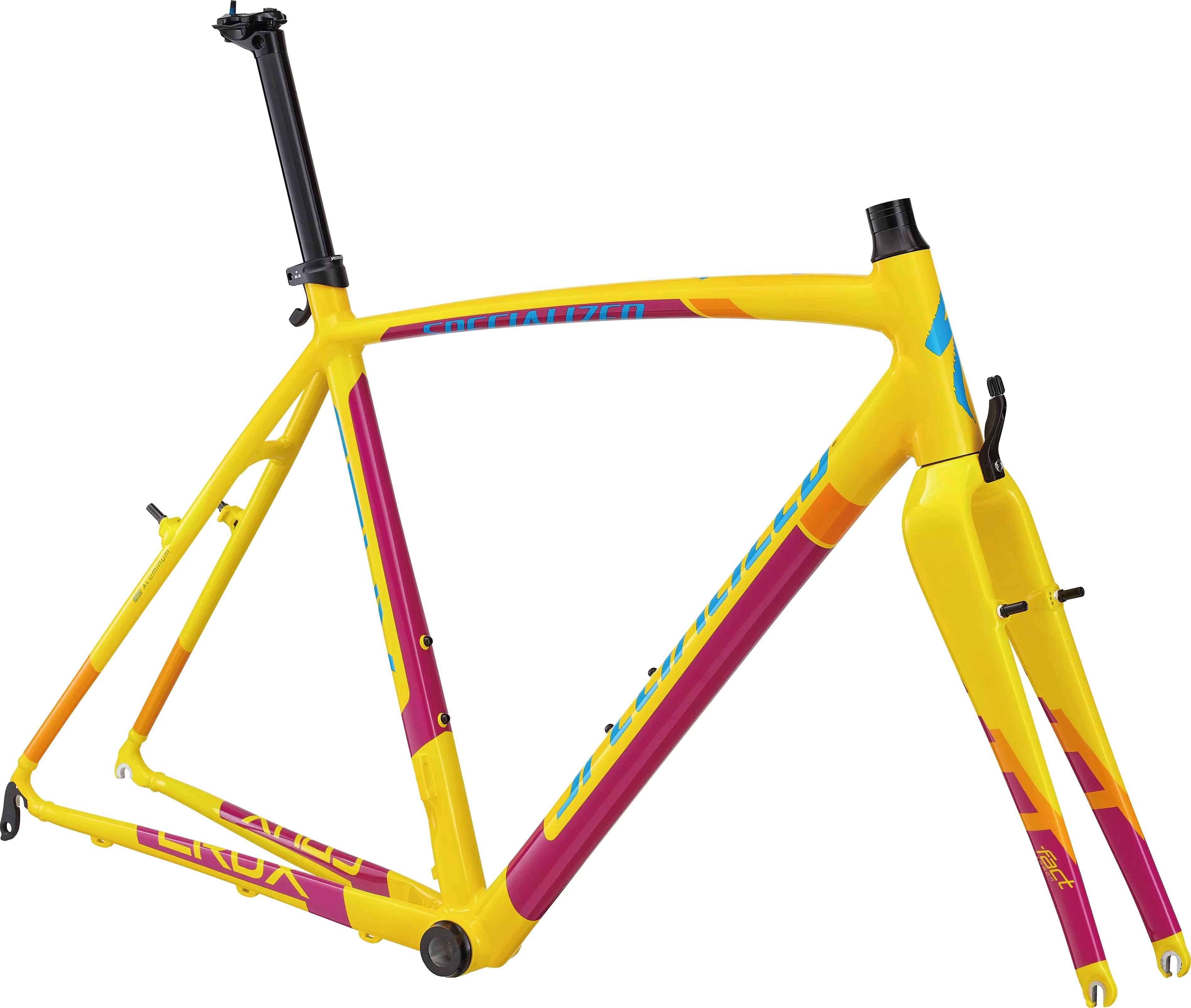

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	460.0	490.0	520.0	540.0	560.0	580.0	610.0
Seat-Tube Angle	75.5°	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	100mm	115mm	125mm	140mm	155mm	170mm	190mm
Seat-Post Length	300mm	300mm	300mm	350mm	350mm	350mm	350mm
Head-Tube Angle	69.5°	70.5°	71.5°	71.5°	72°	72.5°	73°
Chain-Stay Length	425mm	425mm	425mm	425mm	425mm	425mm	425mm
Top-Tube Length, Horizontal	510mm	516mm	536mm	549mm	560mm	570mm	586mm
Front-Center	593mm	595mm	595mm	601mm	606mm	609mm	615mm
Handle-Bar Width	400mm	400mm	420mm	420mm	420mm	440mm	440mm
Stand-Over Height	764mm	782mm	795mm	809mm	825mm	841mm	862mm
Seat-Tube Length, B-B Center to Top	460mm	490mm	520mm	540mm	560mm	580mm	610mm
Fork Rake	51mm	51mm	51mm	49mm	49mm	49mm	49mm
B-B Drop	71mm	71mm	71mm	69mm	69mm	67mm	67mm
Stack	522mm	540mm	554mm	566mm	583mm	597mm	618mm
Reach	366mm	370mm	375mm	379mm	384mm	387mm	392mm
Trail	78mm	72mm	65mm	67mm	64mm	61mm	57mm
Wheelbase	1008mm	1009mm	1009mm	1016mm	1022mm	1025mm	1031mm
Crank Length	170mm	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Stem Length	75mm	75mm	90mm	100mm	100mm	110mm	110mm
