2012 Camber Expert
0 Reviews
The M5 alloy 120mm-travel Camber Expert features a RockShox Reba RL fork and custom…
Product Details

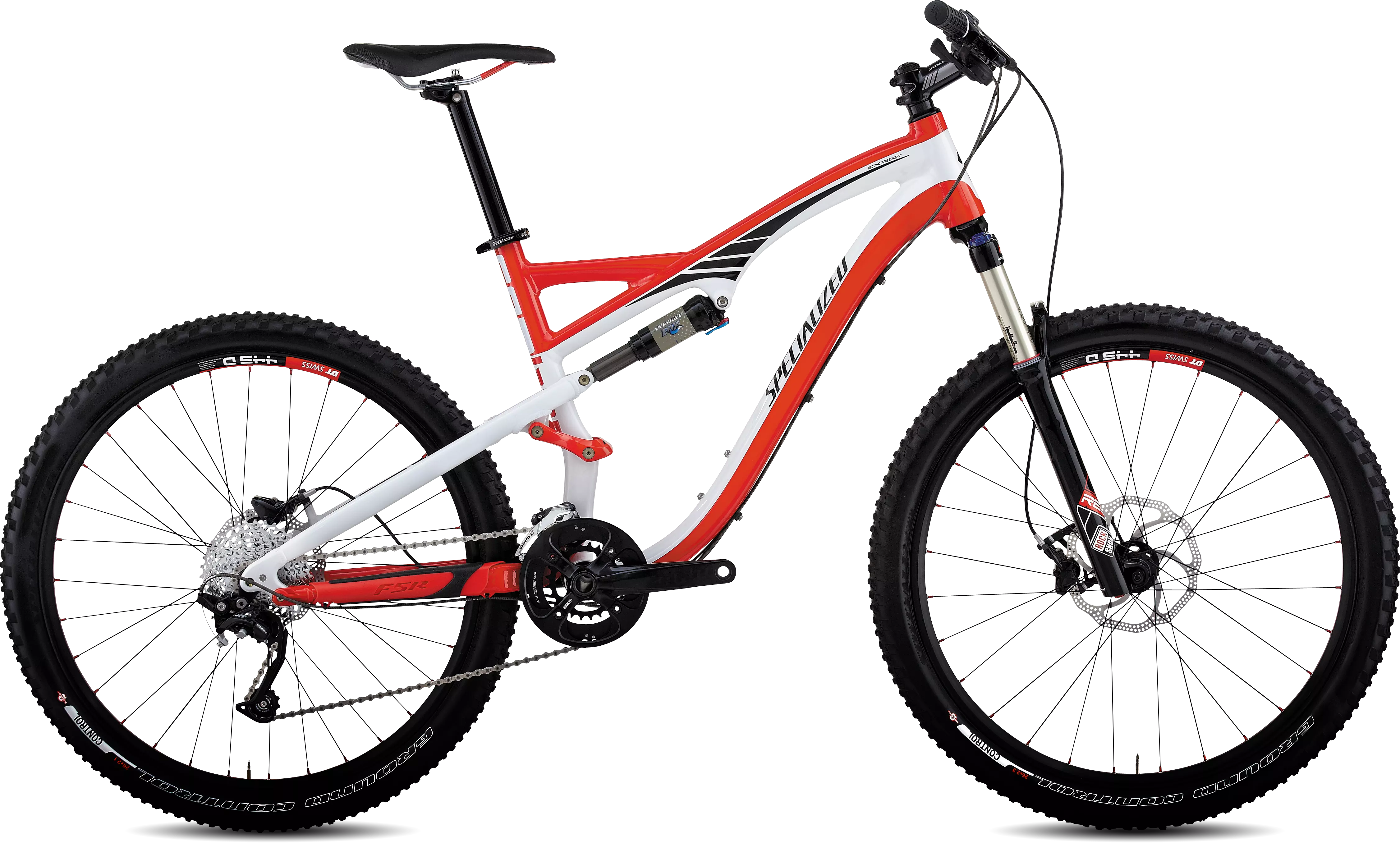

The M5 alloy 120mm-travel Camber Expert features a RockShox Reba RL fork and custom SRAM S-1250, 10-speed XC Trail double crankset for an ultra-capable and smooth-pedalling trail charger.
Body Geometry Henge Comp saddle with hollow Cr-Mo rails and foam tuned for all-day riding comfort
Body Geometry Henge Comp saddle with hollow Cr-Mo rails and foam tuned for all-day riding comfort
M5 hydroformed alloy FSR frame with 120mm of travel, tapered HT, 142mm dropouts, and sealed cartridge bearing pivots for confident handling and smooth trail performance
RockShox Reba RL fork has 100mm of travel, lockout and rebound adjust, and an alloy steerer for efficient and supple trail performance
Body Geometry Henge Comp saddle with hollow Cr-Mo rails and foam tuned for all-day riding comfort
Custom SRAM 10-speed XC Trail double-ring shifts fast while the PF30 spindle makes for an efficient and stiff crankset
Body Geometry Henge Comp saddle with hollow Cr-Mo rails and foam tuned for all-day riding comfort
Technical Specifications
FRAMESET
FRAME
M5 hydroformed tubing, tapered HT, PF30 BB, Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, bolt-on cable guides, 120mm travel
HEADSET
1-1/8" upper and lower, Campy-style cartridge bearings for integrated alloy HT
SEAT BINDER
34.9mm clamp ID, alloy collar w/ QR, black
SUSPENSION
REAR SHOCK
Custom Fox Triad II, custom on-the-fly 3-position compression switch 1) Lock out 2) Open 3) ProPedal, rebound adj., 200x51mm
FORK
RockShox Reba RL, tapered alloy steerer, LO and reb adj., standard drop-outs, 120mm travel
WHEELS
RIMS
Custom DT Swiss 445D, alloy disc, double-wall, pin joint, eyelets, 24mm, 28/32h
FRONT HUB
Specialized Hi Lo disc, laser-etched logo, OS 28 end caps, sealed cartridge bearing, RWS, 28h
REAR HUB
Specialized Hi Lo 142+ disc, laser-etched logo, double-sealed cartridge bearing, 12mm thru-axle, 32h
SPOKES
Stainless, 1.8mm (15g)
FRONT TYRE
S-Works Ground Control, 120 TPI, 2Bliss ready aramid bead, 26x2.3"
REAR TYRE
Specialized Ground Control, 60 TPI, 2Bliss ready aramid bead, 26x2.1"
INNER TUBES
Ultralight presta valve
DRIVETRAIN
FRONT DERAILLEUR
SRAM X7, 10-speed, S3 direct mount for DMD, top-pull
REAR DERAILLEUR
Shimano Deore XT Shadow M772, 9-speed, SGS long cage
SHIFT LEVERS
Shimano SLX M660, 10-speed, trigger
CASSETTE
SRAM PG-1030, 10-speed, 11-36t
CHAIN
KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates
CRANKSET
Custom SRAM S-1250, 10-speed XC Trail double, PF30 spindle, S: 170mm, Others: 175mm
CHAINRINGS
38/24, w/ alloy guard
BOTTOM BRACKET
SRAM PF30, OS press-in bearing, sealed cartridge
COCKPIT
SEATPOST
6061 alloy, 2-bolt micro adjust, setback head, 30.9mm, S/M:350mm, others:400mm
STEM
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise, S: 60mm, M: 75, L:90, XL:105mm
HANDLEBARS
Specialized All-Mountain low-rise, 6061 butted alloy, 720mm wide, 8º backsweep, 6º upsweep, 31.8mm
GRIPS
Specialized lock-on, S/M: Grappler, Others: Grappler XL
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm width
BRAKES
FRONT BRAKE
Custom Avid Elixir 5 SL, hydraulic disc, alloy backed organic pad, HS-1 rotor S/M:180mm, Others: 200mm
REAR BRAKE
Custom Avid Elixir 5 SL, hydraulic disc, alloy backed organic pad, HS-1 rotor S/M:160mm, Others: 180mm
BRAKE LEVERS
Avid Elixir 5 hydraulic
ACCESSORIES
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Ground-Top | 896mm | 914mm | 924mm | 933mm |
| Bottom Bracket Height - Low Setting | 335mm | 335mm | 335mm | 335mm |
| Top Tube Length (Horizontal) | 556mm | 590mm | 625mm | 645mm |
| Head Tube Height | 120mm | 140mm | 150mm | 160mm |
| Head Tube Angle - Low Setting | 68.5° | 68.5° | 68.5° | 68.5° |
| Seat Tube Angle (Actual) - Low Setting | 71° | 71° | 71° | 71° |
| Seat Tube Angle (Effective) - Low Setting | 74.5° | 74.5° | 74.5° | 74.5° |
| Top Tube Length (Actual) | 531mm | 561mm | 590mm | 608mm |
| Seat Tube Length - Center to Top | 394mm | 445mm | 483mm | 534mm |
| Wheel Base | 1082mm | 1118mm | 1154mm | 1175mm |
| Standover Height | 744mm | 750mm | 764mm | 769mm |
| Stack | 561mm | 579mm | 589mm | 598mm |
| Reach | 401mm | 429mm | 462mm | 479mm |
| Chainstay Length | 420mm | 420mm | 420mm | 420mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 680mm | 680mm | 680mm | 680mm |
| Stem Length | 75mm | 90mm | 105mm | 105mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm |
