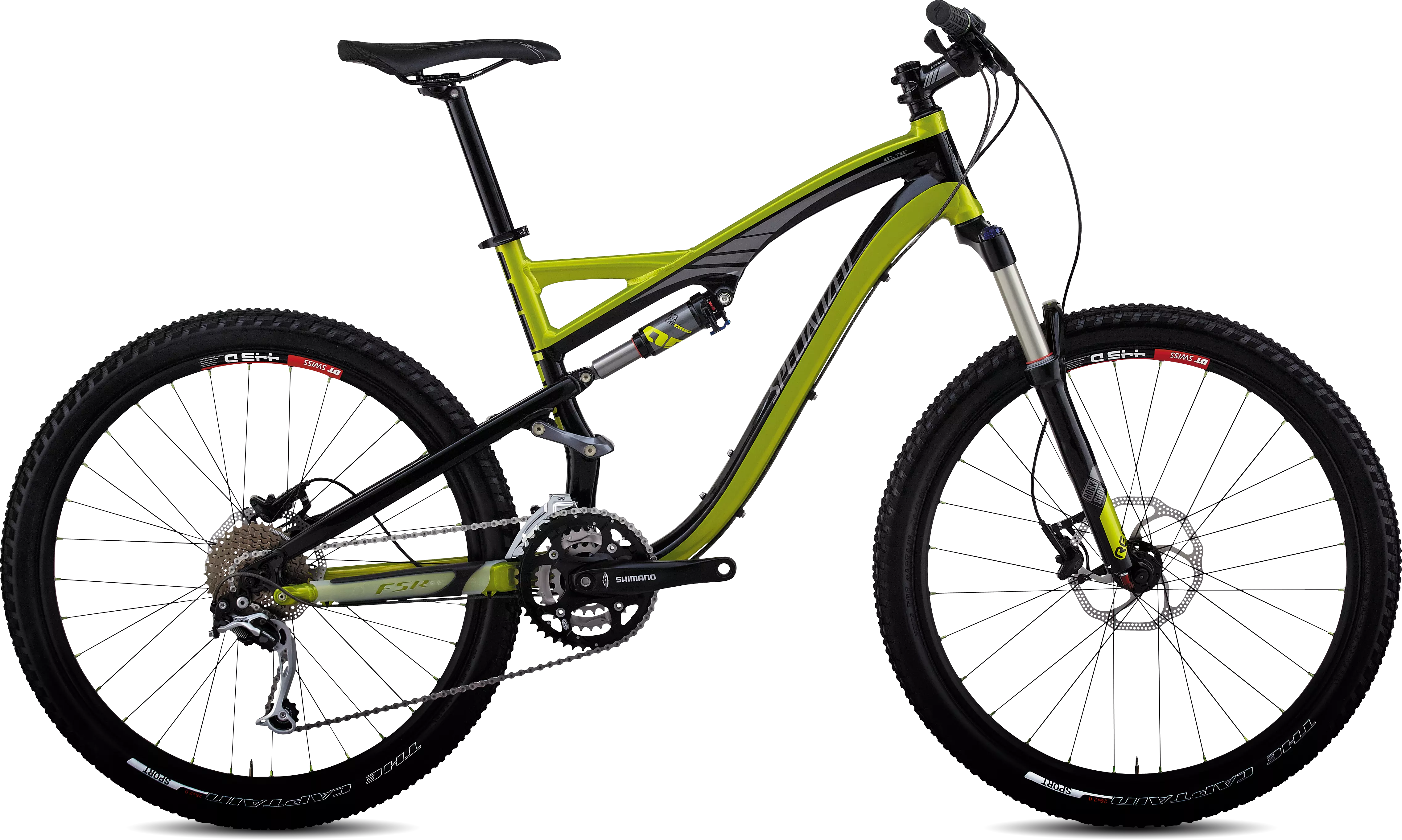

2012 Camber Elite
0 Reviews
The 120mm-travel Camber Elite features a RockShox Ario RL shock, custom Avid Elixir…
Product Details
The 120mm-travel Camber Elite features a RockShox Ario RL shock, custom Avid Elixir 3 R SL hydraulic disc brakes and a Shimano Deore XT Shadow rear derailleur for value-packed trail performance.
Shimano Deore XT Shadow rear derailleur delivers top-of-the-line shifting performance and a low-profile design for maximum clearance
Responsive RockShox Recon Gold TK air-sprung fork with 120mm of travel uses external adjustable rebound, Turn Key damping, and lockout for fine-tuned bump performance
M4 hydroformed alloy FSR frame with 120mm of travel and sealed cartridge bearing pivots for confident handling and smooth trail performance
M4 hydroformed alloy FSR frame with 120mm of travel and sealed cartridge bearing pivots for confident handling and smooth trail performance
Custom Elixir 3 R SL brakes have lightweight alloy-backed pads, a tool-less reach adjustment and HS-1 rotors
M4 hydroformed alloy FSR frame with 120mm of travel and sealed cartridge bearing pivots for confident handling and smooth trail performance
Technical Specifications
FRAMESET
FRAME
M4 hydroformed tubing, Command Post routing, 135mm dropouts, sealed cartridge bearing pivots, disc only, replaceable derailleur hanger, bolt-on cable guides, 120mm travel
HEADSET
1-1/8" upper and lower, Campy-style cartridge bearings for integrated alloy HT
SEAT BINDER
34.9mm clamp ID, 7050 hard anodized alloy collar w/ QR, black
SUSPENSION
REAR SHOCK
RockShox Ario RL, air spring, rebound adj. and LO, 200x51mm
FORK
RockShox Recon Gold TK, TurnKey damper, Solo Air, alloy steerer, LO and reb adj., disc only, 120mm travel
WHEELS
RIMS
Custom DT Swiss 445D, alloy disc, double-wall, pin joint, eyelets, 24mm, 28/32h
FRONT HUB
Specialized Hi Lo disc, loose ball, machined disc, QR, 28h
REAR HUB
Specialized Hi Lo disc, double-sealed cartridge bearing, QR, 32h
SPOKES
Stainless, 1.8mm (15g)
FRONT TYRE
Specialized The Captain Sport, 60 TPI, wire bead, 26x2.0"
REAR TYRE
Specialized The Captain Sport, 60 TPI, wire bead, 26x2.0"
INNER TUBES
Ultralight presta valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano SLX M660E, E-type for DMD, top-swing, bottom-pull
REAR DERAILLEUR
Shimano Deore XT Shadow M772, 9-speed, SGS long cage
SHIFT LEVERS
Shimano Alivio M430, 9-speed, trigger
CASSETTE
Shimano 9-speed HG20, 11-34t,
CHAIN
KMC X-9, 9-speed, reusable Missing Link
CRANKSET
Shimano Hollowtech, Octalink spline, replaceable rings, S: 170mm, Others: 175mm
CHAINRINGS
44/32/22
BOTTOM BRACKET
Shimano, Octalink spline, cartridge bearing, 73mm
COCKPIT
SEATPOST
6061 alloy, 2-bolt micro adjust, setback head, 30.9mm, S/M:350mm, others:400mm
STEM
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise, S: 60mm, M: 75, L:90, XL:105mm
HANDLEBARS
Specialized All-Mountain low-rise, 6061 butted alloy, 720mm wide, 8º backsweep, 6º upsweep, 31.8mm
GRIPS
Specialized lock-on, S/M: Grappler, Others: Grappler XL
SADDLE
Specialized Body Geometry Riva, 143mm width
BRAKES
FRONT BRAKE
Custom Avid Elixir 3 R SL, tool-less reach adj., alloy backed organic pad, HS-1 rotor, S/M:180mm rotor, Others: 200mm rotor
REAR BRAKE
Custom Avid Elixir 3 R SL, tool-less reach adj., alloy backed organic pad, HS-1 rotor, S/M:160mm rotor, Others: 180mm rotor
BRAKE LEVERS
Custom Avid Elixir 3 SLR hydraulic, tool-less reach adj.
ACCESSORIES
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Ground-Top | 896mm | 914mm | 924mm | 933mm |
| Bottom Bracket Height - Low Setting | 335mm | 335mm | 335mm | 335mm |
| Top Tube Length (Horizontal) | 556mm | 590mm | 625mm | 645mm |
| Head Tube Height | 120mm | 140mm | 150mm | 160mm |
| Head Tube Angle - Low Setting | 68.5° | 68.5° | 68.5° | 68.5° |
| Seat Tube Angle (Actual) - Low Setting | 71° | 71° | 71° | 71° |
| Seat Tube Angle (Effective) - Low Setting | 74.5° | 74.5° | 74.5° | 74.5° |
| Top Tube Length (Actual) | 531mm | 561mm | 590mm | 608mm |
| Seat Tube Length - Center to Top | 394mm | 445mm | 483mm | 534mm |
| Wheel Base | 1082mm | 1118mm | 1154mm | 1175mm |
| Standover Height | 744mm | 750mm | 764mm | 769mm |
| Stack | 561mm | 579mm | 589mm | 598mm |
| Reach | 401mm | 429mm | 462mm | 479mm |
| Chainstay Length | 420mm | 420mm | 420mm | 420mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 680mm | 680mm | 680mm | 680mm |
| Stem Length | 75mm | 90mm | 105mm | 105mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm |
