2014 Camber Comp Carbon
0 Reviews
The carbon fibre Camber FSR Comp Carbon has 110mm of front-and-rear travel, features…
Colour:
Satin Carbon
What's my size?
Select a Size
Product Details

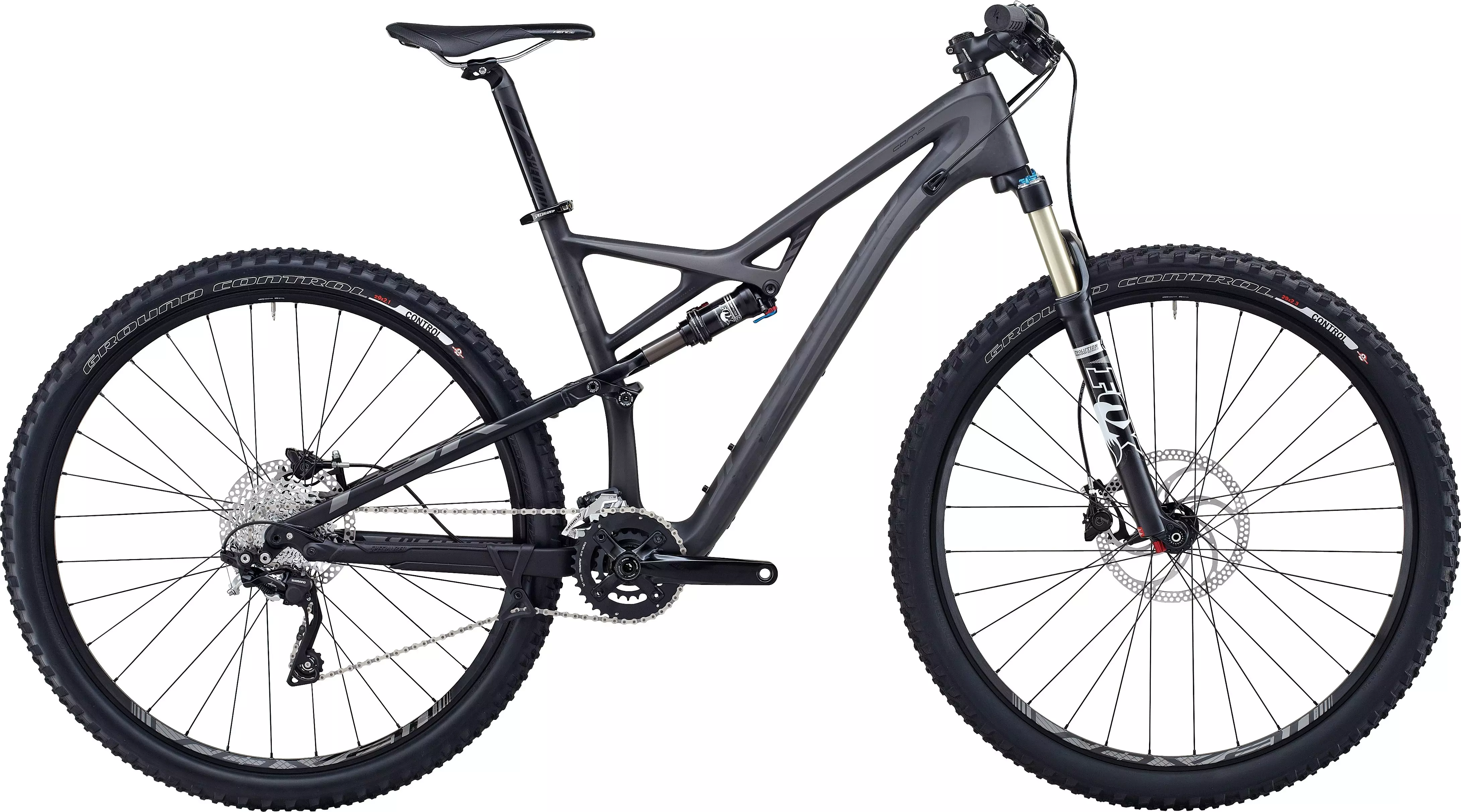

The carbon fibre Camber FSR Comp Carbon has 110mm of front-and-rear travel, features a FOX Float CTD Evolution Series 29 fork, open-bath damper, tapered steerer fork, and Formula C1, hydraulic disc brakes for tackling any trail.
New FACT 9m FSR frame with 29er-specific geometry has 110mm of travel, 142+ dropouts, an all-new concentric sealed-cartridge bearing shock link and features internal cable routing for the Command Post IR to create a lightweight and responsive trail weapon
New FACT 9m FSR frame with 29er-specific geometry has 110mm of travel, 142+ dropouts, an all-new concentric sealed-cartridge bearing shock link and features internal cable routing for the Command Post IR to create a lightweight and responsive trail weapon
Custom Formula C1 Racing brakes provide great braking power and modulation, while the Specialized Ground Control tyres maintain traction and roll fast
New FACT 9m FSR frame with 29er-specific geometry has 110mm of travel, 142+ dropouts, an all-new concentric sealed-cartridge bearing shock link and features internal cable routing for the Command Post IR to create a lightweight and responsive trail weapon
Shimano XT Shadow Plus long cage, 10-speed rear derailleur is tough, lightweight, and delivers pinpoint shifts
Custom-tuned FOX Float CTD Evolution shock with AUTOSAG features three compression settings: Climb, Trail and Descend
New FACT 9m FSR frame with 29er-specific geometry has 110mm of travel, 142+ dropouts, an all-new concentric sealed-cartridge bearing shock link and features internal cable routing for the Command Post IR to create a lightweight and responsive trail weapon
Technical Specifications
FRAMESET
FRAME
FACT 9m carbon front triangle, 29" geometry, FACT TM construction, M5 rear triangle, tapered headtube, carbon PF30 BB, full internal shift/brake/post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 110mm travel
SWAT
Bottle cage w/ SWAT Technology compatible (not included)
HEADSET
1-1/8 and 1-1/2" threadless, Hella Flush style upper with 1-1/2" lower, cartridge bearings
SEAT BINDER
7050 hard anodised alloy collar, QR, 34.9mm
SUSPENSION
REAR SHOCK
Custom FOX Float CTD Evolution, w/ AUTOSAG, Climb, Trail, Descend settings, reb adj., 197x48mm
FORK
FOX Float CTD Evolution 29, air spring, tapered steerer, Climb, Trail, Descend settings and reb adj., 15mm thru-axle, 110mm travel
WHEELS
RIMS
Roval 29, alloy disc, 26mm wide, 32h
FRONT HUB
Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h
REAR HUB
Specialized disc, 4x-sealed cartridge bearings, 12mm thru-axle, 142mm spacing, 32h
SPOKES
DT Industry Stainless, 3X front/rear 2.0 PG
FRONT TYRE
Specialized Ground Control, 2Bliss Ready, 29x2.3", foldable aramid bead, 60TPI
REAR TYRE
Specialized Ground Control, 2Bliss Ready, 29x2.1", foldable aramid bead, 60 TPI
DRIVETRAIN
FRONT DERAILLEUR
SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull
REAR DERAILLEUR
Shimano XT Shadow Plus, 10-speed, SGS long cage
SHIFT LEVERS
Shimano SLX, 10-speed, trigger
CASSETTE
SRAM PG-1030, 10-speed, 11-36
CHAIN
SRAM PC 1031, 10-speed, PowerLink
CRANKSET
Custom SRAM S-1250, 10-speed Trail double, PF30 spindle, S: 170mm, Others: 175mm
CHAINRINGS
36/22, w/ alloy guard
BOTTOM BRACKET
SRAM PF30, OS press-in bearings, sealed cartridge
COCKPIT
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized 2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, Others: 400mm
STEM
Specialized Trail, 6061 alloy, 4-bolt, 8-degree rise, 6-degree rise, 31.8mm clamp
HANDLEBARS
Specialized XC Mini-Riser, 6000 butted alloy, 720mm wide, 10mm rise, 8-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
BRAKES
FRONT BRAKE
Formula C1, alloy calliper, metallic pad, S/M: 180mm, L/XL: 200mm rotor
REAR BRAKE
Formula C1, alloy calliper, metallic pad, S/M: 160mm, L/XL: 180mm rotor
BRAKE LEVERS
Formula C1, hydraulic disc, tooled reach adj.
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Bottom Bracket Height - Low Setting | 335mm | 335mm | 335mm | 335mm |
| Top Tube Length (Horizontal) | 555mm | 587mm | 612mm | 642mm |
| Head Tube Height | 90mm | 100mm | 125mm | 150mm |
| Head Tube Angle - Low Setting | 70° | 70° | 70° | 70° |
| Seat Tube Angle (Actual) - Low Setting | 70° | 70° | 70° | 70° |
| Seat Tube Angle (Effective) - Low Setting | 75° | 74.8° | 74.5° | 74.2° |
| Top Tube Length (Actual) | 535mm | 562mm | 589mm | 621mm |
| Seat Tube Length - Center to Top | 394mm | 430mm | 468mm | 523mm |
| Wheel Base | 1100mm | 1131mm | 1156mm | 1186mm |
| Standover Height | 740mm | 745mm | 749mm | 760mm |
| Stack | 591mm | 600mm | 624mm | 647mm |
| Reach | 400mm | 428mm | 445mm | 466mm |
| Chainstay Length | 450mm | 450mm | 450mm | 450mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 720mm | 720mm | 720mm | 720mm |
| Stem Length | 60mm | 75mm | 90mm | 100mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
