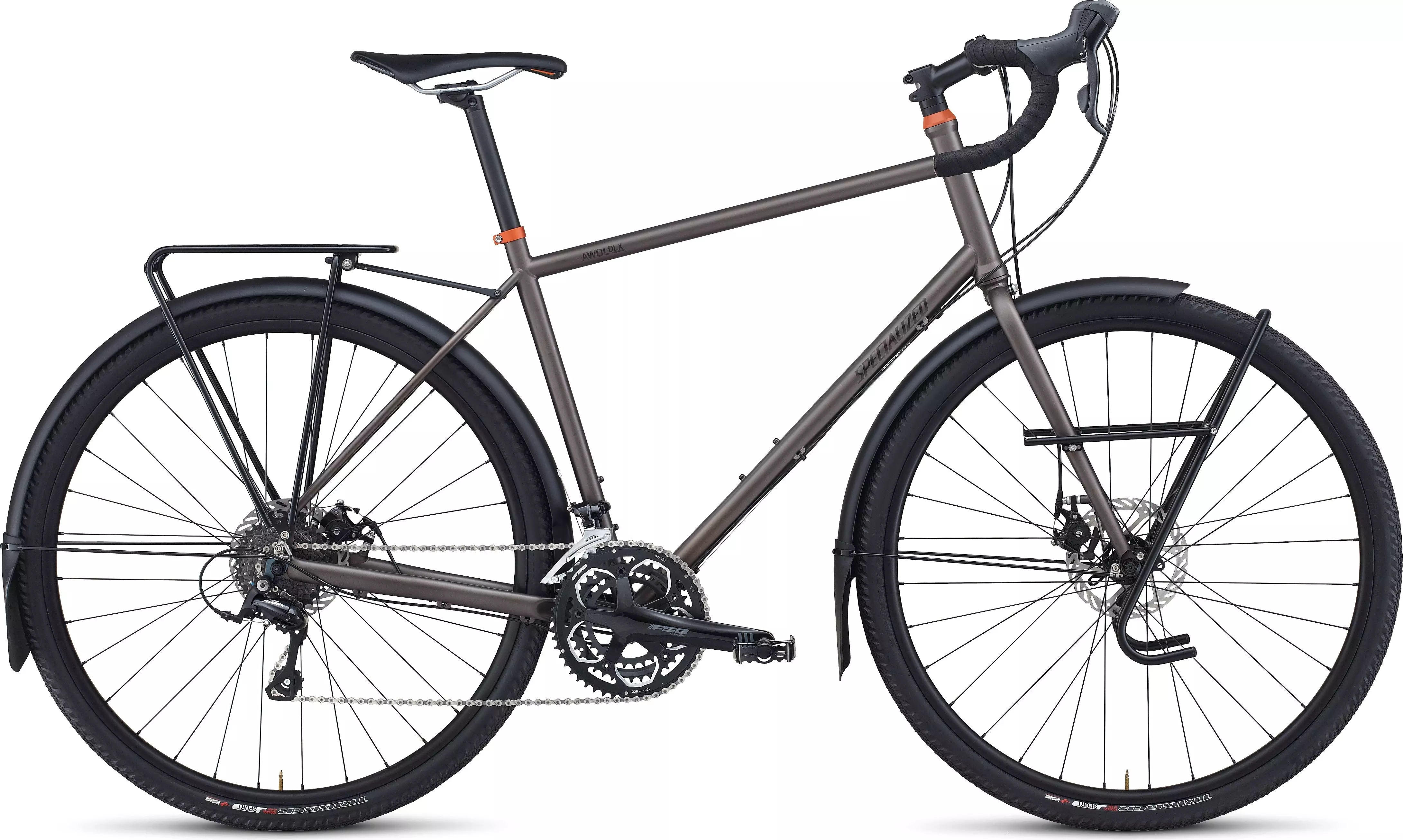

2014 AWOL Deluxe

0 Reviews

No matter the terrain or adventure, the AWOL is up to the task. The Cro-mo frame…

Colour:

Satin Tinted Raw / Orange

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

No matter the terrain or adventure, the AWOL is up to the task. The Cro-mo frame is plenty stiff with enough compliance for all day comfort and the integrated rack/mudguard mounts assure you have the option to always ride prepared.

Strong, light and compliant Cr-Mo frame provides all day comfort without sacrificing weight
Strong, light and compliant Cr-Mo frame provides all day comfort without sacrificing weight
Strong, light and compliant Cr-Mo frame provides all day comfort without sacrificing weight
Strong, light and compliant Cr-Mo frame provides all day comfort without sacrificing weight

Technical Specifications

FRAMESET

FRAME

Custom butted/formed Cr-Mo tubing

SUSPENSION

FORK

Specialized AWOL, Cr-Mo unicrown, w/ integrated cast dropouts

WHEELS

RIMS

Specialized Disc, alloy double-wall, 32h

FRONT HUB

Specialized disc, alloy, Hi Lo flange, RCC ball bearing system, steel axle, QR, 32h

REAR HUB

Specialized disc, alloy, Hi Lo flange, RCC ball bearing system, steel axle, steel cassette body, QR, 32h

SPOKES

Stainless, 14g

FRONT TYRE

Specialized Trigger Sport, 60TPI, wire bead, 700x42c

REAR TYRE

Specialized Trigger Sport, 60TPI, wire bead, 700x42c

INNER TUBES

Standard presta valve

COCKPIT

HANDLEBARS

Specialized AWOL, 6061 double-butted alloy, 12-degree flare-out, 31.8mm

STEM

3D forged alloy, 10-degree rise, 31.8mm

HEADSET

1-1/8" sealed Cr-Mo cartridge bearings integrated w/ headset, 15mm cone spacer

TAPE

Specialized Roubaix, w/ 2.5mm gel pads

SADDLE

Specialized AWOL, steel rails, 143mm

SEATPOST

Specialized alloy, 27.2mm, 350mm

SEAT BINDER

Specialized, forged alloy, stainless bolt, 29.8mm

DRIVETRAIN

SHIFT LEVERS

Shimano Sora STI

FRONT DERAILLEUR

Shimano Sora

REAR DERAILLEUR

Shimano Sora

CASSETTE

Shimano, 9-speed, 11-32

CRANKSET

FSA Omega, MegaExo, triple

CHAINRINGS

50/39/30

BOTTOM BRACKET

FSA MegaExo, integrated, w/ sealed outboard bearings

CHAIN

KMC X9

BRAKES

FRONT BRAKE

Avid BB7, mechanical disc, 160mm rotor

REAR BRAKE

Avid BB7, mechanical disc, 160mm rotor

BRAKE LEVERS

Shimano Sora STI

ACCESSORIES

PEDALS

Alloy, 1 pc. body, loose ball, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	SM	MD	LG	XL
Seat-Tube Angle	74°	73.5°	73°	72°
Head-Tube Length	160mm	185mm	210mm	235mm
Seat-Post Length	350mm	350mm	350mm	350mm
Head-Tube Angle	71°	72°	72°	72°
Chain-Stay Length	455mm	455mm	455mm	455mm
Top-Tube Length, Horizontal	555mm	575mm	600mm	625mm
Front-Center	622mm	626mm	646mm	659mm
Handle-Bar Width	400mm	420mm	440mm	460mm
Stand-Over Height	773.7mm	794.1mm	821.3mm	843.5mm
Seat-Tube Length, B-B Center to Top	475mm	495mm	525mm	550mm
Fork Rake	50mm	50mm	50mm	50mm
B-B Drop	70mm	70mm	70mm	70mm
Trail	71mm	64mm	64mm	64mm
Wheelbase	1067mm	1072mm	1092mm	1104mm
Crank Length	170mm	172.5mm	175mm	175mm
Stem Length	60mm	75mm	75mm	90mm
