Allez Comp

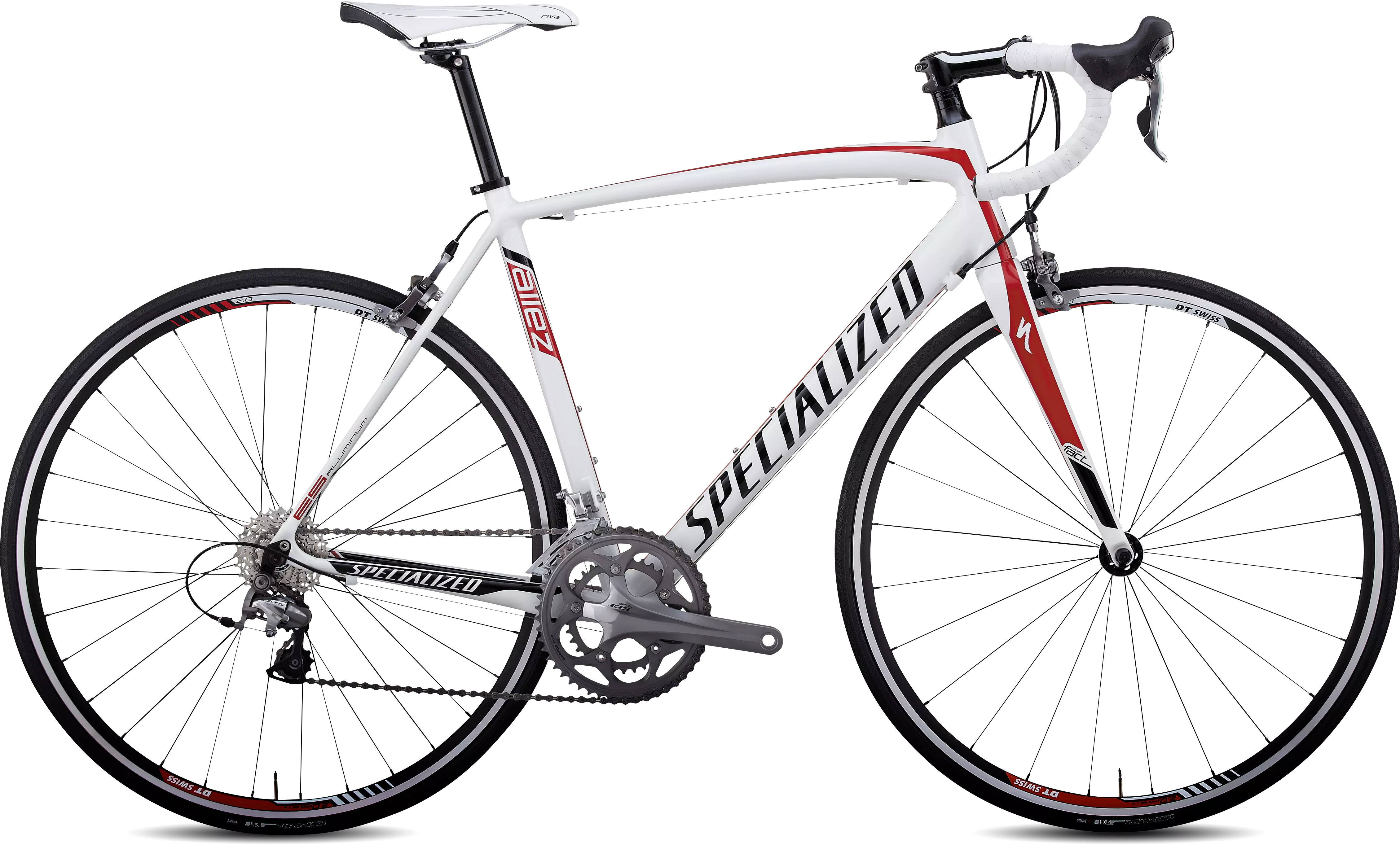

2012 Allez Comp

Stiff, light, race-inspired Allez Comp offers great acceleration and handling—perfect for aspiring racers, or as a winter training bike for more accomplished veterans. 10-speed Shimano 105 group and upgraded wheels give this bike race-ready performance.

Technical Specifications

FRAMESET

FRAME

Specialized E5 aluminium, fully manipulated tubing, smooth weld, compact race design, 1-1/2" lower bearing, integrated headset, threaded BB

SUSPENSION

FORK

Specialized FACT carbon legs, aluminium crown and steerer, 1-1/2" lower bearing

COCKPIT

HANDLEBARS

New Specialized Tarmac Comp, alloy

STEM

Specialized EliteSet, 3D forged alloy, 12-degree, 4-position adjustable, 4-bolt, 31.8mm clamp

HEADSET

1-1/8" upper and 1-1/2" lower Cr-Mo cartridge bearings integrated, w/ headset, 20mm cone spacer, w/ 20mm of spacers

TAPE

Specialized S-Wrap, w/ gel

SADDLE

Body Geometry Riva Road

SEATPOST

New Specialized Sport, alloy, 27.2mm

SEAT BINDER

Alloy, 31.8mm

WHEELS

FRONT WHEEL

DT Axis 2.0

REAR WHEEL

DT Axis 2.0

FRONT TYRE

Specialized Espoir Sport w/ double BlackBelt, 60 TPI, wire bead, 700x23c

REAR TYRE

Specialized Espoir Sport w/ double BlackBelt, 60 TPI, wire bead, 700x23c

INNER TUBES

Lightweight, presta

DRIVETRAIN

SHIFT LEVERS

Shimano 105 STI, 10-speed

FRONT DERAILLEUR

Shimano 105

REAR DERAILLEUR

Shimano 105

CASSETTE

Shimano 105, 10-speed, 11-28t

CRANKSET

Shimano 105 compact

CHAINRINGS

50/34

BOTTOM BRACKET

OS integrated, sealed bearings

CHAIN

New Shimano Tiagra 10-speed

BRAKES

FRONT BRAKE

Shimano 105

REAR BRAKE

Shimano 105

ACCESSORIES

PEDALS

Nylon flat test ride, loose ball, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49	52	54	56	58	61	64
Seat-Tube Angle	75.5°	74°	73.5°	73.25°	73°	72.5°	72.5°
Head-Tube Length	100mm	120mm	145mm	170mm	205mm	230mm	250mm
Seat-Post Length	300mm	300mm	350mm	350mm	350mm	350mm	350mm
Head-Tube Angle	72.25°	73°	73°	73.5°	73.5°	74°	74°
Chain-Stay Length	405mm	405mm	405mm	405mm	407mm	410mm	410mm
Top-Tube Length, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm	605mm
Front-Center	576mm	576mm	583mm	591mm	605mm	613mm	617mm
Handle-Bar Width	400mm	420mm	420mm	420mm	440mm	440mm	440mm
Stand-Over Height	737mm	777mm	798mm	816mm	836mm	863mm	892mm
Seat-Tube Length, B-B Center to Top	460mm	490mm	510mm	530mm	550mm	580mm	620mm
Fork Rake	45mm	45mm	45mm	43mm	43mm	43mm	43mm
B-B Drop	71.5mm	71.5mm	69mm	69mm	67.5mm	67.5mm	67.5mm
Stack	505mm	527mm	548mm	575mm	607mm	632mm	652mm
Reach	385mm	385mm	385mm	392mm	397mm	402mm	401mm
Trail	62mm	57mm	57mm	56mm	56mm	53mm	53mm
Wheelbase	970mm	970mm	978mm	986mm	1003mm	1013mm	1017mm
Crank Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm	175mm
Stem Length	75mm	90mm	100mm	100mm	110mm	110mm	120mm
