Here's where the gloves come off—the Turbo Levo Expert Carbon sheds serious weight…
Riders around the world have continually voted Specialized as the #1 brand in E-MTBs. With our unmatched power, refined delivery system, and seamless integration, our already legendary mountain bikes are truly something out of this world.

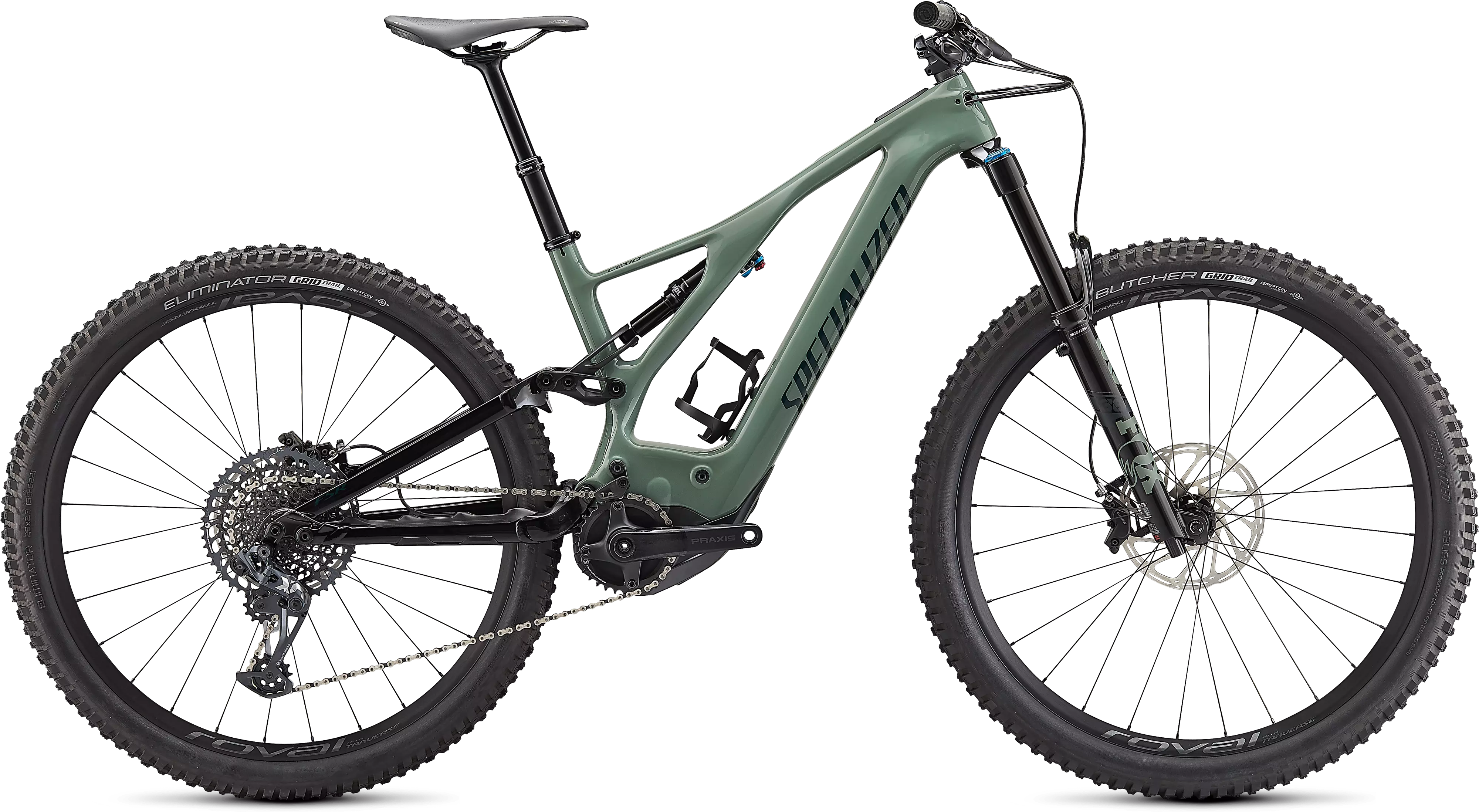

Here's where the gloves come off—the Turbo Levo Expert Carbon sheds serious weight with its advanced carbon front triangle and brings a high level of technical capability with a FOX 36 fork and DPS shock.
ROWDY DESCENTS. STEEP CLIMBS? HELL. YES.
The Turbo Levo is a fully-fledged progressive trail bike. We've lengthened the reach, kept the chainstays nice and short, and maintained a low center of gravity. Next, we slackened the head angle for more confident descents and steepened the seat angle to improve climbing efficiency. It's dialed.
MORE POWER, MORE RANGE
The Levo's Specialized 2.1 motor amplifies your pedaling input by a mind blowing 410%. Our M2 batteries provides you with plenty of range. What's more, our Mission Control App can handle battery management automatically, ensuring your battery will last as long as you need it to. More power. More miles per ride. More awesome.
• Carbon/M5 alloy Sidearm frame shed weight and adds control.
• Smoothest, most powerful motor on the market.
• 160mm travel Fox Float 36 Performance Elite fork.
The Levo Expert Carbon is all about delivering the best possible bang for your buck. Example? We shed serious weight by going with a carbon front triangle yet kept costs down with the addition of an M5 alloy rear end. That combination yields a bike that is not only light, but also stiff and responsive. We designed this bike to shred and that meant giving the Levo a low bottom bracket, lengthy top tube, and short chainstays. We also tweaked the kinematics of the frame to make the suspension more supple on small hits and yet perfectly capable of taking the big impacts without bottoming out.
The custom Specialized 2.1 motor represents the pinnacle of e-bike motor technology. The new motor is more efficient, 15% smaller, and 11% lighter than its predecessor. It has many other features that no other e-bike can touch, like instant engagement, fantastic heat management, a double freewheel design that disengages the gear box when you hit top speed, and silent, smooth, and consistent output—even at max power.
The Levo’s Turbo Connect Unit (or “TCU”) is more than an “On-Off” button—it’s the brains of the bike. The TCU shows your battery level and power-assist mode. It also communicates, via ANT+/Bluetooth®, with our optional handlebar display to display even more information about your day’s ride.
This Turbo’s new Specialized M2-series battery features a 700Wh capacity, which increases your range by a staggering 40%. We integrated that battery seamlessly inside the frame and made it easy to remove with a single hex wrench.
Motor
Specialized Turbo Full Power System 2.1 Motor
UI/Remote
Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized M2-700, integrated battery w/rock guard, 700Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Wiring Harness
Custom Specialized harness
Rims
Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready
Front Hub
Roval, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub
Roval DT Swiss 360, 3-pawl design, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Spokes
DT Swiss Competition Race
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
Inner Tubes
Standard, Presta valve
Rear Derailleur
Sram X01 Eagle, 12-speed
Shift Levers
SRAM XO1 Eagle trigger, 12-speed, single click
Cassette
Sram XG-1275, 12-speed, 10-52t
Chain
SRAM GX Eagle, 12-speed
Crankset
Praxis forged M30, custom offset
Chainrings
SRAM X-Sync Eagle, 104BCD, 32T, steel
Frame
FACT 9m Carbon w/ M5 alloy rear triangle, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, dropper post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
Fork
Fox Float 36 Performance Elite, Grip2 damper, 160mm, 51mm rake, HSC, LSC, HSR, LSR, Kabolt axle
Seat Binder
Specialized bolt-type, alloy, 38.6mm
Front Brake
SRAM Code RS, 4-piston caliper, hydraulic disc, S/M: 200mm, L/XL: 220mm
Rear Brake
SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
Rear Shock
Fox Float DPS Performance Elite, 3- position adjustment, 52.5x210mm, Rx Trail Tune
SeatPost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S: 125mm, M/L: 150mm, XL: 170mm
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Deity, Knuckleduster, Black
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Handlebars
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 165mm | 165mm | 165mm | 165mm |
| Seatpost Length | 361.5mm | 425.5mm | 425.5mm | 470.5mm |
| Handlebar Width | 780mm | 780mm | 780mm | 780mm |
| Stem Length | 40mm | 40mm | 50mm | 50mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm |
| Stack | 606mm | 606mm | 634mm | 647mm |
| Reach | 415mm | 435mm | 455mm | 480mm |
| Head Tube Length | 95mm | 95mm | 125mm | 140mm |
| Head Tube Angle | 66.04° | 66.04° | 66.04° | 66.04° |
| BB Height | 347.5mm | 347.5mm | 347.5mm | 347.5mm |
| BB Drop | 27mm | 27mm | 27mm | 27mm |
| Trail | 111mm | 111mm | 111mm | 111mm |
| Fork Length, Full | 560mm | 560mm | 560mm | 560mm |
| Fork Rake/Offset | 51mm | 51mm | 51mm | 51mm |
| Front Center | 729mm | 749mm | 781mm | 812mm |
| Chainstay Length | 455mm | 455mm | 455mm | 455mm |
| Wheelbase | 1182mm | 1202mm | 1235mm | 1266mm |
| Top Tube Length, Horizontal | 577mm | 600mm | 631mm | 664mm |
| Bike Standover Height | 760mm | 760mm | 781mm | 787mm |
| Seat Tube Length | 380mm | 410mm | 455mm | 505mm |
| Seat Tube Angle | 75.04° | 74.79° | 74.48° | 74.14° |
