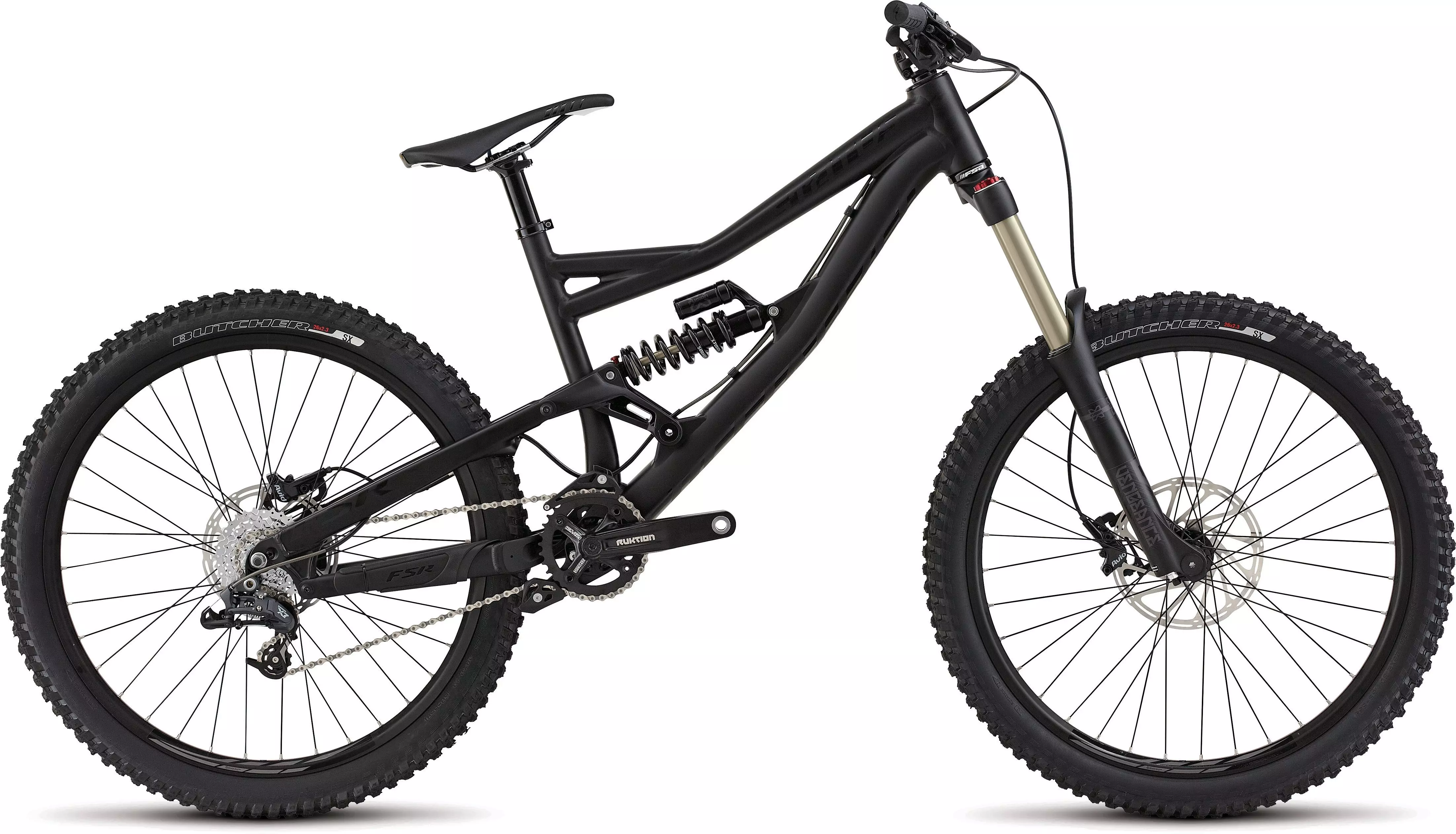

2015 Status I

0 Reviews

The 200mm-travel Status I downhill bike features FSR suspension, plus a custom X-Fusion…

Product Details

The 200mm-travel Status I downhill bike features FSR suspension, plus a custom X-Fusion Vector R shock and 180mm-travel X-Fusion Vengeance fork.

World Cup-proven Specialized Butcher tread w/ SX casing
The custom color—Rocket Red—is designed to naturally age over time. It will exhibit splashes of a dark rich color when exposed to prolonged direct sunlight. This finish is deliberate and therefore not covered under the traditional warranty policy.
M4 alloy FSR frame w/ 200mm travel and full-cartridge bearings to handle gnarly downhill terrain
Specialized Demo low-rise handlebar for navigating technical descents
Avid DB3 hydraulic disc brakes w/ metallic pads and custom reach adjustment for complete control
Truvativ Ruktion crankset w/ Status guide for reliable pedaling performance on DH terrain
SRAM X7 rear derailleur for reliable and pinpoint shifts
X-Fusion Vengeance 170mm-travel fork provides plush performance through technical terrain
Custom X-Fusion Vector R coil shock for total control on rough terrain
P.Disc wide rims are engineered for going big

Technical Specifications

FRAMESET

FRAME

M4 hydroformed tubing, 1.5"" forged headtube, ISCG mounts, 135mm rear spacing, full-cartridge bearing pivots, 200mm travel

HEADSET

Semi-integrated alloy cups for 1-1/2"" headtube and 1-1/8"" steerer, cartridge bearings

SEAT BINDER

Specialized 7050 alloy, single bolt, 34.9mm

SUSPENSION

REAR SHOCK

Custom X-Fusion Vector R, coil over w/ piggy back, rebound adj., 8.75x2.75"", spring rate XS: 350, S: 400, M: 450, L: 500

FORK

X-Fusion Vengeance R, coil spring, tapered alloy steerer, rebound adj., 20mm thru-axle, 170mm travel

WHEELS

FRONT HUB

Specialized Hi Lo disc, sealed cartridge bearings, 20mm thru-axle, 36h

REAR HUB

Specialized disc, bolt-on, 36h

SPOKES

Stainless, 14g

DRIVETRAIN

REAR DERAILLEUR

SRAM X7, 9-speed, short cage

SHIFT LEVERS

SRAM X4, 9-speed, trigger

CASSETTE

SRAM PG 830, 8-speed, 11-32

CRANKSET

Truvativ Ruktion, 165mm, 34T, w/ Status guide

BOTTOM BRACKET

Truvativ Howitzer XR, oversize sealed outboard cartridge bearings, 73mm

COCKPIT

SEATPOST

Specialized 6061 alloy, 2-bolt, 0mm setback, 30.9mm

STEM

SRAM Hussefelt, 1-1/8 steerer clamp

HANDLEBARS

Specialized Demo, low rise, 6061 alloy, 9-degree backsweep, 6-degree upsweep, 31.8mm

GRIPS

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL

SADDLE

Specialized DH, 8mm steel rails

BRAKES

FRONT BRAKE

Avid DB3, hydraulic disc, steel-backed metallic pads, 200mm Centerline rotor

REAR BRAKE

Avid DB3, hydraulic disc, steel-backed metallic pads, 180mm Centerline rotor

BRAKE LEVERS

Avid DB3, w/ reach adjust

ACCESSORIES

PEDALS

Alloy platform, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	GROM	XS	S	M	L
Seat Tube Length, Center to Top	394mm	394mm	394mm	419mm	458mm
Top Tube Length, Actual	510mm	510mm	531mm	553mm	574mm
Bottom Bracket Drop	-14.5mm	-14.5mm	-14.5mm	-14.5mm	-14.5mm
Bottom Bracket Height	306mm	355mm	355mm	355mm	355mm
Seat Tube Angle, Actual	71°	71°	71°	71°	71°
Seat Tube Angle, Effective	75°	75°	75°	75°	75°
Wheel Base	1164mm	1164mm	1164mm	1189mm	1214mm
Standover Height	697mm	746mm	746mm	743mm	759mm
Stack	646mm	646mm	646mm	646mm	646mm
Reach	375mm	375mm	420mm	425mm	450mm
Head Tube Length	120mm	120mm	120mm	120mm	120mm
Head Tube Angle	64.5°	64.5°	64.5°	64.5°	64.5°
Front Center	739mm	739mm	739mm	764mm	789mm
Chainstay Length	426mm	426mm	426mm	426mm	426mm
Top Tube Length, Horizontal	533mm	533mm	558mm	583mm	608mm
Crank Length	165mm	165mm	165mm	165mm	165mm
Handlebar Width	720mm	780mm	780mm	780mm	780mm
Stem Length	40mm	45mm	45mm	45mm	45mm
Seatpost Length	300mm	300mm	300mm	300mm	300mm
