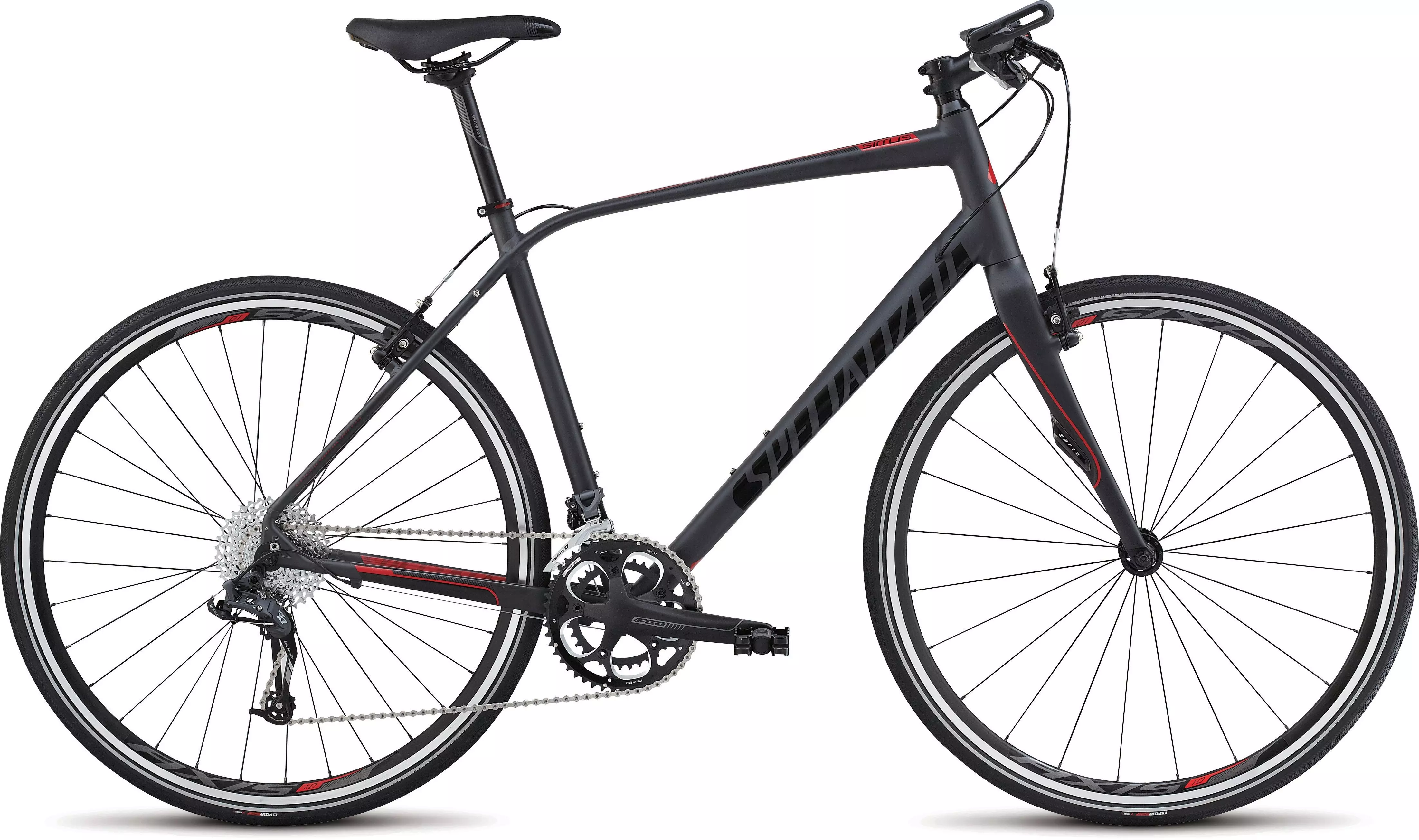

2015 Sirrus Comp

0 Reviews

The Sirrus Comp with Fitness Geometry provides flat bar handling so you can ride…

Product Details

The Sirrus Comp with Fitness Geometry provides flat bar handling so you can ride faster on longer rides, yet be stable and quick in town. The 2X10 drivetrain with wide gearing allows top speed with hill climbing capabilities, too.

SRAM X7, rear derailleur for clean and dependable shifting
FACT carbon fork w/ Zertz provides lightweight and smooth handling
Specialized Body Geometry Targa, lock-on grips w/ integrated bar end for no-slip performance
Body Geometry Targa Sport saddle w/ steel rails for all conditions comfort
Compatible with Specialized Plug + Play Fender Set
New E5 Premium Aluminum frame w/ Fitness Geometry built for speed and versatility
Tektro RX1 V-brake for no-hassle, confident braking
Specialized Espoir Sport Reflect, 700x30c tires for performance and visibility

Technical Specifications

FRAMESET

FRAME

Specialized E5 Premium Aluminum, fully manipulated butted tubing w/ smooth welds, internal cable routing, tapered/integrated headset, fender/rack eyelets

FORK

Specialized FACT carbon w/ Zertz, alloy steerer/crown

HEADSET

1-1/8"" sealed Cr-Mo bearings integrated w/ headset, 15mm alloy cone spacer

SEAT BINDER

Alloy, 31.8mm

WHEELS

FRONT TIRE

Specialized Espoir Sport Reflect, 60TPI, wire bead, Double BlackBelt protection, 700x30c

REAR TIRE

Specialized Espoir Sport Reflect, 60TPI, wire bead, Double BlackBelt protection, 700x30c

FRONT WHEEL

AXIS 1.0

REAR WHEEL

AXIS 1.0

DRIVETRAIN

REAR DERAILLEUR

SRAM X7, 10-speed, long cage

SHIFT LEVERS

SRAM SL500, 10-speed

CASSETTE

SRAM PG 1030, 10-speed, 11-36

CHAIN

KMC X10, 10-speed, reusable Missing Link

CRANKSET

FSA Omega, forged alloy, 48/34

FRONT DERAILLEUR

SRAM X7, 2x10

COCKPIT

TAPE

Specialized Body Geometry Targa, lock-on w/ integrated bar end

HANDLEBARS

Specialized flat, 6061 double butted alloy, 10-degree backsweep, 4-degree upsweep, 31.8mm

STEM

Specialized Comp Multi, 3D forged alloy, 4-bolt, 12-degree rise

SADDLE

Body Geometry Targa Sport, steel rails, 155mm

SEATPOST

Alloy, 2-bolt, 12.5mm offset, 30.9mm, anti-corrosion hardware

BRAKES

BRAKE LEVERS

Tektro RX 1.0

FRONT BRAKE

Tektro RX1, mini V-brake, cast aluminum, linear pull

REAR BRAKE

Tektro RX1, mini V-brake, cast aluminum, linear pull

ACCESSORIES

PEDALS

Sirrus, 1.5mm Varus angle, nylon body, symmetric alloy cage, low profile bearing system, toe clip capable

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	S	M	L	XL
Top Tube Length (Horizontal)	555mm	570mm	580mm	600mm	620mm
Rake	51mm	51mm	51mm	51mm	51mm
Seat Tube Length, Center to Top	395mm	440mm	485mm	530mm	570mm
Bottom Bracket Drop	70mm	70mm	70mm	70mm	70mm
Bottom Bracket Height	272.5mm	272.5mm	272.5mm	272.5mm	272.5mm
Wheel Base	1050mm	1058mm	1066mm	1076mm	1097mm
Standover Height	706mm	745mm	780mm	814mm	847mm
Stack	552mm	572mm	589mm	614mm	648mm
Reach	392mm	398mm	406mm	412mm	422mm
Head Tube Length	130mm	150mm	165mm	190mm	225mm
Head Tube Angle	70.5°	71°	71.5°	72°	72°
Trail	66mm	63mm	60mm	57mm	57mm
Front Center	562.2mm	570.7mm	579.2mm	589mm	609.7mm
Chainstay Length	439mm	439mm	439mm	439mm	439mm
Seat Tube Angle	73.5°	73.25°	73.5°	73°	73°
Crank Length	170mm	170mm	173mm	175mm	175mm
Handlebar Width	580mm	580mm	600mm	600mm	620mm
Stem Length	75mm	90mm	100mm	100mm	110mm
Seatpost Length	300mm	300mm	350mm	350mm	350mm
