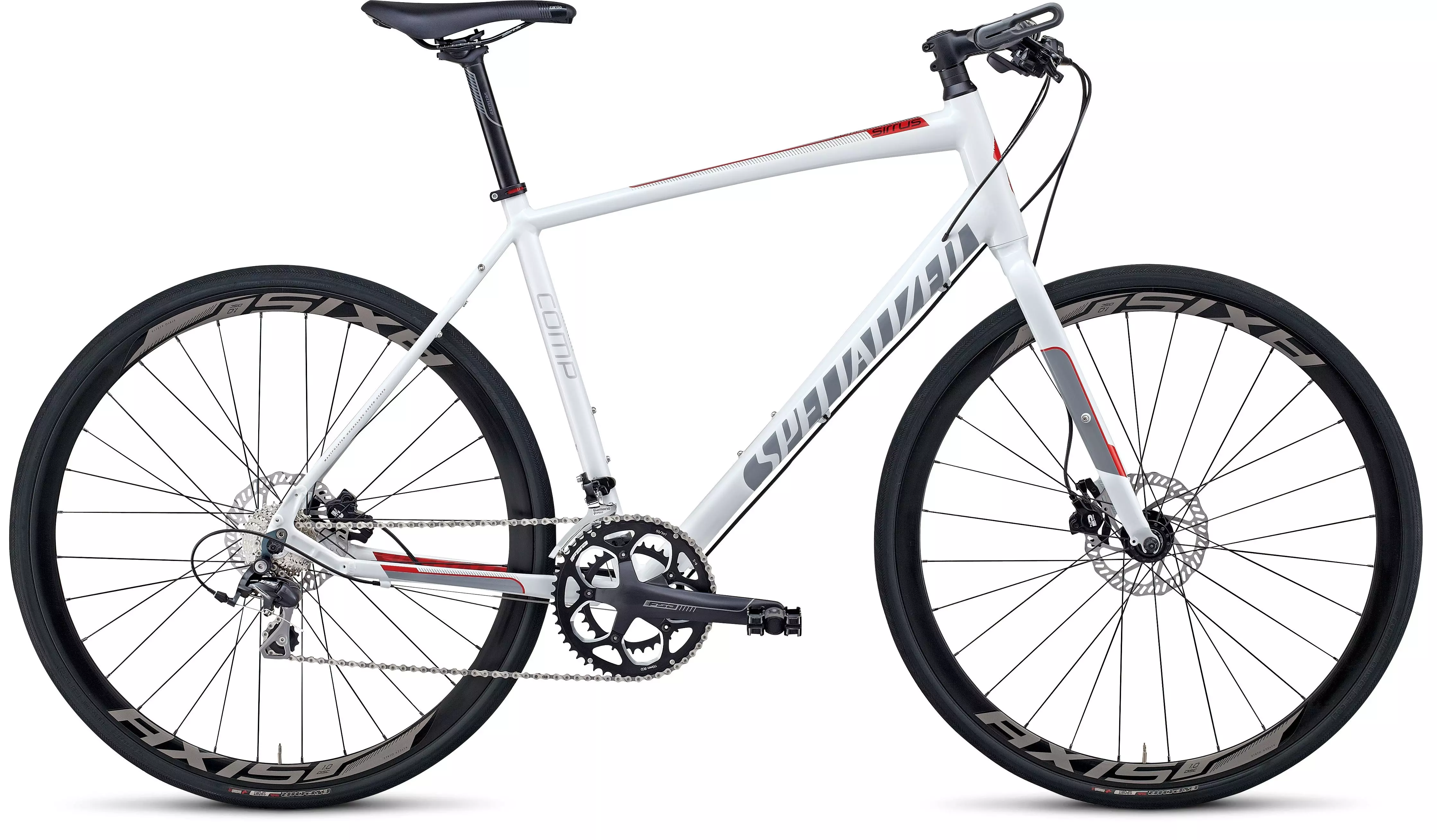

2014 Sirrus Comp Disc

The Sirrus Comp Disc provides road bike geometry with flat bar handling so you can…

Product Details

The Sirrus Comp Disc provides road bike geometry with flat bar handling so you can ride fast on longer rides, but also be stable and quick in town. The hydraulic disc brakes mean you'll have confidence to ride regardless of the weather or what you're carrying on your racks.

Super light fully-manipulated E5 Premium Aluminum frame is built for high speed, low-fuss, and great versatility, with tapered headtube, internal routing, rack/fender mounts, and wide tire clearance
Double BlackBelt protection and a wider 28c profile make the Specialized Espoir Sport tires perfect for city or open road use
Sporty yet comfortable Body Geometry Targa Comp fitness saddle with light, durable hollow Cr-Mo rails
Premium Aluminum disc fork with Cr-Mo steerer, with fender mounts and ample tire clearance for added versatility
FSA Omega compact alloy crankset with 50/34 configuration for lightweight, wide-range gearing
Adjustable, 4-position, oversized forged alloy stem with 31.8mm bar clamp for strength and versatile positioning, plus Body Geometry Targa gel grips lock on and help alleviate hand pain and tingling fingers
Strong, reliable, Tektro Draco hydraulic disc brakes for sure stopping and control in any weather with any load

Technical Specifications

FRAMESET

FRAME

Specialized E5 Premium Aluminum disc, fully-manipulated butted tubing w/ smooth welds, internal cable routing, tapered/integrated headset, fender/rack eyelets

FORK

Sirrus disc, Cr-Mo steerer, aluminum crown/lowers

HEADSET

1-1/8"" FSA Campy style, integrated cartridge, 15mm alloy cone spacer

SEAT BINDER

Alloy, 31.8mm

WHEELS

FRONT WHEEL

AXIS 1.0 Disc

REAR WHEEL

AXIS 1.0 Disc

FRONT TIRE

Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x28c

REAR TIRE

Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x28c

INNER TUBES

Standard presta valve

DRIVETRAIN

SHIFT LEVERS

Shimano SL-R440R

FRONT DERAILLEUR

Shimano

REAR DERAILLEUR

Shimano 105

CASSETTE

Shimano HG-50, 9-speed, 11-25

CRANKSET

FSA Omega, forged alloy

CHAINRINGS

50/34

BOTTOM BRACKET

FSA, sealed bearings

CHAIN

KMC X9

COCKPIT

HANDLEBARS

Specialized flat bar, double-butted alloy, 10-degree backsweep, 31.8mm

STEM

Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt, 31.8mm clamp

TAPE

Specialized Body Geometry Targa, lock-on w/ integrated bar end

SADDLE

Body Geometry Targa Comp, Cr-Mo rails, 143mm

SEATPOST

Alloy, 2-bolt, 12.5mm offset, 27.2mm

BRAKES

FRONT BRAKE

Tektro Draco 2, hydraulic disc, 160mm rotor

REAR BRAKE

Tektro Draco 2, hydraulic disc, 160mm rotor

BRAKE LEVERS

Tektro Draco, hydraulic lever

ACCESSORIES

PEDALS

Sirrus, 1.5mm Varus angle, nylon body, symmetric alloy cage, low profile bearing system, toe clip capable

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	SM	MD	LG	XL
Seat-Tube Angle	73.5°	73.25°	73.5°	73°	73°
Head-Tube Length	130mm	150mm	165mm	190mm	225mm
Seat-Post Length	300mm	350mm	350mm	350mm	350mm
Head-Tube Angle	70.5°	71°	71.5°	72°	72°
Chain-Stay Length	445mm	445mm	445mm	445mm	445mm
Top-Tube Length, Horizontal	555mm	570mm	580mm	600mm	620mm
Front-Center	620mm	629mm	637mm	646mm	667mm
Handle-Bar Width	580mm	580mm	580mm	580mm	580mm
Stand-Over Height	709mm	741mm	777mm	812mm	850mm
Seat-Tube Length, B-B Center to Top	395mm	440mm	485mm	530mm	570mm
Fork Rake	51mm	51mm	51mm	51mm	51mm
B-B Drop	70mm	70mm	70mm	70mm	70mm
Trail	69mm	66mm	63mm	60mm	60mm
Wheelbase	1056mm	1065mm	1072mm	1082mm	1103mm
Crank Length	170mm	170mm	175mm	175mm	175mm
Stem Length	75mm	90mm	90mm	100mm	100mm
