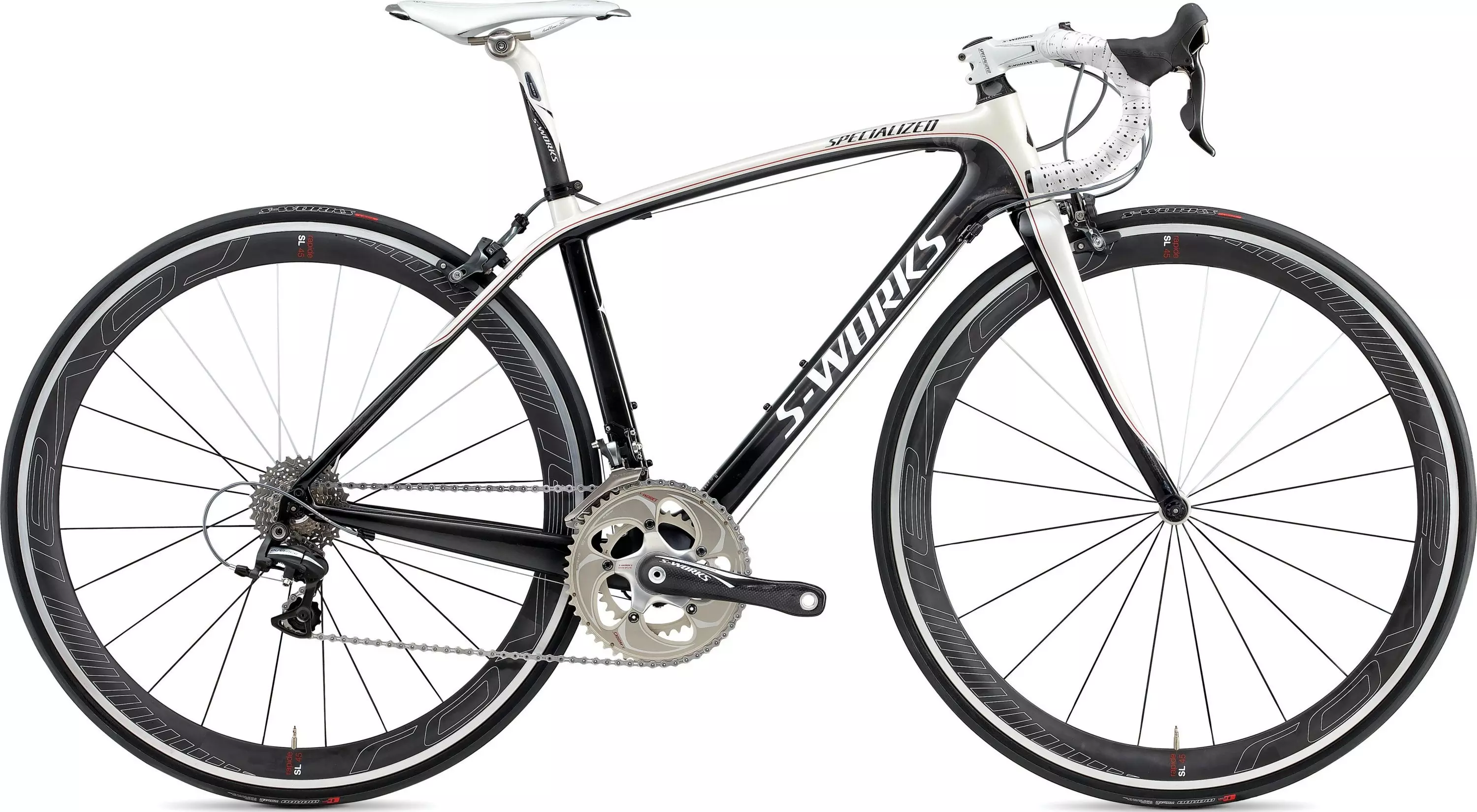

2010 S-Works Amira

0 Reviews

The newest and fastest women's bike goes by the name Amira. Engineered for speed,…

Color:

Carbon / White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

The newest and fastest women's bike goes by the name Amira. Engineered for speed, efficiency and light weight, the Amira uses advanced FACT IS construction, women's performance geometry and a stiff, oversized head tube with a taper to deliver race-ready performance like no other women's bike on the market.

FACT full carbon monocoque fork for strength and precision steering
Ruby SL ergonomic women's carbon handlebar delivers superior fit, comfort, stiffness and strength at minimal weight
S-Works oversized BB FACT carbon crankset combines high strength and light weight for unparalleled efficiency and power transfer
New ultralight Roval Rapide SL 45 wheelset with carbon/alloy hybrid rims for low aerodynamic drag with the durability of an alloy brake track
Body Geometry Ruby Gel women's-specific saddle with hollow Ti rails is optimized for race day with low profile construction and compliant shell technology
All-new S-Works Amira 10r carbon frame with women's-specific geometry and tubing uses advanced FACT IS construction to create the fastest women's road machine available

Technical Specifications

FRAMESET

FRAME

S-Works Amira FACT 10r carbon, FACT IS construction, compact women's race geometry

FORK

S-Works Amira FACT carbon monocoque, 1 1/8 - 1 3/8"" tapered steerer

HEADSET

1 1/8 - 1 3/8"" Aheadset stainless balls w/ top cap, 20mm cone spacer, 20mm flat spacers

SEAT BINDER

S-Works alloy, 32.6mm clamp

WHEELS

FRONT WHEEL

Roval Rapide SL

REAR WHEEL

Roval Rapide SL

FRONT TIRE

S-Works Mondo Open Tubular, 700x23c, 290TPI

REAR TIRE

S-Works Mondo Open Tubular, 700x23c, 290TPI

INNER TUBES

Super Light Turbo, 60mm presta valve

DRIVETRAIN

SHIFT LEVERS

Shimano Dura-Ace STI, flight deck compatible

FRONT DERAILLEUR

Shimano Dura-Ace

REAR DERAILLEUR

Shimano Dura-Ace

CASSETTE

Shimano Dura Ace, 10-speed, 12-27t

CRANKSET

S-Works Crankset

CHAINRINGS

50 x 34T

BOTTOM BRACKET

Ceramic bearings

CHAIN

Shimano Dura-Ace

COCKPIT

HANDLEBARS

S-Works Ruby SL Ergo Carbon

STEM

S-Works 3D forged with carbon-wrap top and front cap

TAPE

Specialized S-Works wrap

SADDLE

Body Geometry Ruby Gel w/ hollow Ti rails

SEATPOST

S-Works FACT carbon w/ Zertz insert, 27.2mm

BRAKES

FRONT BRAKE

Shimano Dura-Ace

REAR BRAKE

Shimano Dura-Ace

BRAKE LEVERS

Shimano Dura-Ace STI, flight deck compatible

ACCESSORIES

PEDALS

Silver cage/black body, w/ black toe clips and strap

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	44	48	51	54	56
Seat-Tube Angle	76°	75.75°	75.5°	74°	73.5°
Head-Tube Length	105mm	115mm	125mm	145mm	165mm
Seat-Post Length	300mm	300mm	350mm	350mm	350mm
Head-Tube Angle	70.5°	71.25°	72°	72°	72°
Chain-Stay Length	405mm	405mm	405mm	405mm	408mm
Top-Tube Length, Horizontal	498mm	506mm	518mm	537mm	548mm
Front-Center	576mm	579mm	582mm	588mm	595mm
Handle-Bar Width	380mm	380mm	400mm	400mm	420mm
Stand-Over Height	692mm	718mm	735mm	758mm	777mm
Seat-Tube Length, B-B Center to Top	390mm	420mm	450mm	480mm	495mm
Fork Rake	51mm	51mm	49mm	49mm	49mm
B-B Drop	73mm	73mm	73mm	73mm	71.5mm
Trail	66mm	62mm	59mm	59mm	59mm
Wheelbase	969mm	973mm	976mm	982mm	993mm
Crank Length	167.5mm	167.5mm	170mm	170mm	172.5mm
Stem Length	75mm	75mm	90mm	100mm	100mm
