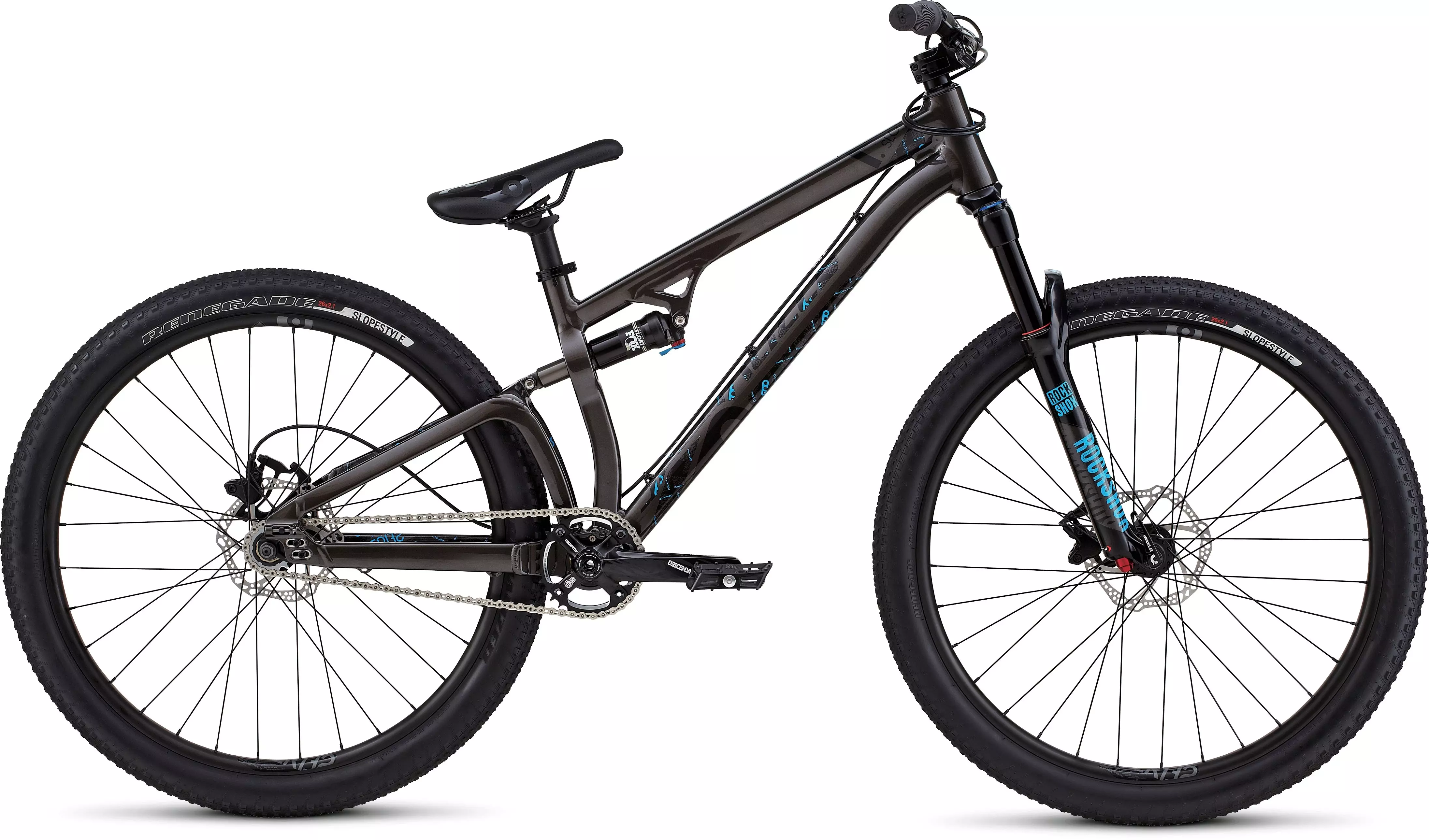

2016 P.Slope

Part No.: 91916-8022

0 Reviews

Whether you're going huge at the dirt park or tearing it up slopestyle, the P.Series…

Color:

Gloss Warm Charcoal/Black/Cyan

Size:

22.5" TT

Product Details

Add Icon

Whether you're going huge at the dirt park or tearing it up slopestyle, the P.Series P.Slope will complement your style. It features a durable single-pivot, full-suspension chassis that's designed to smooth out landings with its 110mm of travel up front and 85mm in the back. And in terms of spec, it comes equipped with tough components and 26-inch wheels that'll launch you and treat you kindly on your way back down to earth.

  • A FOX FLOAT rear shock with the all-new DPS damper sits at the rear, controlling a smooth 85mm of travel. It features a new dual-piston design that let's you select your level of firmness, plus a revamped air spring that creates a more supple ride quality than ever.

  • Popularized by downhillers, the Truvativ Descendant crankset is as tough as nails without stacking on tons of weight.

  • The RockShox Pike DJ fork includes the same stout 35mm chassis as its big brother, along with the revolutionary Charger damper and Solo Air system. The only real difference is in its 110mm of travel. But what does this mean for you? It means that you get a stiff construction that'll power through berms, and serve-up loads of bottom-out progression upon landing.

  • The frame is constructed from A1 Premium Aluminum in order to keep the overall weight at a minimum, while also ensuring that the bike is plenty tough to take a hit. And when it comes to cool features that make the difference, you get forged horizontal dropouts and integrated chain tensioners to keep the rear wheel locked in place, ISCG 05 to run chainguides, and a tough, forged shell surrounding the concentric bottom bracket.

  • P.26 alloy wheels pair a double-wall alloy construction with a 32mm inner width in order to ensure that these wheels can take a beating. They're cased in our 26x2.1" Renegade Slopestyle tires to round out the package. So you'll get durable performance, loads of traction, and a plush, fast ride quality.

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized A1 Premium Aluminum, concentric BB, fully-butted tapered head tube, forged BB30 BB shell, integrated ISCG 05 tabs, forged horizontal dropouts, integrated chain tensioners, 85mm travel

HEADSET

FSA Orbit, 1-1/8"" integrated, Campy style, full cartridge bearings, 5.3mm cone spacer

SEAT BINDER

Forged alloy, single bolt, 34.9mm

SUSPENSION

REAR SHOCK

Custom FOX FLOAT, DPS damper, slopestyle tune, rebound adjust, 200mmx50mm

FORK

RockShox Pike DJ 26, Solo Air spring, 110mm travel, external rebound adjust, Motion Control low speed compression, tooled floodgate, tapered alloy steerer, mag lowers, 32mm alloy stanchions, 15mm Maxle thru-axle

WHEELS

RIMS

P.26, alloy, double-wall, triple void, 32mm inner width, 32h

FRONT HUB

Specialized, Hi Lo disc, alloy, sealed cartridge bearings, 15mm thru-axle, 32h

REAR HUB

P.Series Dirt Jump, disc, alloy, sealed cartridge bearings, solid axle w/ track nut, 32h

SPOKES

Stainless, 14g, black

FRONT TIRE

Specialized Renegade Slopestyle, 60TPI, wire bead, 26x2.1""

REAR TIRE

Specialized Renegade Slopestyle, 60TPI, wire bead, 26x2.1""

INNER TUBES

Standard, Schrader valve

DRIVETRAIN

CHAIN

KMC K810SL, single speed, 1/2""x3/32"", anti-drop inner links

CRANKSET

Truvativ Descendant, BB30, 7050 alloy, 170mm arms, thin 32T ring

BOTTOM BRACKET

SRAM, BB30

COCKPIT

SEATPOST

Alloy, 2-bolt, 12.5mm offset, 30.9mm

STEM

Specialized P.Series MTB, forged alloy, top load

HANDLEBARS

Specialized P.Series MTB Dirt, 6061 alloy, 9-degree backsweep, 6-degree upsweep, 38mm rise, 750mm, 31.8mm

GRIPS

P.Grip, Pruven material, lock-on w/ closed end, 140mm

SADDLE

P.Series Dirt

BRAKES

FRONT BRAKE

Hayes Radar, hydraulic disc, post mount, 160mm rotor

REAR BRAKE

Hayes Radar, hydraulic disc, post mount, 160mm rotor

BRAKE LEVERS

Hayes Radar

ACCESSORIES

PEDALS

Specialized P.Series Dirt, nylon body w/ molded pins, DU bushing w/ wave washer, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
