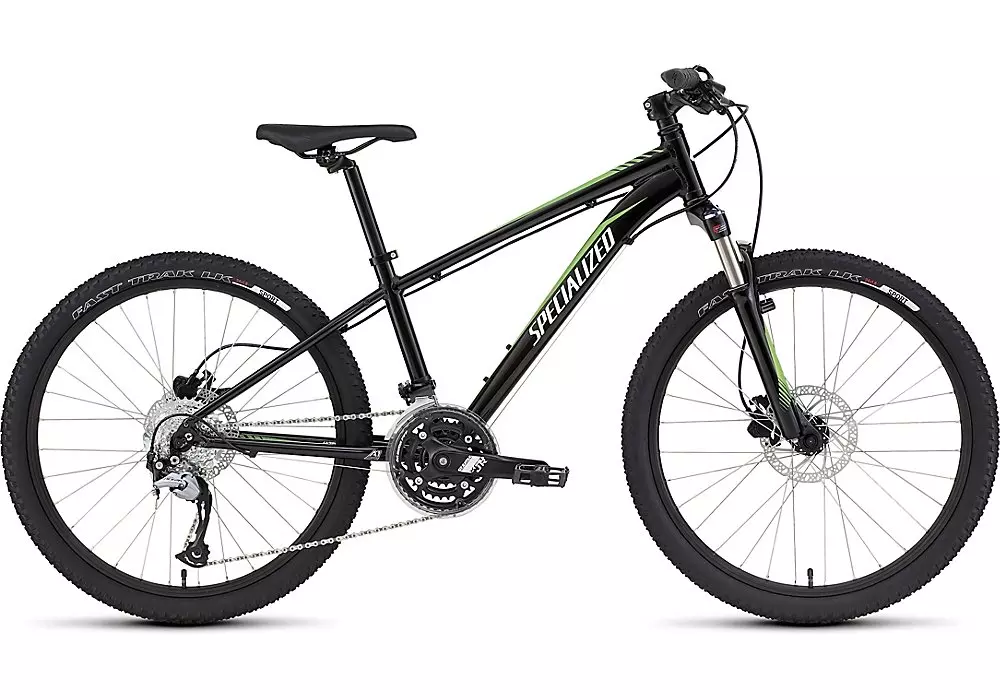

2017 Hotrock 24 XC Disc
0 Reviews
Kid-sized for shredding singletrack, the Hotrock 24 XC Disc comes equipped with everything…
Color:
Black/Green/White
What's my size?
Select a Size
Product Details
Kid-sized for shredding singletrack, the Hotrock 24 XC Disc comes equipped with everything your little ripper needs to start riding with the big kids, including hydraulic disc brakes. It features a lightweight, yet durable, A1 Premium Aluminum frame that's designed to take a hit while they find their legs on the pump track, while chatter and bumps are handled by the coil-sprung SR Suntour fork's 63mm of travel. Then there are a whole host of other components that are plenty tough enough to stand up to your little one, so you can rest assured that you'll be spending more time riding with your kid then waiting in line at the repair counter.
Tough, light, and durable, the A1 Premium Aluminum frame is built to stand up to years of tough riding.
SR Suntour suspension fork offers 63mm of coil-sprung travel that smooths out bumpy, rough terrain
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, double-butted, formed down tube/top tube, externally relieved head tube, forged dropouts w/replaceable hanger, disc mount
FORK
SR Suntour, coil spring w/preload adjust, 63mm of travel, 1-1/8"" steel steerer, 9mm axle
SEAT BINDER
Alloy, 31.8mm
WHEELS
RIMS
24"", aluminum double-wall, 32h
FRONT HUB
Specialized disc, loose ball bearings, 9mm QR, 32h
REAR HUB
Specialized disc, 6-bolt disc mount, loose ball bearings, for Shimano 8-/9-speed cassettes, QR, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Specialized Fast Trak LK Sport, 60TPI, wire bead, 24x1.8""
REAR TIRE
Specialized Fast Trak LK Sport, 60TPI, wire bead, 24x1.8""
INNER TUBES
Schrader valve
DRIVETRAIN
CHAINRINGS
42/32/22T
FRONT DERAILLEUR
SR Suntour, 31.8mm clamp, high-mount
REAR DERAILLEUR
Shimano Acera, Shadow design
SHIFT LEVERS
Shimano RapidFire Plus, 8-speed
CASSETTE
Sunrace, 8-speed, 11-34t
CHAIN
KMC X8, 8-speed w/reusable MissingLink
CRANKSET
SR Suntour XCT-JR, replaceable outer ring, 42/32/22T w/chainguard
BOTTOM BRACKET
Square taper, cartridge bearings, 68mm
COCKPIT
GRIPS
Specialized, Kraton w/gel
SADDLE
Specialized Youth, steel rails
SEATPOST
Alloy, single bolt, 27.2mm
STEM
Forged alloy, 20 degree rise, 4 bolt, 25.4mm clamp diameter
HANDLEBARS
Specialized, 8-degree backsweep, 4-degree upsweep, 25mm rise, 620mm width, 25.4mm
BRAKES
FRONT BRAKE
Tektro Auriga, hydraulic disc, resin pads, 160mm rotor
REAR BRAKE
Tektro Auriga, hydraulic disc, resin pads, 160mm rotor
ACCESSORIES
PEDALS
Platform
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 11 | 13 | |
|---|---|---|
| Crank Length | 152mm | 160mm |
| Handlebar Width | 620mm | 620mm |
| Stem Length | 70mm | 80mm |
| Seatpost Length | 300mm | 350mm |
| Seat-Tube Angle | 73° | 73° |
| Head-Tube Length | 90mm | 110mm |
| Head-Tube Angle | 70° | 70° |
| Chain-Stay Length | 420mm | 420mm |
| Front-Center | 544mm | 587mm |
| B-B Drop | 45mm | 37mm |
| B-B Height | 263.5mm | 271mm |
| Bike Stand-Over Height | 610mm | 643mm |
| Fork Length (full) | 402mm | 402mm |
| Top-Tube Length (horizontal) | 490mm | 530mm |
| Seat-Tube Length | 305mm | 342mm |
| Stack | 504mm | 516mm |
| Reach | 335mm | 372mm |
| Trail | 73mm | 73mm |
| Fork Rake/Offset | 37mm | 37mm |
| Wheelbase | 960mm | 1005mm |
Manual Downloads
For safety warnings please refer to the documentation in the Manual Downloads section of this page.
