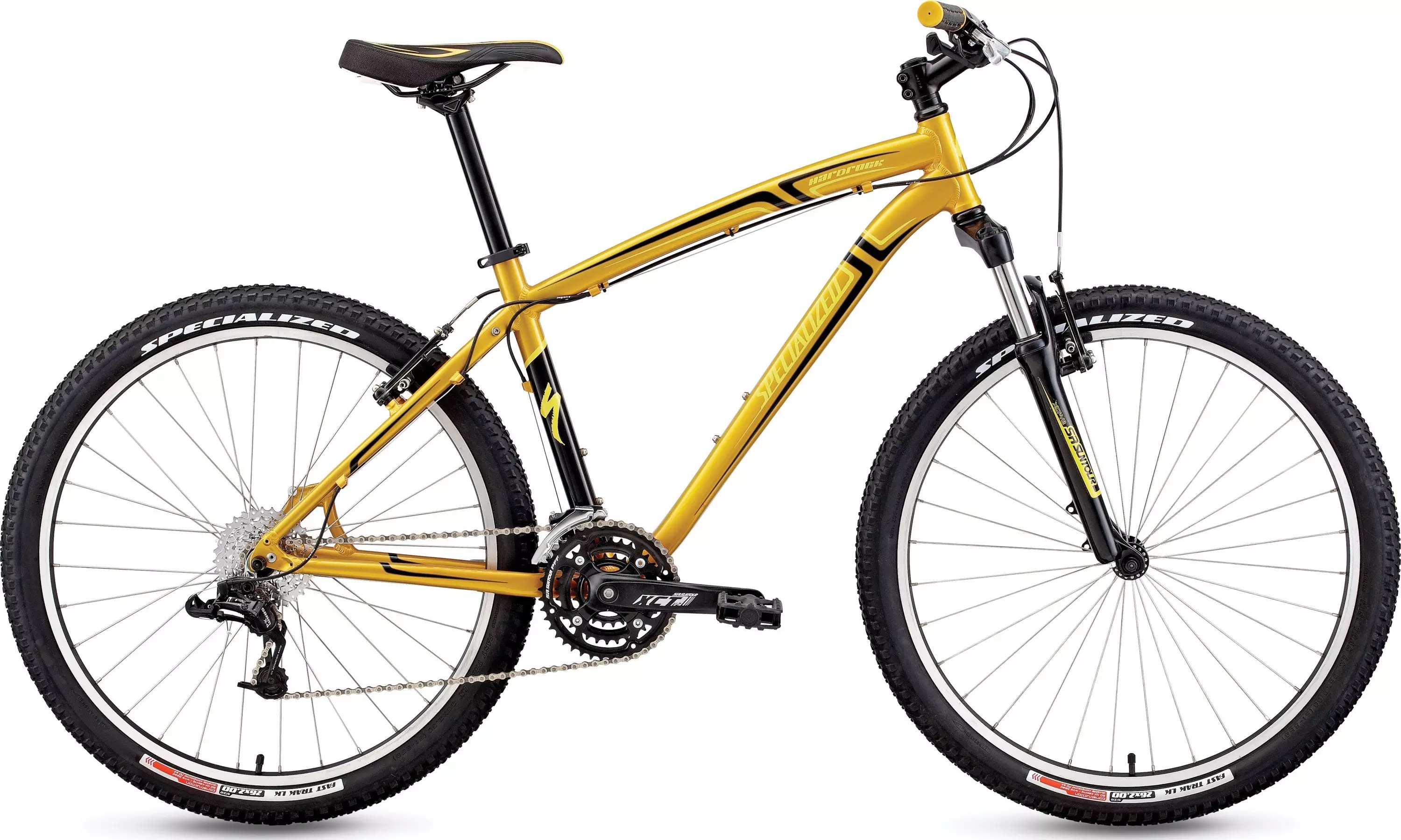

2010 Hardrock
5
6 Reviews
Better than ever after all these years, our Hardrock is still the best performing…
Product Details
- SRAM X3 7-speed trigger shifters for smooth, accurate gear changes
- Specialized Body Geometry XC saddle with front and rear bumpers for off-road durability
- Specialized Fast Trak LK Sport tires use a reduced knob height for lower rolling resistance
- SRAM 7-speed cassette replaces freewheel mechanism of years past for lighter weight and more durability
- 80mm smooth-travel fork with preload adjustment and size-specific spring rates for fine-tuned performance
- Fully butted A1 Premium Aluminum frame with double ORE down tube makes for a lighter weight, more compliant and longer lasting bike
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, fully butted, formed TT, Double ORE DT, externally relieved HT, reinforced disc mount, forged dropouts w/ replaceable hanger
HEADSET
1-1/8"" threadless, loose ball
SEAT BINDER
Alloy QR, nylon washer
SUSPENSION
FORK
SR Suntour SF8-XCT-V2, 80mm, 1pc. alloy lower, 28mm Hi-Ten stanchions, coil/mcu spring w/ preload adj., size-specific spring rates, spring assisted seals
WHEELS
RIMS
Alex Z-1000, 26"", alloy, single wall, 32h front and rear
FRONT HUB
Forged alloy, double sealed, ground race, steel QR, 32h
REAR HUB
Forged alloy, double sealed, ground race, steel QR, cassette, 32h
SPOKES
2mm (14g) stainless
FRONT TIRE
Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead
REAR TIRE
Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead
INNER TUBES
Schraeder valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano Altus, 34.9mm clamp
REAR DERAILLEUR
SRAM X-4, mid cage
SHIFT LEVERS
SRAM X3-R trigger
CASSETTE
SRAM PG-730, 7-speed, 11-32t
CHAIN
KMC Z7 w/ reuseable Missing Link
CRANKSET
SR SunTour, square taper spline
CHAINRINGS
42S x 32S x 22S replaceable outer
BOTTOM BRACKET
Sealed cartridge, square taper, 68mm
COCKPIT
SEATPOST
Alloy two bolt, 12.5mm offset, micro adjust, 30.9mm
STEM
Forged alloy, 15 degree rise, 25.4mm clamp
HANDLEBARS
Hi-Ten riserbar, 32mm rise, 640mm wide, 8 degree back sweep, 6 degree up sweep
GRIPS
Specialized Enduro, dual compound Kraton, no flange, 131mm
SADDLE
Specialized XC, Body Geometry, 143mm width, front and rear bumpers
BRAKES
FRONT BRAKE
V brake, alloy linear pull, 1pc. pad
REAR BRAKE
V brake, alloy linear pull, 1pc. pad
BRAKE LEVERS
Alloy, linear pull
ACCESSORIES
PEDALS
Composite cage and body, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 13 | 15 | 17 | 19 | 21 | 23 | |
|---|---|---|---|---|---|---|
| Bottom Bracket Height - Low Setting | 299mm | 299mm | 299mm | 299mm | 299mm | 299mm |
| Top Tube Length (Horizontal) | 540mm | 555mm | 580mm | 605mm | 630mm | 655mm |
| Head Tube Height | 100mm | 100mm | 120mm | 120mm | 140mm | 160mm |
| Head Tube Angle - Low Setting | 70.25° | 70.25° | 70.25° | 70.25° | 70.25° | 70.25° |
| Seat Tube Angle (Actual) - Low Setting | 73° | 73° | 73° | 73° | 73° | 73° |
| Top Tube Length (Actual) | 534mm | 538mm | 557mm | 581mm | 608mm | 638mm |
| Seat Tube Length - Center to Top | 330mm | 381mm | 432mm | 483mm | 533mm | 584mm |
| Wheel Base | 1017mm | 1032mm | 1058mm | 1083mm | 1109mm | 1135mm |
| Standover Height | 696mm | 727mm | 766mm | 794mm | 830mm | 865mm |
| Chainstay Length | 424mm | 424mm | 424mm | 424mm | 424mm | 424mm |
| Crank Length | 170mm | 170mm | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 640mm | 640mm | 640mm | 640mm | 640mm | 640mm |
| Stem Length | 60mm | 60mm | 75mm | 75mm | 90mm | 90mm |
| Seatpost Length | 350mm | 350mm | 350mm | 400mm | 400mm | 400mm |
