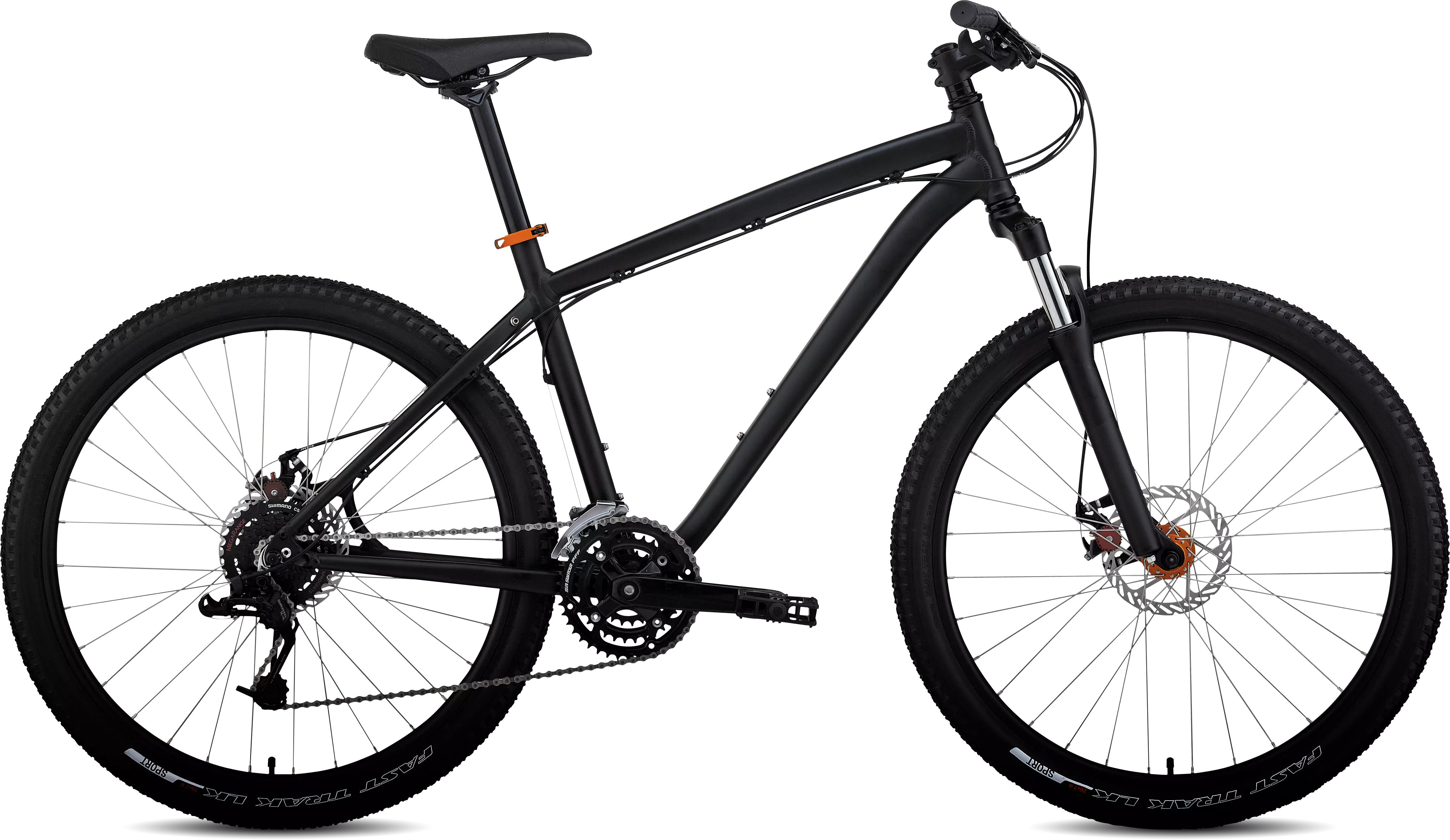

2012 Hardrock Sport Disc

0 Reviews

With a smooth SR Suntour fork with lockout, powerful Avid BB5 disc brakes, and double-walled…

Color:

Blk Pnk/Org Ano

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

With a smooth SR Suntour fork with lockout, powerful Avid BB5 disc brakes, and double-walled alloy wheels, the Hardrock Sport Disc is prepared for mountain trails and urban jungles.

Fully butted A1 Premium Aluminum frame with double ORE down tube for a lighter, more compliant and durable bike
80mm smooth-travel SR Suntour fork with preload adjustment, lockout, and size-specific spring rates for more versatility and tunability over varying terrain
Light and durable, double-walled Hardrock wheelset is tough enough to handle the rough stuff
Specialized Fast Trak LK Sport 60 TPI tires use a reduced knob height for lower rolling resistance, but have plenty of grip for confidence on the trail
SR Suntour crankset uses Shimano's sealed cartridge, Octalink-splined bearing BB interface for increased power transfer along with cartridge bearings and replaceable rings for longevity
Avid BB5 mechanical disc brakes with 160mm G2 Clean Sweep rotors for controlled stopping power
SRAM X4 8-speed, mid-cage rear derailleur is lightweight and offers high-end shifting performance
Shimano 7-speed, 12-32t cassette replaces the freewheel mechanism of years past for lighter weight and more durability
Specialized Body Geometry Hardrock saddle has front/rear bumpers for on and off-road durability, and ample padding for comfort

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminum, fully butted, disc only, 6061 alloy, double ORE down tube, externally relieved head tube, forged dropouts and reinforced disc mount, alloy replaceable derailleur hanger

HEADSET

1-1/8"" threadless, loose ball w/ seals

SEAT BINDER

34.9mm, alloy, extruded QR lever/collar

SUSPENSION

FORK

SR Suntour XCM (SF11-XCM-V3-26-DS-MLO), 1pc. alloy lower, 30mm Hi-Ten stanchions, mechanical LO, custom women's coil/mcu spring w/ preload adj., spring assisted seals, 80mm

WHEELS

RIMS

Alex HR Disc 26"", alloy double-wall, disc, pin joint, 24mm, 32h

FRONT HUB

Disc hub, high-Lo flange, sealed loose ball, machined disc mount, QR, 32h

REAR HUB

Machined disc mount & flanges, double-sealed, ground race, loose ball, dual-lock nuts w/ 19mm contact side, QR, 32h

SPOKES

Stainless silver, 2.0mm (14g)

FRONT TIRE

Specialized Fast Trak LK Sport, 60 TPI, wire bead, 26x2.0""

REAR TIRE

Specialized Fast Trak LK Sport, 60 TPI, wire bead, 26x2.0""

INNER TUBES

Schrader valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano Altus, 8-speed, 34.9mm clamp, top-swing, dual-pull

REAR DERAILLEUR

SRAM X4, 8-speed, mid cage

SHIFT LEVERS

SRAM X4, 8-speed, trigger

CASSETTE

Shimano 8-speed, 11-34t

CHAIN

KMC X-8, 8-speed, reusable Missing Link

CRANKSET

SR Suntour, 8-speed, Octalink spline, replaceable rings

CHAINRINGS

42/32/22, replaceable outer

BOTTOM BRACKET

Shimano, Octalink spline, cartridge bearing, 68mm

COCKPIT

SEATPOST

Alloy, 2 bolt head, 30.9mm, 12.5mm offset, micro adjust

STEM

3D forged 6061 alloy, 4 bolt clamp, 10º rise, 25.4mm

HANDLEBARS

Alloy XC riser bar, 8º backsweep, 4º upsweep, 25.4mm

GRIPS

Specialized Enduro, dual compound

SADDLE

Specialized Body Geometry Hardrock, steel rails, front and rear bumpers, 143mm width

BRAKES

FRONT BRAKE

Avid BB5 mechanical disc brake, post mount, 160mm G2 Clean Sweep rotor

REAR BRAKE

Avid BB5 mechanical disc brake, post mount, 160mm G2 Clean Sweep rotor

BRAKE LEVERS

Alloy ""V""-brake, two-finger, linear pull

ACCESSORIES

PEDALS

Composite platform w/ molded pins, toe clip compatible, 9/16"" w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	13.0	15.5	17.5	19.0	21.0	23.0
Top Tube Length (Horizontal)	540mm	561mm	586mm	605mm	630mm	655mm
Top Tube Length (Actual)	534mm	542mm	563mm	581mm	608mm	638mm
Seat Tube Length, Center to Top	330mm	394mm	444mm	483mm	533mm	584mm
Bottom Bracket Drop	41mm	41mm	41mm	41mm	41mm	41mm
Bottom Bracket Height	299mm	299mm	299mm	299mm	299mm	299mm
Wheel Base	1022mm	1044mm	1069mm	1088mm	1114mm	1140mm
Standover Height	696mm	724mm	759mm	794mm	830mm	865mm
Stack	571mm	571mm	590mm	590mm	609mm	628mm
Reach	365mm	387mm	406mm	425mm	444mm	463mm
Head Tube Length	100mm	100mm	120mm	120mm	140mm	160mm
Head Tube Angle	70.25°	70.25°	70.25°	70.25°	70.25°	70.25°
Chainstay Length	424mm	424mm	424mm	424mm	424mm	424mm
Seat Tube Angle	73°	73°	73°	73°	73°	73°
Crank Length	170mm	170mm	175mm	175mm	175mm	175mm
Handlebar Width	640mm	640mm	640mm	640mm	640mm	640mm
Stem Length	60mm	75mm	75mm	90mm	90mm	105mm
Seatpost Length	300mm	350mm	350mm	400mm	400mm	400mm
