The Fuse Expert 29 thriving on the kind of technical trails that make other hardtails…

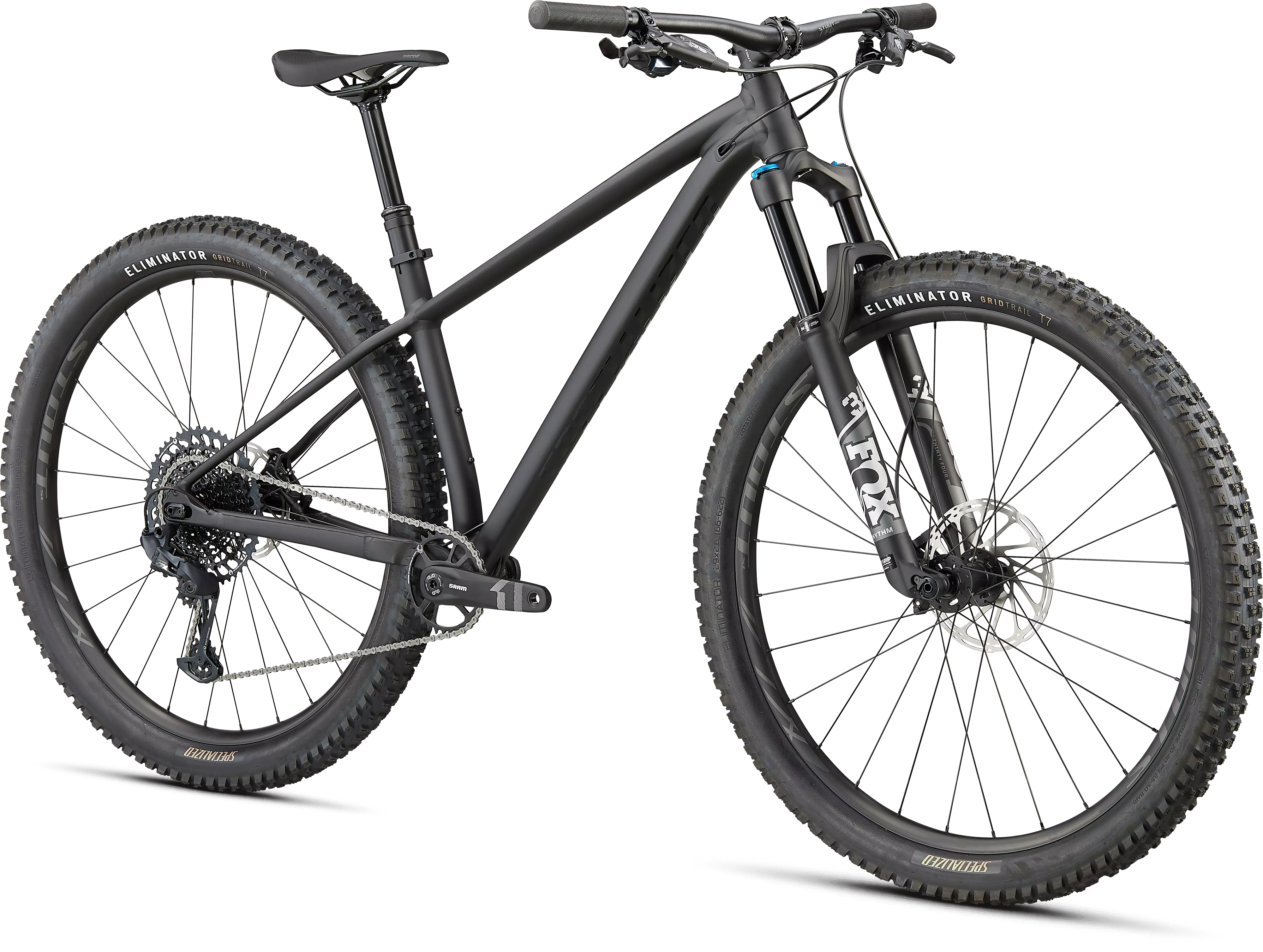

The Fuse Expert 29 thriving on the kind of technical trails that make other hardtails cry. The top-shelf Fuse Expert 29 brings all of that to play with its light-yet-burly M4 aluminum chassis and a component package that takes a beating and comes back for more.
130-millimeters of plush suspension courtesy of a Fox Float 34 Rythm fork.
SRAM GX Eagle 12-speed drivetrain gives you single-ring simplicity yet lets you tackle big climbs without coughing up a lung.
Stout Trail SL wheelset is light yet fends off abuse.
Frame
Specialized M4 Premium Aluminum, 148mm thru-axle, adjustable dropout, SS compatible, tapered head tube, internal cable routing
Seat Binder
Alloy, 38.6mm
Fork
FOX FLOAT 34 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 44mm offset, 130mm of travel
SeatPost
TranzX Dropper, 34.9mm, XS-S: 100mm, M: 125mm, L-XL: 150mm
Stem
Stout 3D-forged alloy, 31.8mm, 6-degree rise
Grips
Specialized Trail Grips
Handlebars
Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Front Brake
SRAM G2, 4 Piston, 180mm XS-M, 200mm L-XL
Rear Brake
SRAM G2, 4 Piston, 160mm XS-M, 180mm L-XL
Rear Derailleur
SRAM GX Eagle, 12-speed
Shift Levers
SRAM GX, trigger, 12-speed
Cassette
Sram XG-1275, 12-speed, 10-52t
Chain
SRAM, NX Eagle, 12-speed
Crankset
SRAM, X1 Alloy Eagle, 12-speed, 32T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Rims
Specialized Alloy, Tubeless Ready, 29mm internal width, 28h
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
Front Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 29x2.6"
Spokes
Stainless, 14g
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 29x2.6"
Inner Tubes
Specialized Turbo Tube 29X1.75-2.4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
XS | S | M | L | XL | |
---|---|---|---|---|---|
Crank Length | 170mm | 170mm | 170mm | 170mm | 175mm |
Handlebar Width | 750mm | 750mm | 780mm | 780mm | 780mm |
Stem Length | 45mm | 45mm | 45mm | 45mm | 45mm |
Saddle Width | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 356mm | 356mm | 406mm | 456mm | 456mm |
Front-Center | 698mm | 718mm | 738mm | 764mm | 790mm |
Seat-Tube Length | 340mm | 375mm | 410mm | 455mm | 505mm |
Seat-Tube Angle | 74° | 74° | 74° | 74° | 74° |
B-B Height | 315mm | 315mm | 315mm | 315mm | 315mm |
Chain-Stay Length - Long | 435mm | 435mm | 435mm | 435mm | 435mm |
Trail | 113mm | 113mm | 113mm | 113mm | 113mm |
Wheelbase | 1122mm | 1142mm | 1162mm | 1188mm | 1214mm |
Stack | 625mm | 625mm | 625mm | 639mm | 652mm |
Reach | 400mm | 420mm | 440mm | 460mm | 480mm |
Fork Rake/Offset | 46mm | 46mm | 46mm | 46mm | 46mm |
Fork Length (full) | 540mm | 540mm | 540mm | 540mm | 540mm |
Chain-Stay Length - Short | 420mm | 420mm | 420mm | 420mm | 420mm |
Bike Stand-Over Height | 727mm | 747mm | 750mm | 754mm | 793mm |
Head-Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
B-B Drop | 60mm | 60mm | 60mm | 60mm | 60mm |
Head-Tube Length | 95mm | 95mm | 110mm | 125mm | 95mm |
Top-Tube Length (horizontal) | 579mm | 599mm | 619mm | 643mm | 667mm |
