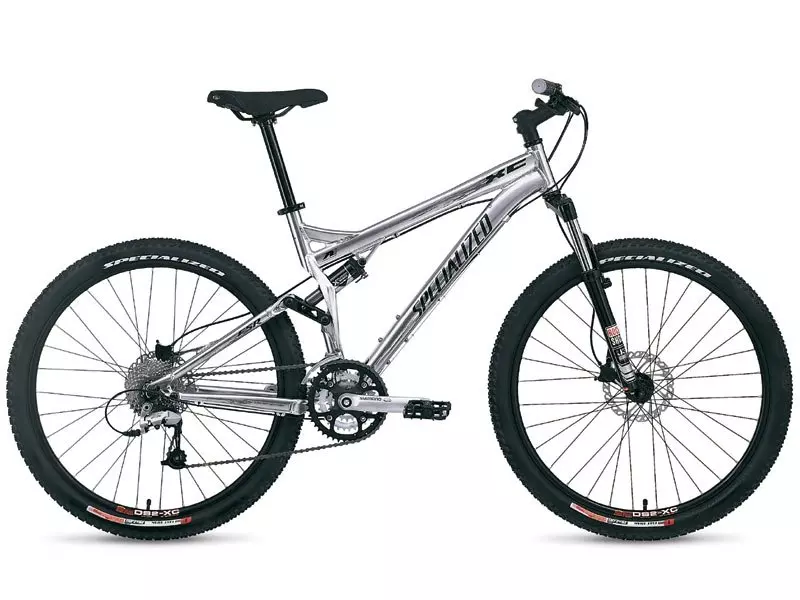

2006 FSRxc Disc (CE - Hydraulic)
Part No.: 9362-5603
5
1 Reviews
EXPERIENCE: XC TRAIL With the FSRxc, it's all about the trail (and riding as…
Color:
Dream Silver
Size:
One Size
Product Details
EXPERIENCE: XC TRAIL With the FSRxc, it's all about the trail (and riding as much of it as possible.) Essentially a more affordable version of their bigger brother Stumpjumper FSR bikes, each FSRxc delivers awesome suspension and geometry in a lightweight and highly efficient package so the rider can find the flow on more of his/her favorite trail in any given afternoon. This sweet balance of trail competence and cross country speed may lead one to ask, "Is the FSRxc a technical condition cross country bike or a fast all-mountain trail bike?" To which we proudly answer, "Yes."
FSR technology, A1 Premium Aluminum butted frame, ORE toptube and downtube, new lighter link, sealed cartridge bearings, disc only, 100mm travel, replaceable derailleur hanger, two sets of water bottle bosses
X-Fusion RLA Air shock with lock out and rebound adjustment
Rock Shox J3 fork with rebound adjustment, lock out, and alloy steerer, 100mm travel
Hayes Sole, hydraulic disc brakes V-cut rotors
Shimano 27-speed Deore/LX drive train
Custom Shimano M-460 Hollowtech crank set
Sun CR-18, doublewall rims with eyelets, CNC sidewalls matched to Specialized Stout/Shimano M475L disc hubs, alloy QR�s
Specialized Fastrack 26x2.0" tires, aramid bead, dual compound, 60 TPI
Technical Specifications
FRAMESET
FRAME
FSR technology, A1 Premium Aluminum butted frame, ORE toptube and downtube, new lighter link, sealed cartridge bearings, disc only, 100mm travel, replaceable derailleur hanger, two sets of water bottle bosses
HEADSET
1 1/8"" threadless, black steel cups, loose ball bearings with seals
SEAT BINDER
Alloy collar with QR, 34.9mm clamp ID, black
SUSPENSION
REAR SHOCK
X-Fusion RC air, lock out, rebound adjust, 6.5x1.5""
FORK
Rock Shox J3, reb adj., LO, & alloy steer, 100mm
WHEELS
FRONT TIRE
Specialized Fastrack 26x2.0"", Aramid bead, dual compound, 60 TPI
REAR TIRE
Specialized Fastrack 26x2.0"", Aramid bead, dual compound, 60 TPI
RIMS
Sun CR-18 doublewall w/eyelets, CNC sidewall, 32h
FRONT HUB
Specialized stout disc, loose ball bearing, high/low flange, 32h
REAR HUB
Shimano M-475L disc, 32h, 8/9spd, alloy QR
SPOKES
1.8mm Stainless, black, brass nipples
DRIVETRAIN
FRONT DERAILLEUR
Shimano M-510 Deore, 34.9mm clamp,top swing, botttom pull
REAR DERAILLEUR
Shimano M-570 Deore LX, long cage, standard spring
SHIFT LEVERS
Shimano M-510 Deore, 9spd
CHAIN
SRAM PC-951 w/Power Link
CRANKSET
Custom Shimano M-460 Hollowtech, square taper
CHAINRINGS
Shimano 22s/32s/44A
BOTTOM BRACKET
Shimano UN-25, 68mm shell, 113mm spindle
COCKPIT
STEM
Aluminum, 10 degree rise, TIG welded, black
HANDLEBARS
Specialized XC Low Rise, butted alloy, 640mm wide, 6 degree upsweep, 8 degree backsweep
SADDLE
Specialized Body Geometry technology, steel rails, dual density base
BRAKES
FRONT BRAKE
Hayes Sole hydraulic disc, V-cut rotor (L/XL: 180mm, S/M: 160mm)
REAR BRAKE
Hayes Sole hydraulic disc, 6"" V-cut rotor
BRAKE LEVERS
Hayes Sole w/HFX 9 lever
ACCESSORIES
PEDALS
Alloy platform
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | S - W | XL | M - W | L - W | |
|---|---|---|---|---|---|---|---|
| Bottom Bracket Height Low/Mid | 321mm | 321mm | 321mm | 321mm | 321mm | 321mm | 321mm |
| Head Tube Angle Low/Mid | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| Seat Tube Angle Low/Mid | 73° | 73° | 73° | 73° | 73° | 73° | 73° |
| Top Tube Length (Horizontal) | 551mm | 587mm | 612mm | 535mm | 638mm | 560mm | 595mm |
| Top Tube Length (Actual) | 535mm | 568mm | 590mm | 521mm | 618mm | 543mm | 574mm |
| Seat Tube Length, Center to Top | 433mm | 433mm | 483mm | 433mm | 534mm | 433mm | 483mm |
| Wheel Base | 1038mm | 1075mm | 1100mm | 1022mm | 1128mm | 1047mm | 1083mm |
| Standover Height | 732mm | 740mm | 753mm | 730mm | 762mm | 733mm | 753mm |
| Head Tube Length | 100mm | 110mm | 120mm | 100mm | 148mm | 100mm | 120mm |
| Chainstay Length | 424mm | 424mm | 424mm | 424mm | 424mm | 424mm | 424mm |
| Crank Length | 170mm | 175mm | 175mm | 170mm | 175mm | 170mm | 175mm |
| Handlebar Width | 640mm | 640mm | 640mm | 620mm | 640mm | 620mm | 620mm |
| Stem Length | 75mm | 90mm | 105mm | 120mm | 60mm | 75mm | 75mm |
| Seatpost Length | 350mm | 350mm | 400mm | 350mm | 400mm | 350mm | 350mm |
Manual Downloads
For safety warnings please refer to the documentation in the Manual Downloads section of this page.
