2014 Fatboy Expert
Part No.: 99514-3006
0 Reviews
All the fun of a fat bike with the performance of a Specialized. The Fatboy combines…
Color:
Gloss Blk/Flo Red
Size:
XXL
Product Details

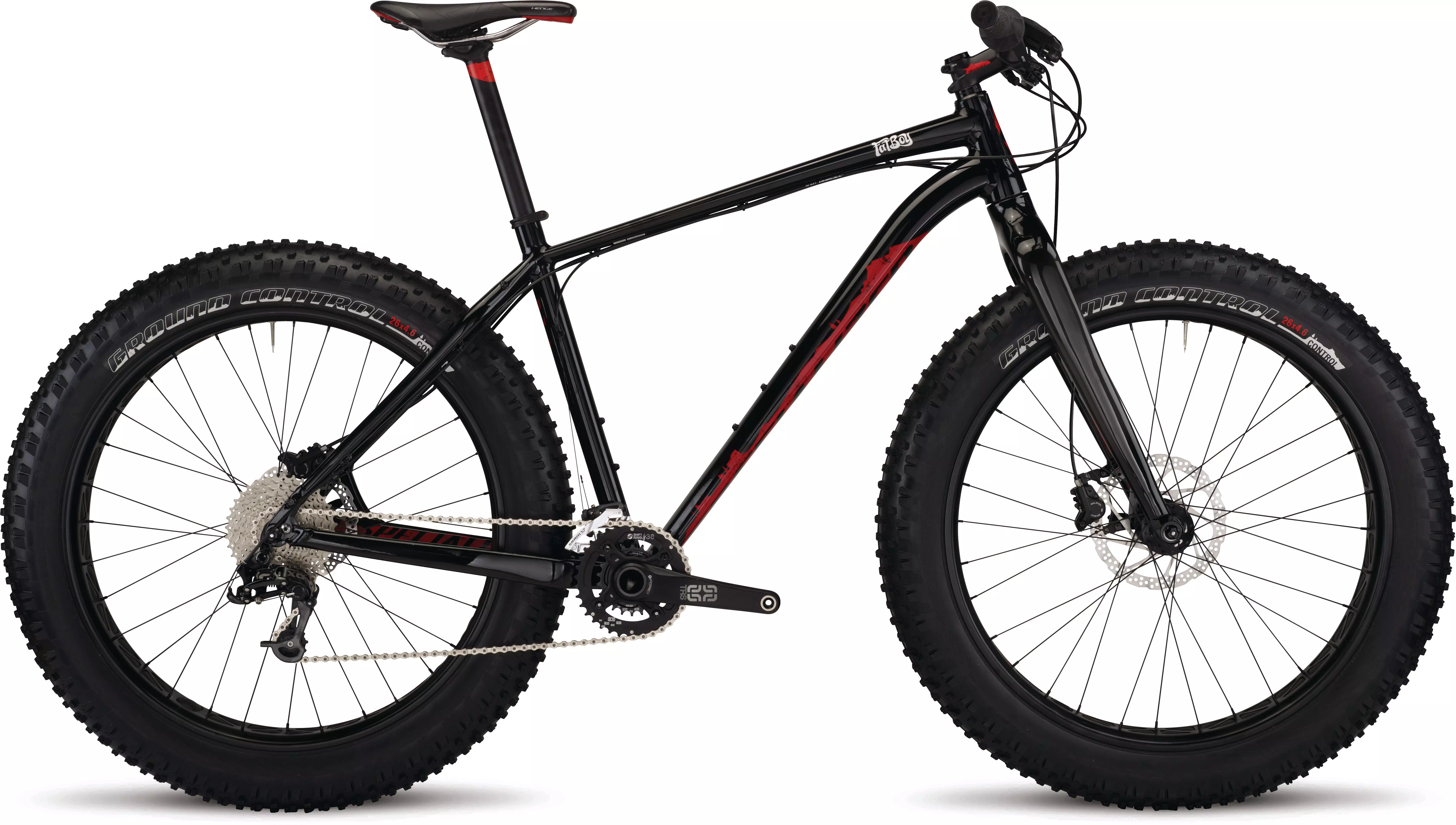

All the fun of a fat bike with the performance of a Specialized. The Fatboy combines a lightweight frame and fork with 4.6" Specialized Ground Control tires for nimble handling in the most extreme conditions.
New, fully butted M4 Premium Aluminum frame with 190mm rear spacing and a tapered headtube for a lightweight platform with stiffness where you need it and clearance for 5" tires
New, full monocoque, Specialized FACT carbon fiber fork with 5-inch tire clearance is super-lightweight and stiff
Custom e.thirteen 2x10 crankset with PF30 bottom bracket and 100mm spindle provide worry free and efficient pedaling
Shimano Deore hydraulic disc brakes provide powerful and consistent braking, regardless of the weather, temperature or terrain.
SRAM X0 Type 2 10-speed rear derailleur provides fast and reliable shifting that can handle all elements
Wide, 4.6" Specialized Ground Control tires with foldable aramid bead are light, fast rolling, and provide excellent traction regardless of the terrain
Technical Specifications
FRAMESET
FRAME
New Specialized M4 Premium Aluminum, Fat Bike Geometry, fully butted w/ smooth welds, tapered headtube, post-mount disc dropouts, replaceable alloy derailleur hanger
HEADSET
1-1/8"" upper and 1-1/2"" lower FSA, Campy style w/ integrated cartridge bearings, 3.8mm cone spacer
SEAT BINDER
Forged alloy, QR, 34.9mm
SUSPENSION
FORK
FACT carbon full monocoque, 5.0"" tire clearance, 135mm spacing
WHEELS
RIMS
Specialized Fatboy SL, alloy disc, single wall, 90mm wide, sleeve joint, hookless design, 32 hole
FRONT HUB
Specialized MTB disc, alloy, Hi Lo flange, sealed bearings, 135mm wide, alloy axle, QR, 32h
REAR HUB
Specialized MTB disc, alloy, Hi Lo flange, sealed bearings, 190mm wide, alloy axle, QR, 32h
SPOKES
Stainless, double butted, threadlock, 14g
FRONT TIRE
Specialized Ground Control, 26x4.6"", aramid bead, 120TPI
REAR TIRE
Specialized Ground Control, 26x4.6"", aramid bead, 120TPI
INNER TUBES
Standard presta valve
DRIVETRAIN
FRONT DERAILLEUR
SRAM X7, low direct mount
REAR DERAILLEUR
SRAM X0, Type 2, 10-speed
SHIFT LEVERS
SRAM S-Series, Grip Shift twist shifter, 10-speed
CASSETTE
Sunrace, 10-speed, , alloy spacers, alloy lock-ring, 11-36
CHAIN
KMC X-10L, hollow outer links
CRANKSET
Custom e.thirteen, 2 piece, PF30, 100mm spindle, 170mm/175mm length
CHAINRINGS
36/22
BOTTOM BRACKET
e.thirteen PF30, included w/ crankset
COCKPIT
SADDLE
Body Geometry Henge SL, hollow Cr-Mo rails, lite PU foam, 143mm
SEATPOST
Specialized alloy, 2-bolt, micro-adjust, 30.9mm, 350mm/400mm
STEM
Specialized 3D forged 6061 alloy, 4-bolt clamp, 6-degree rise, 60mm/70mm length, 31.8mm
HANDLEBARS
Specialized mini riser bar, 6061 double-butted alloy, 660/700mm wide, 10-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
SRAM, 92mm grip, included with SRAM S-Series GS shifter
BRAKES
FRONT BRAKE
Shimano Deore, BR-505, hydraulic disc, 180mm rotor
REAR BRAKE
Shimano Deore, BR-505, hydraulic disc, 160mm rotor
BRAKE LEVERS
Shimano Deore, hydraulic lever, w/ reach adj.
ACCESSORIES
PEDALS
Specialized Bennies, 6061 alloy body, sealed cartridge bearings, removal 4.5mm pins
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 15.5 | 17.5 | 19.0 | 21.0 | |
|---|---|---|---|---|
| Top Tube Length (Horizontal) | 576mm | 603mm | 625mm | 650mm |
| Seat-Post Length | 350mm | 350mm | 400mm | 400mm |
| Seat Tube Angle (Effective) | 73° | 73° | 73° | 73° |
| Seat Tube Angle (Actual) | 73° | 73° | 73° | 73° |
| Handle-Bar Width | 700mm | 700mm | 700mm | 700mm |
| Seat Tube Length, Center to Top | 394mm | 445mm | 483mm | 533mm |
| Bottom Bracket Drop | 60mm | 60mm | 60mm | 60mm |
| Bottom Bracket Height | 315mm | 315mm | 315mm | 315mm |
| Wheel Base | 1083mm | 1105mm | 1128mm | 1154mm |
| Standover Height | 757mm | 793mm | 820mm | 849mm |
| Stack | 590mm | 600mm | 615mm | 629mm |
| Reach | 395mm | 420mm | 437mm | 458mm |
| Head Tube Length | 110mm | 120mm | 135mm | 150mm |
| Head Tube Angle | 70.5° | 70.5° | 70.5° | 70.5° |
| Chainstay Length | 455mm | 455mm | 455mm | 455mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Stem Length | 60mm | 60mm | 70mm | 70mm |
Manual Downloads
For safety warnings please refer to the documentation in the Manual Downloads section of this page.
