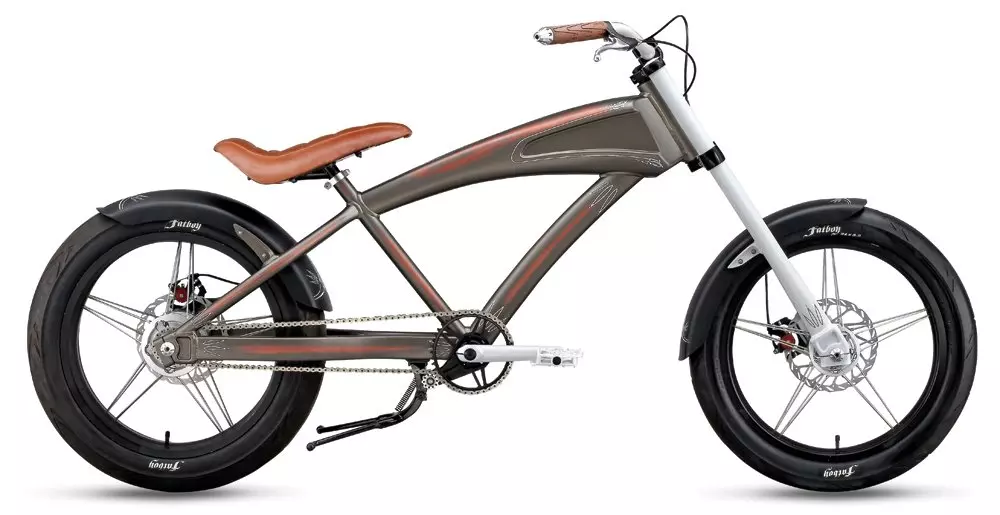

2009 Fatboy Chopper

0 Reviews

BUILT FOR THOSE WHO CARE more about showroom good looks than the Tour de France,…

Product Details

BUILT FOR THOSE WHO CARE more about showroom good looks than the Tour de France, this big boy is designed with fat tires, fat fenders, a wide, low riding saddle and all the plush detail you'd expect from a Hog-inspired cruiser bike.

The laid-back Fat Boy Moto frame is constructed of our A1 Premium Aluminum, with a Transform top tube, internal brake cable routing, and an integrated center-stand mount for a clean look and absolute style.
The Fat Boy A1 Premium Aluminum double-clamp fork is disc brake only and designed for chopper-specific strength.
Avid's BB5 mechanical disc brakes, paired with 8-inch G2 Clean Sweep rotors, provide sure and steady stopping power, whenever you need it.
The Fat Boy wheelset features our A1 Moto front and rear hubs that are forged and CNC machined for strength and a clean look, sealed cartridge bearings provide smooth-rolling, trouble-free performance, the wide Fat Boy 24x3.5-inch tires complete the moto look.
The moto-inspired Fat Boy Chopper saddle, with integrated post, is big and plush.

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminum, integrated headset, transform TT w/ internal brake cable routing, ISCG BB shell, forged dropouts w/ disc mount, 24x6"" wheel-specific, integrated centerstand mount

HEADSET

1-1/8"" threadless, integrated

SEAT BINDER

Specialized alloy w/ QR

SUSPENSION

FORK

Fat Boy A1 Premium Aluminum double clamp, forged dropouts and disc mount

WHEELS

FRONT TIRE

Specialized Fat Boy, 24x3.5""

REAR TIRE

Specialized Fat Boy, 24x3.5""

INNER TUBES

Specialized schraeder valve

RIMS

Fat Boy A1, 24 x 6"" rear, 24 x 3"" front

FRONT HUB

Specialized Fat Boy A1 Moto, Forged and CNC w/ sealed cartridge bearings and 10mm Cr-Mo axle

REAR HUB

Specialized Fat Boy A1 Moto, Forged and CNC w/ sealed cartridge bearings and 10mm Cr-Mo axle

SPOKES

2.8mm (9g) stainless Fat Boy Moto Spoke

DRIVETRAIN

CASSETTE

Shimano MX-30, single speed, 18t

CHAIN

KMC KOOL K710SL, 1/2"" x 1/8""

CRANKSET

Specialized Tubular Cr-Mo Moto, 3pc.

CHAINRINGS

CNC'd 6061-T6, 42t star design

BOTTOM BRACKET

Threaded cup, 4x cartridge bearing w/ Cr-Mo spindle

COCKPIT

STEM

Fat Boy A1 Premium Aluminum, 31.8mm clamp, integrated w/ upper fork clamp

HANDLEBARS

Fat Boy Cruiser, A1 premium Aluminum, 31.8 mm, 700mm wide

GRIPS

Specialized Fat Boy, Kraton

SADDLE

Fat Boy Chopper w/ integrated post

SEATPOST

Fat Boy Cr-Mo 30.9, integrated w/ saddle

BRAKES

FRONT BRAKE

Avid BB5, mechanical disc, 8"" G2 Clean Sweep rotor

REAR BRAKE

Avid BB5, mechanical disc, 8"" G2 Clean Sweep rotor

BRAKE LEVERS

Tektro alloy 4 finger w/ ball end

ACCESSORIES

PEDALS

Specialized alloy platform, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	Badass
Bottom Bracket Height - Low Setting	306mm
Top Tube Length (Horizontal)	822mm
Head Tube Height	188mm
Head Tube Angle - Low Setting	57°
Seat Tube Angle (Actual) - Low Setting	51°
Top Tube Length (Actual)	660mm
Seat Tube Length - Center to Top	463mm
Wheel Base	1390mm
Standover Height	723mm
Chainstay Length	630mm
Crank Length	175mm
Seatpost Length	350mm
