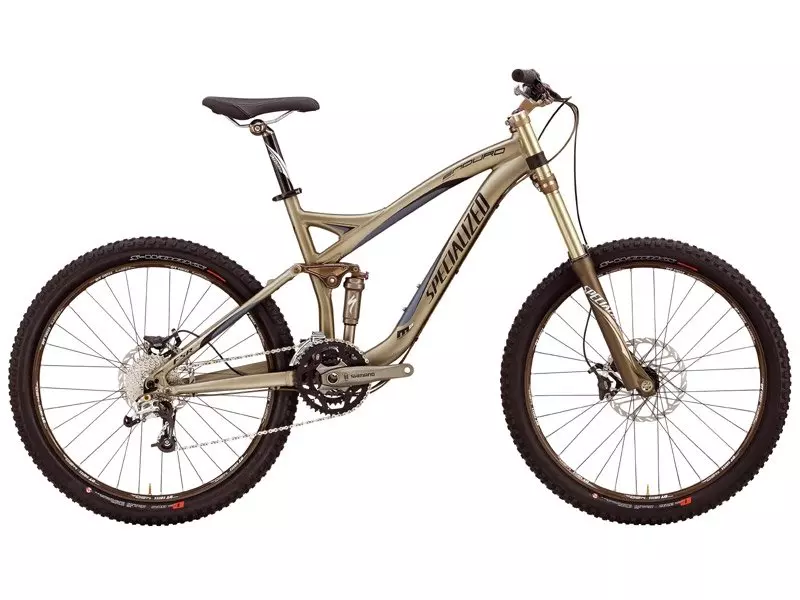

2008 Enduro SL Expert

0 Reviews

All Mountain CLIMB HIGHER, DESCEND FARTHER. With six inches of plush travel and totally…

Color:

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

All Mountain CLIMB HIGHER, DESCEND FARTHER. With six inches of plush travel and totally integrated suspension components, the Enduro® SL begs you to climb higher and descend farther. Inside Tech The SL's incredibly rigid E150 fork boasts a category leading stiffness-to-weight ratio, guaranteeing telepathic handling and faster accelerations. A totally integrated approach to suspension design and our patented Spike Valve, gives the E150 the same stability and bump management capabilities as the Enduro SL's AFR Shock. Useful Links Total Suspension Integration Suspension Setup Manuals/Tech Bulletins

Enduro M5 alloy, fully manipulated frame with ORE TT and DT, forged HT, 150mm travel
Specialized AFR Shock with Spike valve, air spring, adjustable rebound and low speed compression
Specialized Future Shock e150SL, dual crown with integrated stem, 150mm travel, rebound, compression and travel adjust, 25mm thru axle
Specialized stands behind the materials and workmanship of any Specialized branded fork or rear shock for a full 5 years.
Custom Avid Ultimate 7 hydraulic disc brakes
DT Swiss custom X420 rims, 24mm with eyelets, 32hole and DT Swiss Competition spokes
Specialized disc front hub, 25mm thru axle, 32hole
DT Swiss custom for Specialized 370 rear hub w/ DT RWS QR, 32h

Technical Specifications

FRAMESET

FRAME

Enduro M5 alloy, fully manipulated frame w/ ORE TT and DT, forged HT, sealed cartridge bearing pivots, ISCG mount adj. geometry, replaceable derailleur hanger, 150mm travel

HEADSET

1 1/8"" threadless, alloy cups w/ 10mm insertion, sealed cartridge bearing

SEAT BINDER

Alloy collar w/ QR, 34.9mm clamp ID

SUSPENSION

REAR SHOCK

Specialized AFR Shock w/ Spike valve, air spring, adjustable rebound and low speed compression, 7.875x2.25""

FORK

Specialized Future Shock e150SL, dual crown w/ integrated stem, 150mm travel, rebound, compresion and travel adjust, 25mm thru axle, alloy steerer

WHEELS

RIMS

DT Swiss custom for Specialized X420, 24mm w/ eyelets, 32h

FRONT HUB

Specialized disc, 25mm thru axle, 32h

REAR HUB

DT Swiss custom for Specialized 370 w/ DT RWS QR, 32h

SPOKES

DT Swiss Competition 1.8/1.6mm

FRONT TIRE

S-Works Eskar, 26x2.3"", 120 TPI, aramid tubeless ready bead, dual compound

REAR TIRE

S-Works Eskar, 26x2.3"", 120 TPI, aramid tubeless ready bead, dual compound

DRIVETRAIN

FRONT DERAILLEUR

Shimano M581 LX, DMD, top swing, dual pull

REAR DERAILLEUR

SRAM X-0, 9-speed, mid cage

SHIFT LEVERS

SRAM X-9, aluminum 9-speed trigger

CHAIN

SRAM PC-971 w/ Power Link

CRANKSET

Shimano M762 XT custom for Specialized

CHAINRINGS

22S/32A/44A, 4 bolt 104/64mm

BOTTOM BRACKET

Shimano M762 XT custom for Specialized

COCKPIT

STEM

Specialized Future Shock, 31.8mm clamp integrated w/ fork

HANDLEBARS

Specialized Enduro mid rise bar, 2014 alloy, 31.8mm, 6 degree up, 9 degree backsweep, 660mm wide

SADDLE

Specialized Enduro, hollow Cr-Mo rails, SL foam

BRAKES

REAR BRAKE

Custom Avid Ultimate 7, hydraulic disc, 185mm rotor

BRAKE LEVERS

Custom Avid Ultimate 7, hydraulic disc

FRONT BRAKE

Custom Avid Ultimate 7, hydraulic disc, 203mm rotor

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL
Bottom Bracket Height - Low Setting	356mm	356mm	356mm	356mm
Top Tube Length (Horizontal)	559mm	591mm	620mm	647mm
Head Tube Height	102mm	108mm	128mm	150mm
Head Tube Angle - Low Setting	67°	67°	67°	67°
Seat Tube Angle (Actual) - Low Setting	71.9°	71.9°	71.9°	71.9°
Seat Tube Angle (Effective) - Low Setting	74°	74°	74°	74°
Top Tube Length (Actual)	545mm	574mm	602mm	630mm
Head Tube Angle - High Setting	67.9°	67.9°	67.9°	67.9°
Bottom Bracket Height - High Setting	367mm	367mm	367mm	367mm
Seat Tube Angle (Actual) - High Setting	72.8°	72.8°	72.8°	72.8°
Seat Tube Angle (Effective) - High Setting	73.1°	73.1°	73.1°	73.1°
Seat Tube Length - Center to Top	421mm	444mm	483mm	533mm
Wheel Base	1115mm	1147mm	1177mm	1205mm
Standover Height	742mm	748mm	762mm	782mm
Chainstay Length	421mm	421mm	421mm	421mm
Crank Length	170mm	175mm	175mm	175mm
Handlebar Width	660mm	660mm	660mm	660mm
Stem Length	60mm	80mm	80mm	100mm
Seatpost Length	350mm	350mm	400mm	400mm
