2020 Demo 8 27.5
$4,899.00
5
3 Reviews
Your speed shouldn't be determined by the size of your checking account—this is the…
Color:
GLOSS BLACK / WHITE
What's my size?
Select a Size
Product Details
Your speed shouldn't be determined by the size of your checking account—this is the logic behind the Demo 8 27.5. It's a speed-and-steeze wagon equipped with a chassis that's proven itself the world over, and we've decked out with a cost-effective, thoroughly kick-ass component mix.
PROVEN ON THE TOUGHEST TRACKS
When you're sending it, you need confidence in your bike. No material has earned its keep on the downhill circuit like our M5 aluminum. The stuff is stiff, lightweight, and strong as hell. Same goes for the burly 1.5-inch forged head tube and iconic, single-sided seat mast design.
BUILT TO LAST. BUILT TO BE FAST.
The Demo 8 wants to be pushed harder and faster—dollar signs be damned. You get 200mm of front and rear suspension via a RockShox BoXXer Select 27.5 and a custom-tuned FOX VAN RC. Other highpoints include SRAM's powerful Guide RE brakes and a durable, 1X SRAM drivetrain.
MASSIVE BANG FOR YOUR BUCK
• The same iconic Demo frame has carried countless riders to podiums the world over.
• RockShox BoXXer Select RC fork and FOX VAN RC rear shock dish out 200mm of squish.
• SRAM GX DH drivetrain gives you reliable, single-ring simplicity.
Technical Specifications
FRAMESET
Frame
M5 alloy, S3 Geometry, carbon seatstay, BB30, full internal cable routing, 135mm dropouts, lipped and sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
Seat Binder
Alloy, 34.9mm
COCKPIT
Saddle
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SeatPost
Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm
Stem
Specialized Direct Mount DH Stem, two-piece, forged alloy, 45mm
Tape
Specialized Trail Grips
Handlebars
Specialized, 7050 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 800mm width
WHEELS
Rims
Roval 27.5" Alloy DH, 28mm internal width, 32h, tubeless ready
Front Hub
Specialized disc, alloy flange & disc mount, sealed cartridge bearings, 20x110mm thru-axle, 32h
Rear Hub
Specialized disc, sealed cartridge bearings, 12x135mm spacing, 32h
Front Tire
Butcher, DH casing, 60 TPI, wire bead, 27.5 x 2.5"
Spokes
DT Swiss Industry
Rear Tire
Butcher, DH casing, 60 TPI, wire bead, 27.5 x 2.3"
Inner Tubes
Presta, 40mm valve
Suspension
Rear Shock
Custom FOX Van RC, rebound & compression adjust, 9.5x3.0"
Fork
RockShox BoXXer Select 27.5, DebonAir spring, Charger RC damper w/ adjustable low-speed compression, adjustable rebound, short crown, 20x110mm thru-axle, 46mm offset, 200mm of travel
DRIVETRAIN
Rear Derailleur
SRAM GX DH, 7-speed, trigger
Shift Levers
SRAM GX DH, trigger, 7-speed
Cassette
SRAM GX DH, 7-speed, 11-24t
Chain
SRAM PC1110 w/ Powerlink™
Crankset
Custom SRAM Descendant, BB30, 7050 alloy arms, 165mm
Chainrings
Steel, 30T
Bottom Bracket
SRAM BB30, 83mm
BRAKES
Front Brake
SRAM Guide RE, 4-piston caliper, hydraulic disc, 200mm
Rear Brake
SRAM Guide RE, 4-piston caliper, hydraulic disc, 180mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

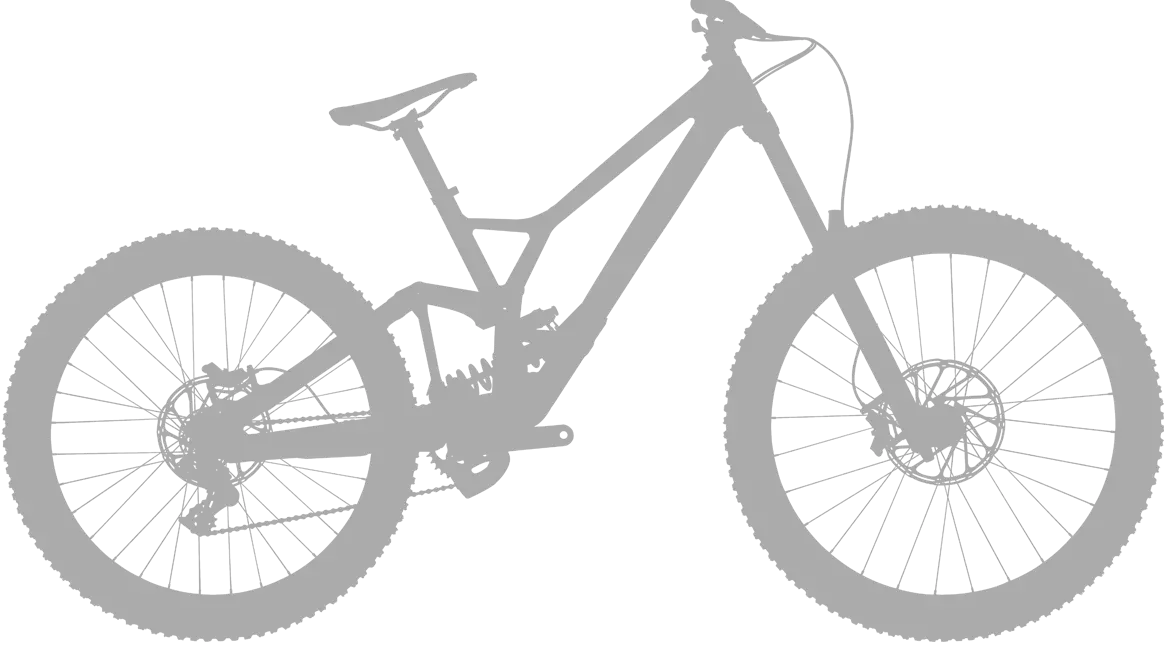

Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 165mm | 165mm | 165mm | 165mm |
| Handlebar Width | 800mm | 800mm | 800mm | 800mm |
| Stem Length | 45mm | 45mm | 45mm | 45mm |
| Saddle Width | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 300mm | 300mm | 300mm | 300mm |
| Stack | 614mm | 614mm | 614mm | 614mm |
| Reach | 395mm | 420mm | 440mm | 460mm |
| Head-Tube Length | 105mm | 105mm | 105mm | 105mm |
| Head-Tube Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| B-B Height | 342mm | 342mm | 342mm | 342mm |
| B-B Drop | 12mm | 12mm | 12mm | 12mm |
| Trail | 118mm | 118mm | 118mm | 118mm |
| Fork Length (full) | 590mm | 590mm | 590mm | 590mm |
| Fork Rake/Offset | 52mm | 52mm | 52mm | 52mm |
| Front-Center | 754mm | 779mm | 799mm | 819mm |
| Chain-Stay Length | 430mm | 430mm | 430mm | 430mm |
| Wheelbase | 1183mm | 1208mm | 1228mm | 1248mm |
| Top-Tube Length (horizontal) | 571mm | 596mm | 616mm | 636mm |
| Bike Stand-Over Height | 698mm | 698mm | 698mm | 698mm |
| Seat-Tube Length | 394mm | 394mm | 419mm | 419mm |
| Seat-Tube Angle | 74° | 74° | 74° | 74° |
| Handlebar Width | 780mm | 780mm | 780mm | 780mm |
| Stem Length | 45mm | 45mm | 45mm | 45mm |
| Crank Length | 165mm | 165mm | 165mm | 165mm |
| Seatpost Length | 367mm | 367mm | 367mm | 367mm |
Manual Downloads
For safety warnings please refer to the documentation in the Manual Downloads section of this page.
