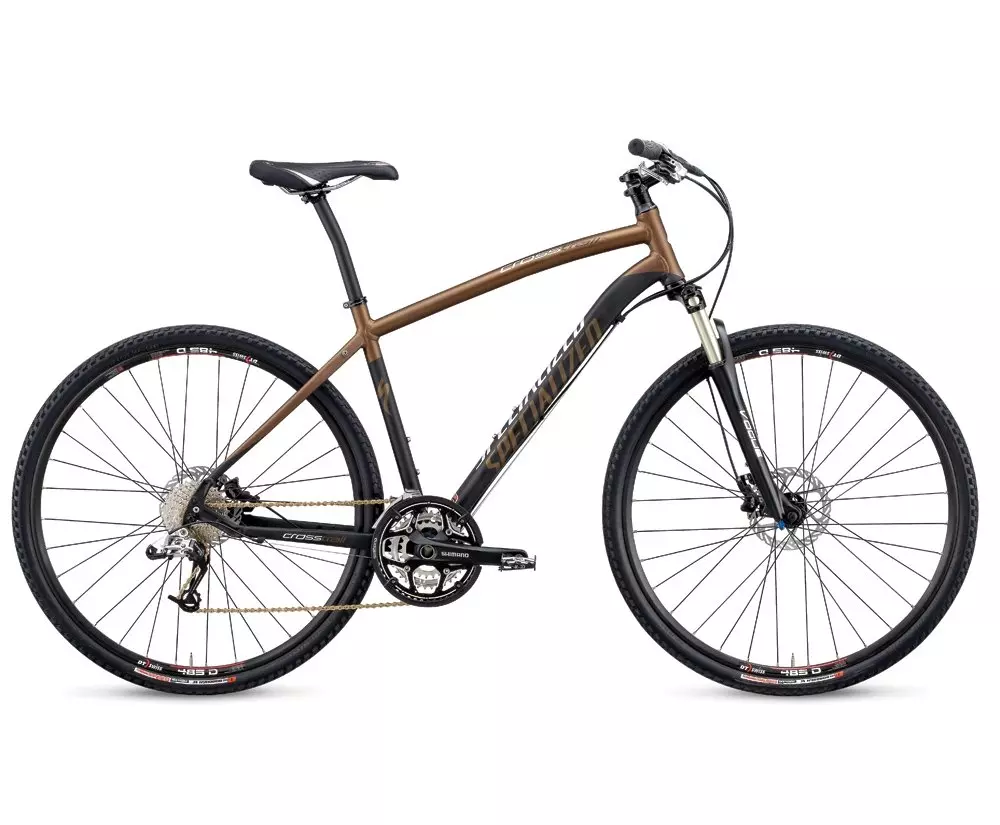

2009 CrossTrail Pro

COMBINING FAST-ROLLING 700C WHEELS with an efficient aluminum mountain bike chassis…

Color:

Satin Root Beer/Black

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

COMBINING FAST-ROLLING 700C WHEELS with an efficient aluminum mountain bike chassis and Body Geometry components, the Crosstrail is a true hybrid— built to inspire a blend of off-road exploits and smooth-rolling fun, for whatever mood you're in.

Hydraulic disc brakes (front and rear) provide solid braking with a smooth feel at the lever. G2 Clean Sweep rotors make for controllable stops.
The 700c rims are double-walled and eyeleted for strength.
The 75mm-travel fork features hydraulic lockout and an external preload adjuster so you can easily fine-tune the ride.
The M4 Premium Aluminum frame features an integrated headset for a clean look and forged dropouts for added strength.
The long-cage 9-speed rear derailleur offers precise shifting over a wide gear range.

Technical Specifications

FRAMESET

FRAME

Specialized M4 Manipulated Alloy frame, fully butted, integrated headset, ORE DT, forged dropouts w/ replaceable 98954020 hanger, integrated kickstand mount, chainstay disc mount

HEADSET

Specialized integrated, Campy style cartridge bearings

SEAT BINDER

Specialized forged alloy

SUSPENSION

FORK

RST Vogue Pro SL 700, 75mm, 1pc. magnesium lower w/ disc mount and alloy steerer, gold alloy 28.6mm stanchions, hyd. LO, reb. and pre-load adj., spring type seal

WHEELS

FRONT TIRE

Specialized Borough XC Pro 700x45c, 60TPI, wire bead

REAR TIRE

Specialized Borough XC Pro 700x45c, 60TPI, wire bead

INNER TUBES

Specialized schraeder valve

RIMS

DT-Swiss 445D, 700c, double wall disc, pin joint, eyelets, 28h

FRONT HUB

Specialized Hi Lo, forged alloy, sealed cartridge bearings, ground races, 28h

REAR HUB

Shimano FH-M525, alloy, 32h, QR

SPOKES

15g (1.8mm) stainless

DRIVETRAIN

FRONT DERAILLEUR

Shimano FD-M660M6, 31.8mm clamp, top swing, dual pull

REAR DERAILLEUR

Shimano X-9, long cage

SHIFT LEVERS

SRAM X7, 9-speed trigger

CASSETTE

Shimano HG-61, 9-speed, 11-32t

CHAIN

KMC X9SL w/ reuseable Missing Link

CRANKSET

Shimano FCM-543-LK, w/ chainguard

CHAINRINGS

48A x 36A x 26S

BOTTOM BRACKET

Shimano external w/ crankset

COCKPIT

STEM

Specialized 3D forged, 4-bolt, 31.8mm, 7 degree rise

HANDLEBARS

Specialized alloy riser bar, 31.8mm, 25mm rise, 620mm wide, 8 degree back sweep, 8 degree up

GRIPS

Specialized MTB XC locking, open end, 132.3mm

SADDLE

Specialized Indie XC Sport, Body Geometry, 143mm width, Cr-Mo rails, front and rear bumpers

SEATPOST

Specialized alloy two bolt, 27.2mm

BRAKES

FRONT BRAKE

Avid Juicy 4 SL, hydraulic disc, alloy backed brake pads, organic compound, G2 Clean Sweep rotor

REAR BRAKE

Avid Juicy 4 SL, hydraulic disc, alloy backed brake pads, organic compound, G2 Clean Sweep rotor

BRAKE LEVERS

Avid Juicy 4 SL

ACCESSORIES

PEDALS

Alloy body, sealed bearings, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	38 - S	43 - M	49 - L	53 - XL	58 - XXL
Ground-Top	65mm	65mm	65mm	65mm	65mm
Seat-Tube Angle	99°	96°	96°	92°	92°
Head-Tube Length	170mm	170mm	170mm	175mm	175mm
Head-Tube Angle	638°	654°	675°	684°	692°
Chain-Stay Length	43mm	43mm	43mm	43mm	43mm
Top-Tube Length, Horizontal	74mm	74mm	74mm	73.5mm	72.5mm
Front-Center	120mm	130mm	140mm	150mm	155mm
Handle-Bar Width	350mm	350mm	350mm	350mm	350mm
Stand-Over Height	90mm	90mm	90mm	105mm	105mm
Seat-Tube Length, B-B Center to Top	442mm	442mm	442mm	442mm	442mm
Fork Rake	1072mm	1088mm	1109mm	1118mm	1126mm
B-B Drop	68.5mm	69mm	69mm	69.5mm	69.5mm
Stack	381mm	432mm	483mm	533mm	584mm
Reach	575mm	590mm	605mm	620mm	635mm
Trail	750mm	779mm	808mm	834mm	864mm
Wheelbase	620mm	620mm	620mm	620mm	620mm
