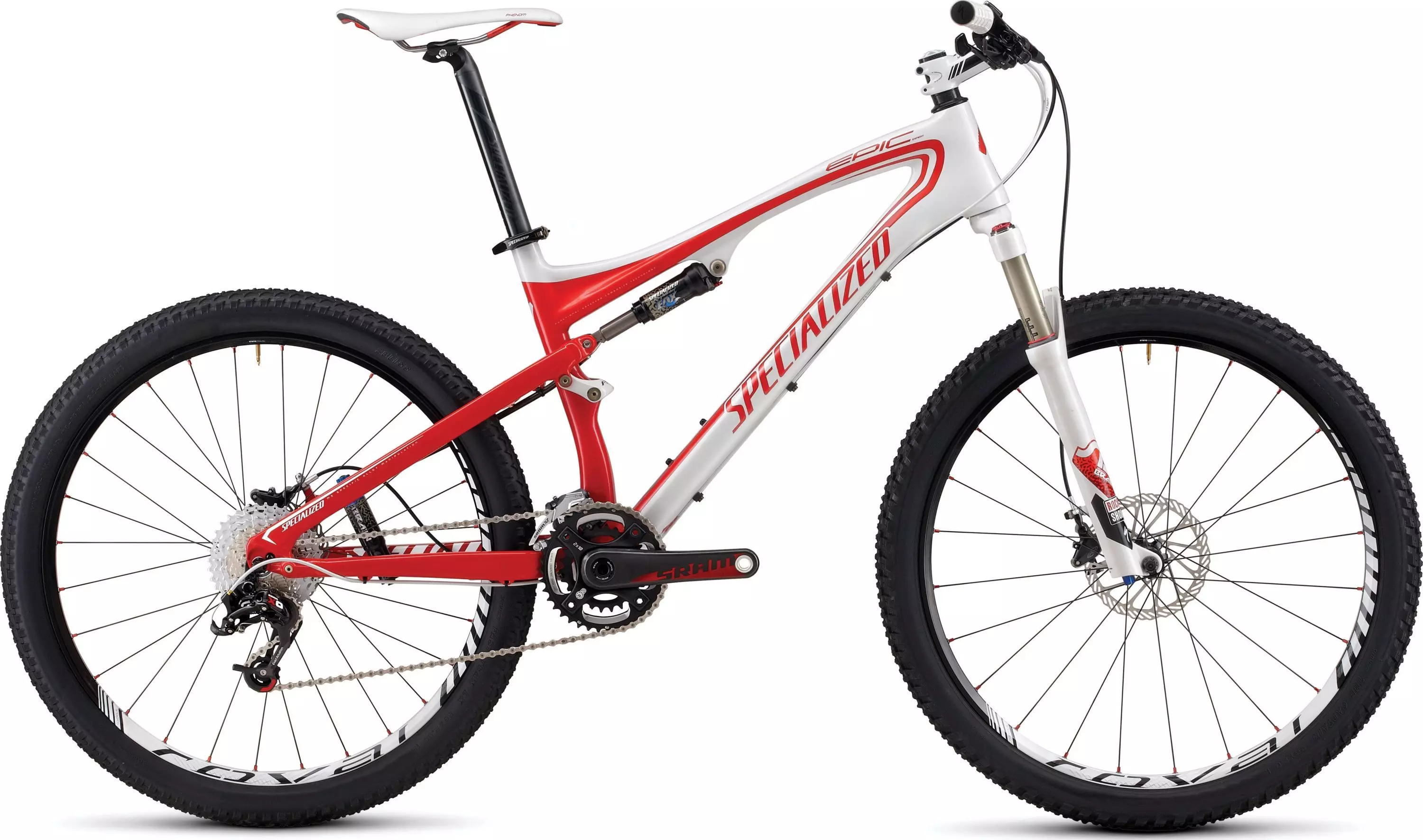

2011 Epic Expert Carbon
0 Bewertungen
Diese Performance gibt es sonst nur bei den Top-Modellen namens S-Works.
Produktdetails
Diese Performance gibt es sonst nur bei den Top-Modellen namens S-Works.
Custom RockShox SID 100mm Brain fork features rebound and Brain Fade adjustments to dial in the perfect platform for XC bliss
Super light, custom SRAM Carbon S-2200 10-speed double crankset with PF-30 spindle and removable spider offers stiffness, performance, and durability
Custom Avid Elixir R CR SL brakes/levers, with tool-free reach adjust and alloy backed semi-metallic pads, offer lightweight, power-packed control for ripping up XC trails
FACT IS 9m carbon frame with M5 alloy rear triangle and sealed cartridge bearing pivots delivers strength, rigidity, and suppleness to create an uncompromising 100mm-travel Competitive XC bike
Specialized and Fox blend their brains to develop the FlowControl Mini Brain shock with Brain Fade inertia valve, air spring, and adjustable rebound for World Cup - and local trail - domination
Newly revamped for increased stiffness, the Roval Control AL wheelset with durable alloy hubs, oversized 28mm end caps, and stainless DT Swiss spokes powers over the bumpy stuff with greater control
Technische Spezifikationen
FRAMESET
FRAME
FACT 9m carbon front triangle, FACT IS construction, gussetless TT S/M, M5 aluminum chainstays & seatstays, tapered HT, carbon PF-30 BB, 135mm drop-outs, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm travel
HEADSET
1-1/8 and 1.5"" Threadless, Campy style upper with 1.5"" lower, cartridge bearings
SEAT BINDER
36.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, for carbon frame
SUSPENSION
REAR SHOCK
Fox/Specialized remote Mini-Brain, inertia valve, w/ Brain Fade adjust, 187x47mm
FORK
Custom RockShox SID w/Brain, inertia valve damper, air spring, tapered alloy steerer, Brain Fade and rebound adj., QR, 100mm travel
WHEELS
RIMS
Roval Control AL, alloy disc, 24mm, 24/28h
FRONT HUB
Roval Control AL, alloy disc, OS 28mm end caps, QR, 24h
REAR HUB
Roval Control AL, QR, 32h
SPOKES
DT Swiss Competition 1.8/1.6mm stainless
FRONT TIRE
S-Works ""The Captain"", 120 TPI, 2Bliss ready aramid bead, dual compound, 26x2.0""
REAR TIRE
S-Works Fast Trak LK, 120 TPI, 2Bliss ready aramid bead, dual compound, 26x2.0""
INNER TUBES
Ultralight presta valve
DRIVETRAIN
FRONT DERAILLEUR
SRAM X.7,10-speed, S3 direct mount for DMD, bottom pull
REAR DERAILLEUR
SRAM X.0, 10-speed, mid cage
SHIFT LEVERS
SRAM X.9, 10-speed, aluminum trigger
CASSETTE
Shimano HG81, 10-speed, 11-36t
CHAIN
KMC X10, 10-speed, w/ reuseable Missing Link, nickel plates
CRANKSET
Custom SRAM Carbon S-2200, 10-speed XC double, PF-30, removeable spider, S: 170mm, others: 175mm
CHAINRINGS
39A x 26A, 4-bolt
BOTTOM BRACKET
SRAM PF-30, OS press-in bearing, sealed cartridge
COCKPIT
SEATPOST
2014 butted alloy, single bolt setback, 30.9mm, 400mm
STEM
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise
HANDLEBARS
Specialized XC low-rise bar, 7050 butted alloy, 660mm wide, 8 degree back sweep, 6 degree up, 31.8mm
GRIPS
Specialized lock-on, S/M: Grappler, Other: Rocca
SADDLE
Specialized BG Phenom Comp, hollow Cr-Mo rails, 143mm width
BRAKES
FRONT BRAKE
Custom Avid Elixir R CR SL, hydraulic disc, tool-less pad contact & reach adj., alloy backed semi-metallic pads, stainless hardware, S/M: 160mm, L/XL: 185mm rotor
REAR BRAKE
Custom Avid Elixir R CR SL, hydraulic disc, tool-less pad contact & reach adj., alloy backed semi-metallic pads, stainless hardware, 160mm rotor
BRAKE LEVERS
Custom Avid Elixir R CR SL, hydraulic disc, tool-less adj. reach and pad contact, alloy lever blade
ACCESSORIES
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
* Gewichte basieren auf der Produktion lackierter Rahmen, wie abgebildet. Tatsächliche Gewichte variieren je nach Farbgebung, Rahmengröße und Komponentenvariation. Spezifikationen können ohne Vorankündigung geändert werden.
Geometrie
| S | M | L | XL | |
|---|---|---|---|---|
| Mitte Tretlager - Mitte Vorderachse | 892mm | 902mm | 920mm | 949mm |
| Tretlagerhöhe 650x2.8" | 331mm | 331mm | 331mm | 331mm |
| Oberrohrlänge (horizontal) | 554mm | 589mm | 615mm | 641mm |
| Steuerrohrhöhe | 125mm | 135mm | 155mm | 185mm |
| Vorlauf | 70° | 70° | 70° | 70° |
| Radstand | 71.5° | 71.5° | 71.5° | 71.5° |
| Seat Tube Angle (Effective) - Low Setting | 74° | 74° | 74° | 74° |
| Oberrohrlänge tatsächlich | 527mm | 560mm | 586mm | 615mm |
| Seat Tube Length - Center to Top | 394mm | 424mm | 463mm | 520mm |
| Radstand | 1060mm | 1096mm | 1124mm | 1152mm |
| Überstandshöhe | 755mm | 765mm | 774mm | 790mm |
| Stack | 561mm | 571mm | 589mm | 618mm |
| Reach | 393mm | 425mm | 446mm | 464mm |
| Kettenstreben-Länge | 425mm | 425mm | 425mm | 425mm |
| Kurbellänge | 170mm | 175mm | 175mm | 175mm |
| Lenkerbreite | 660mm | 660mm | 660mm | 660mm |
| Vorbaulänge | 75mm | 90mm | 105mm | 105mm |
| Länge Sattelstütze | 400mm | 400mm | 400mm | 400mm |
