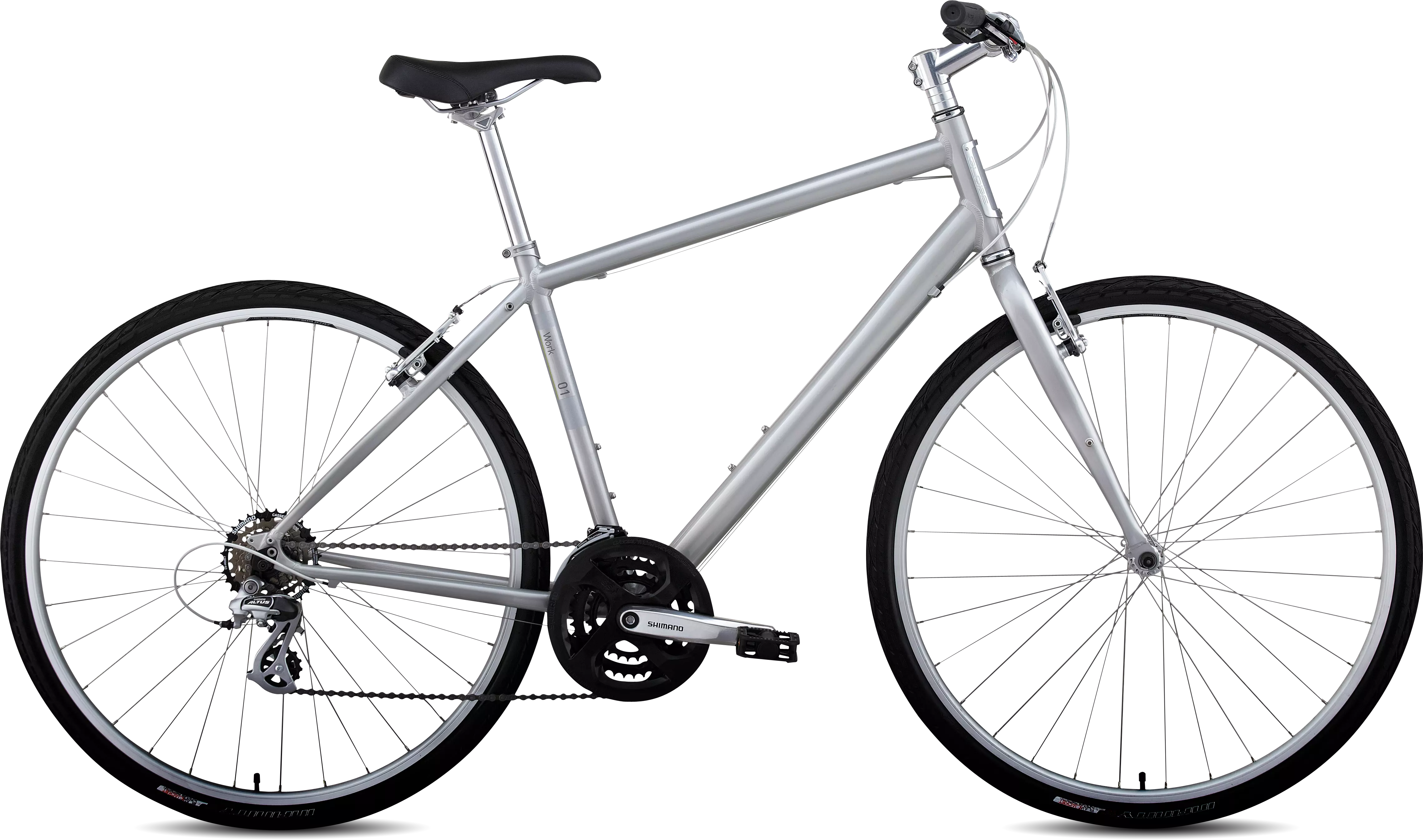

2012 Work
0 Reviews
The high-value, no-nonsense Work is perfect for the commuter who wants a light weight…
Product Details
The high-value, no-nonsense Work is perfect for the commuter who wants a light weight bike with an upright position, predictable handling, and rack/fender mounts for added versatility
Lightweight Hi-Ten fork is super tough with a classic design
City grips look stylish and keep hands comfortably and safely in place
Shimano Altus 7-speed rear derailleur gives you the right gear every time
Classic saddle is soft and supportive for efficient comfort, with center groove for those sensitive areas, and bumpers for durability
Uber-tough but lightweight, this Globe A1 Premium Aluminum frame with trekking design and fully-manipulated tubing has fender/rack mounts for all your commuting needs
Alloy, double-wall, 24mm rims are light and strong
Technical Specifications
FRAMESET
FRAME
Globe A1 Premium Aluminum trekking design, fully manipulated tubing w/ fender and rack braze-ons, integrated kickstand mount, w/ forged dropouts
SEAT BINDER
Globe forged alloy extra slim clamp, 31.8mm
FORK
Globe Hi-Ten straight-blade steel fork
HEADSET
1-1/8"" Ahead, loose ball retainers, cold-forged Cr-Mo cups
WHEELS
RIMS
Alloy double-wall
FRONT HUB
Forged alloy, double sealed, ground race, QR
REAR HUB
Forged alloy, double-sealed, cassette, QR, 32h
SPOKES
2mm (14g) stainless
FRONT TIRE
Specialized Infinity w/ Flak Jacket protection, 26 TPI, wire bead, 700x38c
REAR TIRE
Specialized Infinity w/ Flak Jacket protection, 26 TPI, wire bead, 700x38c
INNER TUBES
Schrader valve
DRIVETRAIN
SHIFT LEVERS
Shimano EF-51, EZ Fire, 7-speed
FRONT DERAILLEUR
Shimano, top swing, dual pull
REAR DERAILLEUR
Shimano Altus, 7-speed
CASSETTE
Shimano, 7-speed, 12-32t
CRANKSET
Shimano FCM131, w/ chainguard
CHAINRINGS
48/38/28, w/ chainguard
BOTTOM BRACKET
Cartridge bearing, square spindle w/ crank stop right side, capless bolts
CHAIN
KMC Z7
COCKPIT
TAPE
Globe City 140mm close type
SADDLE
Globe Work men's, 155mm
SEATPOST
Alloy, 2-bolt forged head, 27.2mm, 12.5mm offset
HANDLEBARS
Alloy riser bar, 25.4mm, 25mm rise, 8 degree back sweep, 6 degree up
STEM
Forged alloy, 4-bolt, 25.4mm, 1-1/8"" w/ 15 degree rise
BRAKES
FRONT BRAKE
Alloy linear pull, 1pc. pad
REAR BRAKE
Alloy linear pull, 1pc. pad
BRAKE LEVERS
Shimano EF-51 integrated w/ shifter
ACCESSORIES
PEDALS
Composite platform body, sealed loose ball bearings
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | SM | MD | LG | XL | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 73.5° | 73.5° | 73.5° | 73° | 73° |
| Head-Tube Length | 140mm | 160mm | 175mm | 200mm | 235mm |
| Seat-Post Length | 300mm | 300mm | 300mm | 350mm | 350mm |
| Head-Tube Angle | 70° | 70.5° | 71° | 71.5° | 71.5° |
| Chain-Stay Length | 460mm | 460mm | 460mm | 460mm | 460mm |
| Top-Tube Length, Horizontal | 560mm | 575mm | 585mm | 605mm | 630mm |
| Front-Center | 632mm | 643mm | 649mm | 658mm | 684mm |
| Handle-Bar Width | 640mm | 640mm | 640mm | 640mm | 640mm |
| Stand-Over Height | 728mm | 764mm | 796mm | 832mm | 868mm |
| Seat-Tube Length, B-B Center to Top | 395mm | 440mm | 485mm | 530mm | 570mm |
| Fork Rake | 51mm | 51mm | 51mm | 51mm | 51mm |
| B-B Drop | 70mm | 70mm | 70mm | 70mm | 70mm |
| Trail | 76mm | 72mm | 69mm | 66mm | 66mm |
| Wheelbase | 1083mm | 1094mm | 1100mm | 1109mm | 1135mm |
| Crank Length | 170mm | 170mm | 170mm | 170mm | 170mm |
| Stem Length | 75mm | 75mm | 75mm | 90mm | 90mm |
