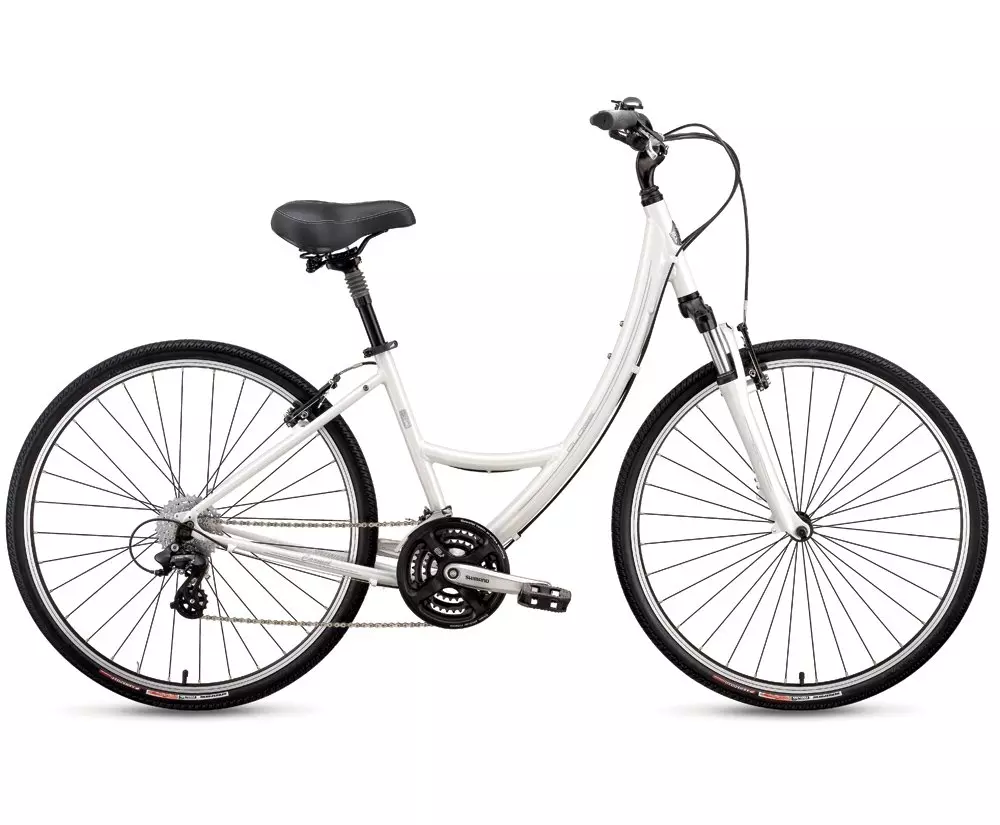

2009 Women's Globe Carmel 3 700c

0 Reviews

The Carmel is a no-brainer. Zero intimidation factor. All fun. Anyone and everyone…

Product Details

The Carmel is a no-brainer. Zero intimidation factor. All fun. Anyone and everyone who's looking for unsurpassed comfort, easy travels and feeling like a kid again will love this bike.

Our A1 Premium Aluminum frame features our Ground Control geometry for an upright and comfortable seating position that's closer to the ground, step-through frame for easy on and off.
The suspension fork uses coil/MCU springs for a smooth ride and external preload adjustment for easy fine-tuning.
Globe 700c rims are double-walled for strength and machined sidewalls make for smooth braking.
Specialized Hemisphere 700x38c tires are smooth rolling, and Armadillo casing makes them virtually puncture-proof.
The wide Comfort Plus saddle has springs and a suspension seatpost to take the edge off.
A Specialized quick release allows tool-less adjustments to seat height.

Technical Specifications

FRAMESET

FRAME

Globe A1 Premium Aluminum, ground control geometry, 700c comfort frame, formed tubes w/ integrated kickstand mount, forged dropouts w/ replaceable 98954020 hanger

HEADSET

Specialized 1-1/8"" threaded, loose ball

SEAT BINDER

Specialized alloy w/ QR

SUSPENSION

FORK

SR Suntour NEX-4110-700, 63mm, 1pc. alloy lower, Hi-Ten stanchions and steerer, coil/mcu w/ preload adj., spring assisted seals

WHEELS

FRONT TIRE

Specialized Hemisphere, 700x1.95"", 60TPI, wire bead, Armadillo casing

REAR TIRE

Specialized Hemisphere, 700x1.95"", 60TPI, wire bead, Armadillo casing

INNER TUBES

Specialized schraeder valve

RIMS

Specialized Globe, 700c, 32h, double wall w/ machine sidewalls, 32h

FRONT HUB

Specialized, forged alloy, double sealed, polished races, 32h, steel QR

REAR HUB

Specialized, forged alloy, double sealed, ground race, cassette, QR, 32h

SPOKES

1.8mm (15g) stainless

DRIVETRAIN

FRONT DERAILLEUR

Shimano FD-C051BM, 31.8mm clamp, top swing, dual pull

REAR DERAILLEUR

Shimano Acera

SHIFT LEVERS

Shimano SL-MC40, 8-speed, rapid fire

CASSETTE

Shimano HG-40, 8-speed, 11-32t

CHAIN

KMC X8 w/ reuseable Missing Link

CRANKSET

Shimano FC-M191, w/ chainguard

CHAINRINGS

48 x 38 x 28t

BOTTOM BRACKET

FSA BB-7420, cartridge bearings, 68mm x 122.5mm for 47.5mm chain line

COCKPIT

STEM

Globe ground control, 4-bolt, alloy head/Cr-Mo quill, 25.4mm clamp

HANDLEBARS

Globe comfort riser bar, 25.4mm, 60mm rise, 620mm wide, 15 degree back sweep, 5 degree up

GRIPS

Women's Body Geometry Comfort w/ integrated bell, closed end, 132mm

SADDLE

Specialized Comfort Plus w/ springs

SEATPOST

Alloy suspension, 27.2mm, two bolt head w/ preload adjust

BRAKES

FRONT BRAKE

Alloy linear pull w/ adj. housing, 1pc. pad

REAR BRAKE

Alloy linear pull w/ adj. housing, 1pc. pad

BRAKE LEVERS

Tektro alloy 4-finger, kraton lever pad, for rapid fire shifter

ACCESSORIES

PEDALS

Composit comfort pedal w/ Kraton top

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	WS	XL	WM
Ground-Top	73mm	73mm	73mm	73mm	73mm	73mm
Seat-Tube Angle	89°	89°	93°	89°	93°	89°
Head-Tube Length	170mm	170mm	170mm	170mm	170mm	170mm
Head-Tube Angle	640°	645°	664°	640°	674°	645°
Chain-Stay Length	40mm	40mm	40mm	40mm	40mm	40mm
Top-Tube Length, Horizontal	70mm	69mm	69mm	69mm	70mm	69mm
Front-Center	150mm	160mm	170mm	170mm	190mm	180mm
Handle-Bar Width	350mm	350mm	350mm	350mm	350mm	350mm
Stand-Over Height	35mm	35mm	35mm	35mm	35mm	35mm
Seat-Tube Length, B-B Center to Top	500mm	500mm	500mm	500mm	500mm	500mm
Fork Rake	1131mm	1136mm	1155mm	1131mm	1165mm	1135mm
B-B Drop	69.5mm	69.5mm	69mm	69.5mm	69mm	69.5mm
Stack	363mm	411mm	475mm	363mm	551mm	437mm
Reach	600mm	615mm	630mm	600mm	640mm	615mm
Trail	756mm	777mm	783mm	480mm	837mm	496mm
Wheelbase	620mm	620mm	620mm	620mm	620mm	620mm
