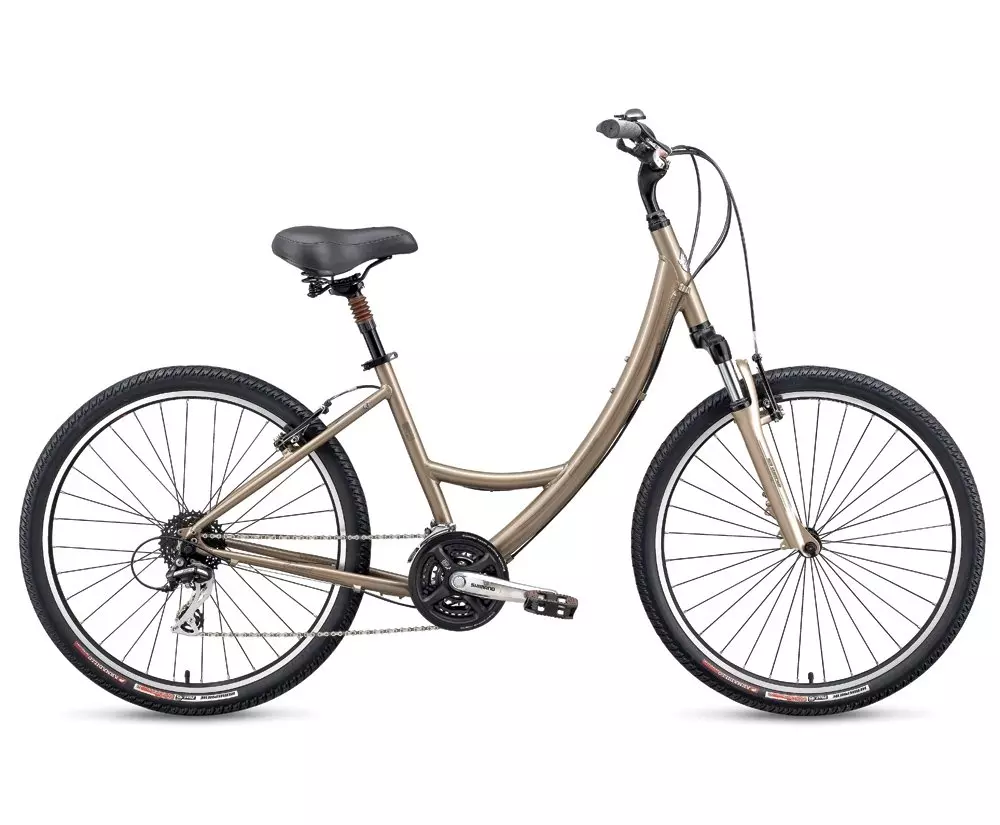

2009 Women's Globe Carmel 3 26"
0 Reviews
The Carmel is a no-brainer. Zero intimidation factor. All fun. Anyone and everyone…
Product Details
The Carmel is a no-brainer. Zero intimidation factor. All fun. Anyone and everyone who's looking for unsurpassed comfort, easy travels and feeling like a kid again will love this bike.
Our A1 Premium Aluminum frame features our Ground Control geometry for an upright and comfortable seating position that's closer to the ground, step-through frame for easy on and off.
The suspension fork uses coil/MCU springs for a smooth ride and external preload adjustment for easy fine-tuning.
SBC RH 26-inch rims are double-walled for strength and long life.
The wide Comfort Plus saddle has springs and a suspension seatpost to take the edge off.
Technical Specifications
FRAMESET
FRAME
Globe A1 Premium Aluminum, ground control geometry, 26"" comfort frame, formed tubes w/ integrated kickstand mount, forged dropouts w/ replaceable 98954020 hanger
HEADSET
Specialized 1-1/8"" threaded, loose ball
SEAT BINDER
Specialized alloy w/ QR
SUSPENSION
FORK
SR Suntour NEX-4110-26, 63mm, 1pc. alloy lower, Hi-Ten stanchions and steerer, coil/mcu w/ preload adj., spring assisted seals
WHEELS
FRONT TIRE
Specialized Hemisphere, 26x1.95"", 60TPI, wire bead, Armadillo casing
REAR TIRE
Specialized Hemisphere, 26x1.95"", 60TPI, wire bead, Armadillo casing
INNER TUBES
Specialized schraeder valve
RIMS
Specialized RH 26"", double wall, CNC sidewalls, 32h
FRONT HUB
Specialized, forged alloy, double sealed, polished races, 32h, steel QR
REAR HUB
Specialized, forged alloy, double sealed, ground race, cassette, QR, 32h
SPOKES
1.8mm (15g) stainless
DRIVETRAIN
FRONT DERAILLEUR
Shimano FD-C050, 31.8mm clamp, top swing, dual pull
REAR DERAILLEUR
Shimano Acera
SHIFT LEVERS
Shimano SL-MC40, 8-speed, rapid fire
CASSETTE
Shimano HG-40, 8-speed, 11-32t
CHAIN
KMC X8 w/ reuseable Missing Link
CRANKSET
Shimano FC-M191, w/ chainguard
CHAINRINGS
42 x 34 x 24t
BOTTOM BRACKET
FSA BB-7420, cartridge bearings, 68mm x 122.5mm for 47.5mm chain line
COCKPIT
STEM
Globe ground control, 4-bolt, alloy head/Cr-Mo quill, 25.4mm clamp
HANDLEBARS
Globe comfort riser bar, 25.4mm, 60mm rise, 620mm wide, 15 degree back sweep, 5 degree up
GRIPS
Women's Body Geometry Comfort w/ integrated bell, closed end, 132mm
SADDLE
Specialized Comfort Plus w/ springs
SEATPOST
Alloy suspension, 27.2mm, two bolt head w/ preload adjust
BRAKES
FRONT BRAKE
Alloy linear pull w/ adj. housing, 1pc. pad
REAR BRAKE
Alloy linear pull w/ adj. housing, 1pc. pad
BRAKE LEVERS
Tektro alloy 4-finger, kraton lever pad, for rapid fire shifter
ACCESSORIES
PEDALS
Composit comfort pedal w/ Kraton top, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | WS | XL | WM | |
|---|---|---|---|---|---|---|
| Ground-Top | 59mm | 59mm | 59mm | 59mm | 59mm | 59mm |
| Seat-Tube Angle | 89° | 89° | 89° | 89° | 89° | 89° |
| Head-Tube Length | 170mm | 170mm | 170mm | 170mm | 170mm | 170mm |
| Head-Tube Angle | 636° | 646° | 666° | 636° | 690° | 651° |
| Chain-Stay Length | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
| Top-Tube Length, Horizontal | 67mm | 67mm | 67.5mm | 67.5mm | 67mm | 67.5mm |
| Front-Center | 160mm | 190mm | 210mm | 160mm | 230mm | 190mm |
| Handle-Bar Width | 350mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Stand-Over Height | 35mm | 35mm | 35mm | 35mm | 35mm | 35mm |
| Seat-Tube Length, B-B Center to Top | 500mm | 500mm | 500mm | 500mm | 500mm | 500mm |
| Fork Rake | 1130mm | 1140mm | 1160mm | 1130mm | 1184mm | 1145mm |
| B-B Drop | 68.5mm | 68.5mm | 68.5mm | 68.5mm | 68.5mm | 68.5mm |
| Stack | 343mm | 406mm | 470mm | 356mm | 533mm | 432mm |
| Reach | 615mm | 625mm | 640mm | 615mm | 665mm | 625mm |
| Trail | 710mm | 760mm | 760mm | 472mm | 805mm | 472mm |
| Wheelbase | 620mm | 620mm | 620mm | 620mm | 620mm | 620mm |
