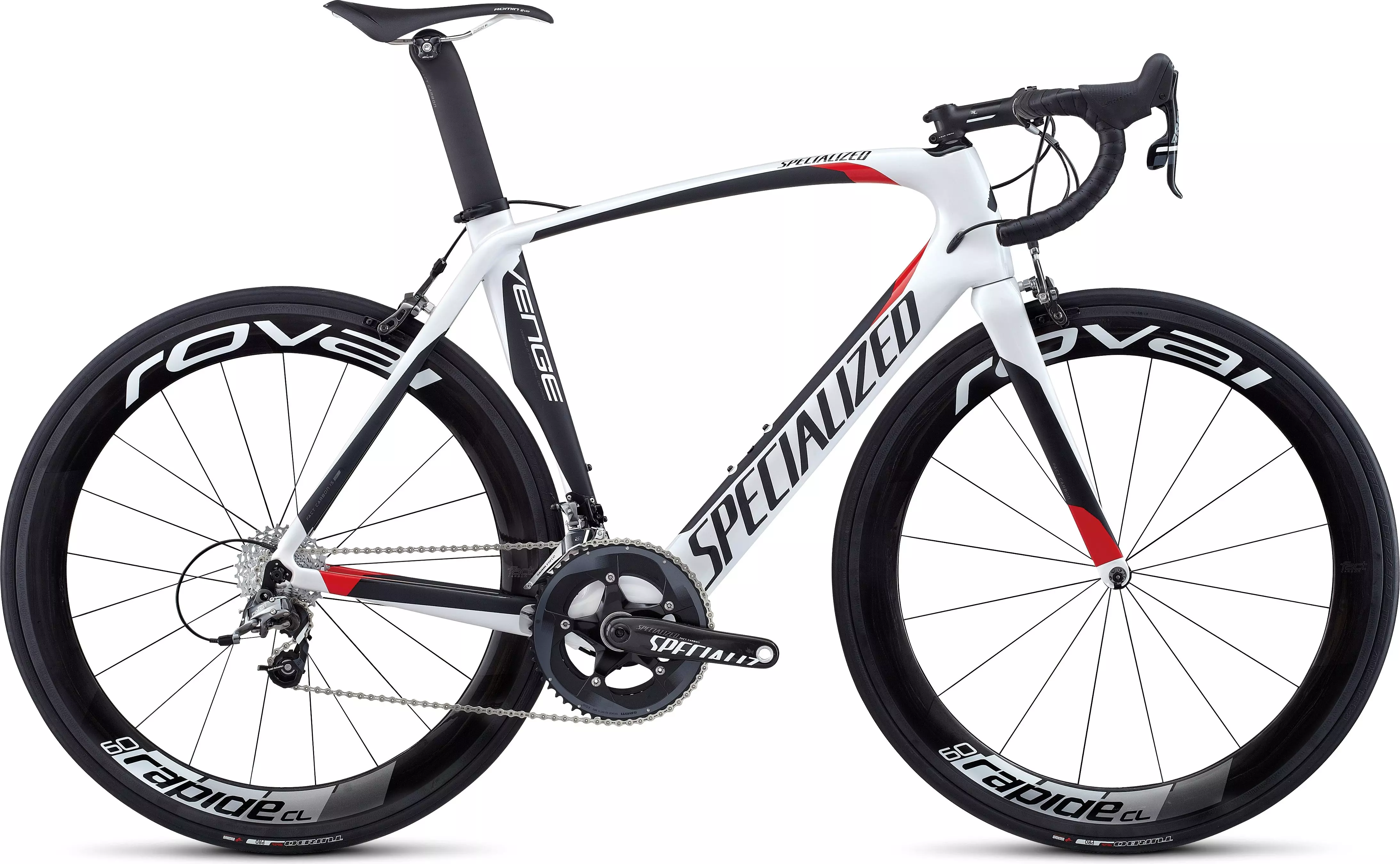

2014 Venge Pro Race Force

0 Reviews

The Venge is fast. Plain and simple. Behind it sits a myriad of science, testing,…

Product Details

Add Icon

The Venge is fast. Plain and simple. Behind it sits a myriad of science, testing, aerodynamic tweaking and design. What does all this mean for you? A bike that's faster in the flats, faster over rollers, and faster in sprints. The Venge will save you 22 watts over 40kp/hr compared to a Tarmac. Couple that with FACT carbon that's nearly as light as it is stiff and the only excuse you have for going slower are those things you're standing on.

  • UCI-legal, FACT 10r carbon frameset with one-piece carbon OSBB/chainstay, internal cable routing, and tapered headtube, full carbon monocoque fork with 3:1 airfoil shaping and straight profile for best combination of aerodynamics and stiffness

  • Specialized Pro FACT carbon crankset is OSBB, with a removable spider, for maximum efficiency and power transfer

  • Roval Rapide CL 60 full carbon clincher wheelset delivers incredible braking performance with the perfect balance of aerodynamics, stiffness and weight

  • Specialized Turbo Pro 23c tires deliver an incredible package of light weight, low rolling resistance and superior traction, all with BlackBelt protection

  • Romin Evo Expert saddle, with hollow Ti rails, delivers ergonomically designed, scientifically-proven Body Geometry features to allow riders to deliver power in low, aerodynamic positions

  • Stiff, light, UCI-legal, bladed carbon seatpost flips between 20mm and 0mm setback, plus a wide range of vertical adjustability

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized FACT 10r carbon, FACT construction, aero-shaped tubing, compact race design, tapered 1-1/8"" to 1-3/8"" headtube, internal cable routing, carbon OSBB

FORK

Specialized Venge FACT carbon full monocoque, OS race for 1-3/8"" bearing

HEADSET

1-1/8"" upper and 1-3/8"" lower stainless steel cartridge bearings, w/ custom Venge top cap

SEAT BINDER

Venge integrated seat clamp assembly

WHEELS

FRONT WHEEL

Roval Rapide CL 60

REAR WHEEL

Roval Rapide CL 60

FRONT TIRE

Specialized Turbo Pro, 127TPI, foldable aramid bead, BlackBelt protection, 700x23c

REAR TIRE

Specialized Turbo Pro, 127TPI, foldable aramid bead, BlackBelt protection, 700x23c

INNER TUBES

Lightweight, 80mm presta valve

DRIVETRAIN

SHIFT LEVERS

SRAM Force 22, DoubleTap, 11-speed

FRONT DERAILLEUR

SRAM Force 22, braze-on, 11-speed, YAW

REAR DERAILLEUR

SRAM Force 22, 11-speed

CASSETTE

SRAM 1170, 11-speed, 11-28

CRANKSET

Specialized Pro FACT carbon, OSBB

CHAINRINGS

53/39

BOTTOM BRACKET

OS integrated, sealed bearings

CHAIN

SRAM PC 1170, w/ PowerLink

COCKPIT

HANDLEBARS

Specialized Tarmac Expert, alloy, 140mm drop, 85mm reach

STEM

Specialized Pro SL, 3D forged 7050 aluminum, 4-bolt, 31.8mm

TAPE

Specialized Classic Wrap

SADDLE

Body Geometry Romin Evo Expert, hollow Ti rails, 143mm

SEATPOST

Specialized Venge Aero, FACT carbon, flippable 20/0mm offset

BRAKES

FRONT BRAKE

SRAM Force

REAR BRAKE

SRAM Force

BRAKE LEVERS

SRAM Force 22

ACCESSORIES

PEDALS

Nylon flat test ride, loose ball, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
49.052.054.056.058.061.0
Seat-Tube Angle75.5°74°73.5°73.25°73°72.5°
Head-Tube Length100mm120mm140mm160mm190mm210mm
Seat-Post Length300mm300mm300mm350mm350mm350mm
Head-Tube Angle72.25°73°73°73.5°73.5°74°
Chain-Stay Length405mm405mm405mm405mm407mm410mm
Top-Tube Length, Horizontal518mm537mm548mm565mm582mm600mm
Front-Center576mm576mm583mm590mm605mm612mm
Handle-Bar Width400mm420mm420mm420mm440mm440mm
Stand-Over Height741mm766mm789mm809mm834mm860mm
Seat-Tube Length, B-B Center to Top467mm487mm507mm527mm547mm577mm
Fork Rake45mm45mm45mm43mm43mm43mm
B-B Drop71.5mm71.5mm69mm69mm67.5mm67.5mm
Stack506mm528mm544mm566mm593mm614mm
Reach385mm385mm386mm395mm401mm407mm
Trail62mm57mm57mm56mm56mm53mm
Wheelbase970mm970mm978mm986mm1003mm1013mm
Crank Length170mm170mm172.5mm172.5mm175mm175mm
Stem Length75mm90mm100mm100mm110mm110mm
