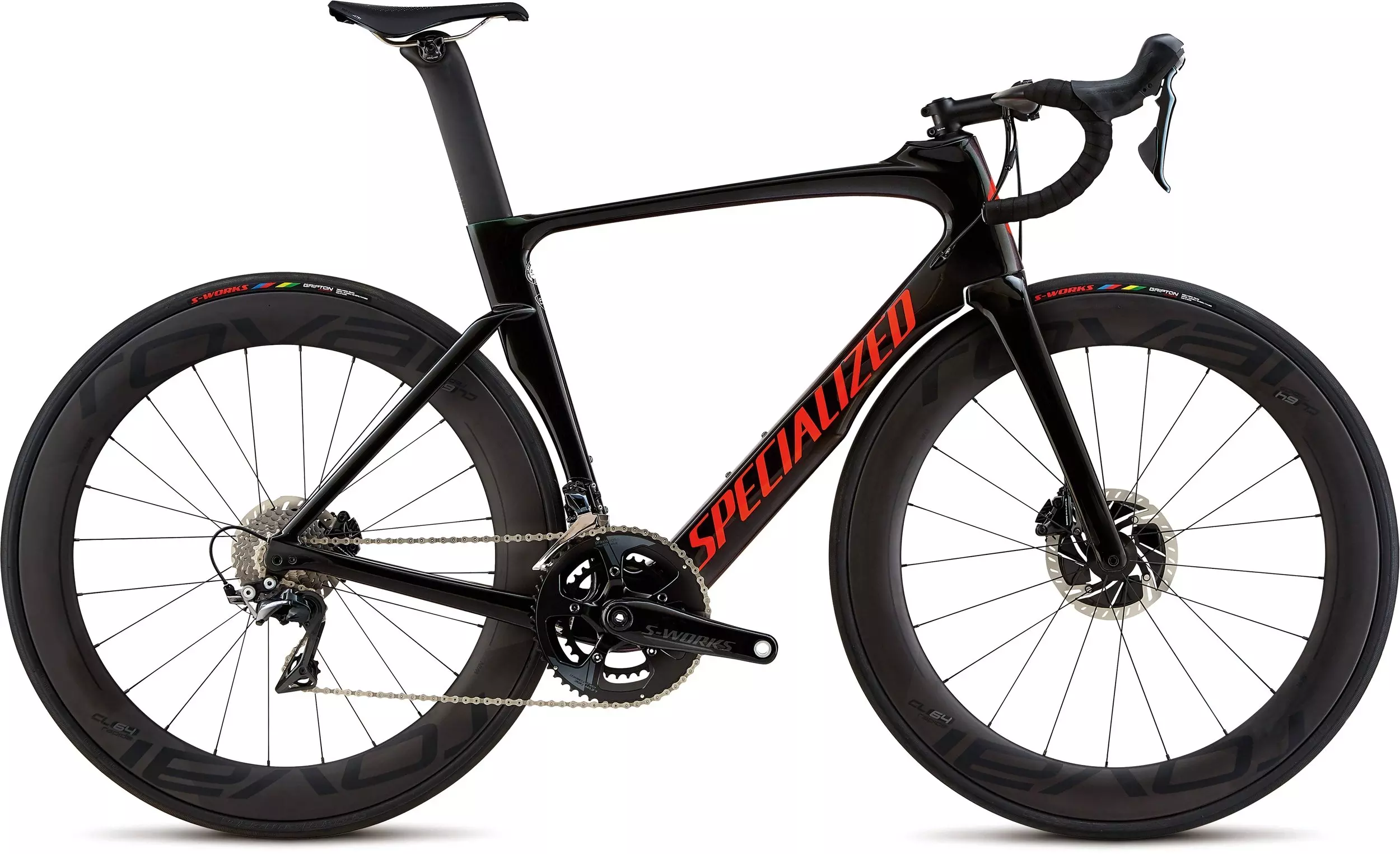

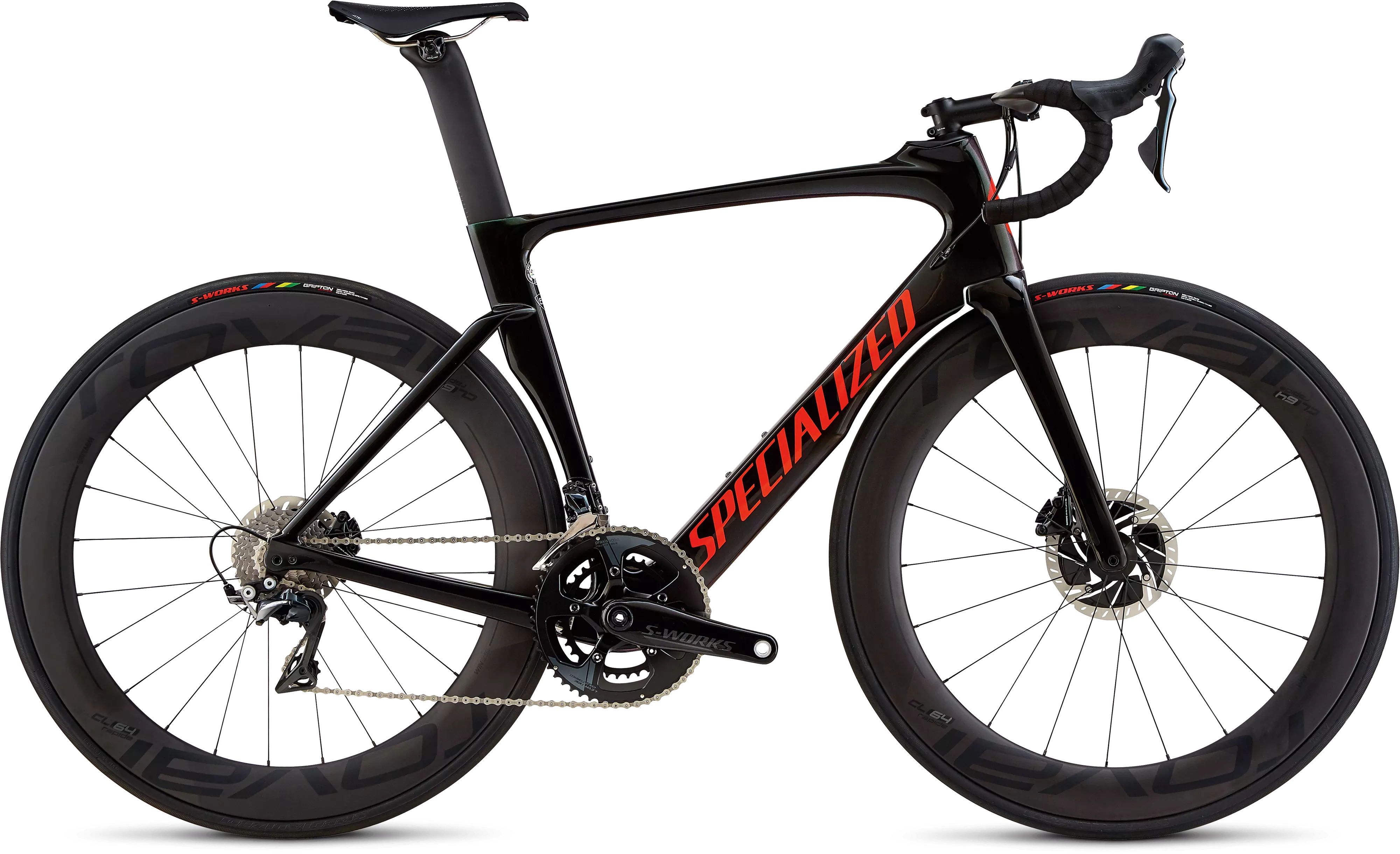

2018 Venge Pro Disc

5

4 Reviews

If you're looking for an all-out, wicked-fast race bike, look no further than the…

Product Details

Add Icon

If you're looking for an all-out, wicked-fast race bike, look no further than the Venge ViAS Pro Disc. Every facet of it was born in our Win Tunnel, so it's insanely stiff and snappy and has a 116-second advantage, compared to the Tarmac SL5, over 40km.

In our Win Tunnel, every tube, trailing edge, and design cue was made for speed. It's also Rider-First Engineered™ to ensure that every frame size experiences uniform performance. Front-end stiffness, meanwhile, was increased by 30% over the Tarmac.

For this iteration of the Venge, however, we spec'd it with a traditional stem and our S-Works Aerofly handlebars. And while there is a slight loss in aerodynamics with this configuration, it makes set-up and changes to the overall fit far easier than with the ViAS system. Of course, this disc version of the Venge also changes the game with undeniable stopping power without any penalty to the aerodynamic profile, so you get powerful hydraulic disc braking without any sacrifices.

Then there's the crisp and ever-precise Shimano Dura-Ace groupset and Roval CL 64 wheels that amplify the overall performance of this race rig. So when it comes to racing, the Venge Pro refuses to be outdone.

  • The Rider-First Engineered™, FACT 11r frame design has made the Venge the stiffest, most aerodynamic bike that we’ve ever created. Every tube shape, trailing edge, and design cue was influenced by hours of testing in our Win Tunnel, computational fluid dynamics, 3D printed prototypes, and real-world rider feedback. And ultimately, this resulted in the fastest bike we’ve ever made.

  • Designed in our Win Tunnel, the fork features a top-end S-Works FACT 11r carbon construction that helps to cut through air like a hot knife through butter.

  • A 52/36T S-Works crankset is incredibly stiff, with a chainring grouping that's equally suited to big alpine climbs as it is to throwing down the gauntlet on the flats.

Technical Specifications

Add Icon

FRAMESET

FRAME

FACT 11r carbon, Rider-First Engineered™, Win Tunnel Engineered, internal cable routing, 12x142mm thru-axle, carbon OSBB, flat disc mount

FORK

S-Works FACT 11r carbon, full monocoque

SEAT BINDER

Specialized Venge assembly

WHEELS

FRONT WHEEL

Roval CL 64 Disc rim, Roval AFD1, Centerlock, 21h

REAR WHEEL

Roval CL 64 Disc rim, Roval AFD2, Centerlock, DT Swiss 240 internals, 11-speed, 12x142mm thru-axle, 24h

FRONT TIRE

S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm

REAR TIRE

S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm

INNER TUBES

700x18/25mm, 80mm Presta valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano Dura-Ace 9100, braze-on

REAR DERAILLEUR

Shimano Dura-Ace 9100, 11-speed

CASSETTE

Shimano Dura-Ace 9100, 11-speed, 11-30t

CRANKSET

S-Works carbon fiber, alloy spider

CHAINRINGS

52/36T

BOTTOM BRACKET

Praxis 6806 bearings

CHAIN

Shimano Dura-Ace,11-speed

SHIFT LEVERS

Shimano Dura-Ace Disc 9120

COCKPIT

HANDLEBARS

S-Works Aerofly

STEM

Specialized Pro SL, alloy, 4-bolt

TAPE

S-Wrap w/ Sticky gel

SADDLE

Power Expert, 143mm, nylon base, synthetic leather, hollow titanium rails

SEATPOST

Specialized Venge Aero seatpost, FACT carbon

ACCESSORIES

PEDALS

Nylon, 105x78x28mm, loose balls w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
495254565861
Crank Length170mm170mm172.5mm172.5mm175mm175mm
Handlebar Width400mm420mm420mm420mm440mm440mm
Stem Length80mm90mm100mm100mm110mm110mm
Saddle Width143mm143mm143mm143mm143mm143mm
Seatpost Length330mm330mm380mm380mm380mm380mm
Stack505mm526mm543mm564mm591mm612mm
Reach386mm385mm386mm395mm401mm408mm
Head Tube Length110mm130mm150mm170mm200mm220mm
Head Tube Angle72.25°73°73°73.5°73.5°74°
BB Height270mm270mm272.5mm272.5mm274mm274mm
BB Drop71.5mm71.5mm69mm69mm68mm67.5mm
Trail63mm58mm58mm55mm55mm52mm
Fork Length, Full358mm358mm358mm358mm358mm358mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center575mm575mm581mm592mm606mm613mm
Chainstay Length410mm410mm410mm410mm410mm410mm
Wheelbase974mm974mm981mm992mm1006mm1014mm
Top Tube Length, Horizontal518mm536mm547mm565mm581mm600mm
Bike Standover Height730mm755mm775mm795mm826mm850mm
Seat Tube Length441mm461mm481mm501mm524mm554mm
Seat Tube Angle75.5°74°73.5°73.25°73°72.5°
Geometry

Rider Reviews

5

4 Reviews



Carlos cenador

Tengo está bici y es increíble las sensaciones que te transmite. La recomiendo a todo el mundo.


Verified Buyer
Icon
Name:
@Carloscenador

Helpful?

Carlos cenador

Tengo está bici y es increíble las sensaciones que te transmite. La recomiendo a todo el mundo.


Name:
@Carloscenador

Helpful?

Stoked to a whole new level

After building this bike, and seeing the beautiful chameleon paint job, I caressed the bike. With myself being only 5'9"", the 54 and I could fit perfectly on top of my full size bed, that is inside my 01' ram van. Now with my enduro elite on the back of the van and this venge pro inside, who needs a girlfriend? This bike makes living down by the river so much more enjoyable.


Name:
Dirty B.

Helpful?

Awesome Aero Machine

I'm very impressed with the speed and handling of this bike. The stiffness of the frame is perfect for a 112kg bike rider. When I get out of the saddle, the bike just accelerate like no other bike I've ever owned. And I've had plenty of bikes to justify my claim. I, went with the Zipp sprint stem and aero sl handlebar. A perfect match for this Awesome Machine. The wheelset and groupset with disc brake did it for me.


Name:
Big P.

Helpful?
