The Kenevo is the most capable eMTB you can find—complete with 180mm of front and…
Riders around the world have continually voted Specialized as the #1 brand in E-MTBs. With our unmatched power, refined delivery system, and seamless integration, our already legendary mountain bikes are truly something out of this world.

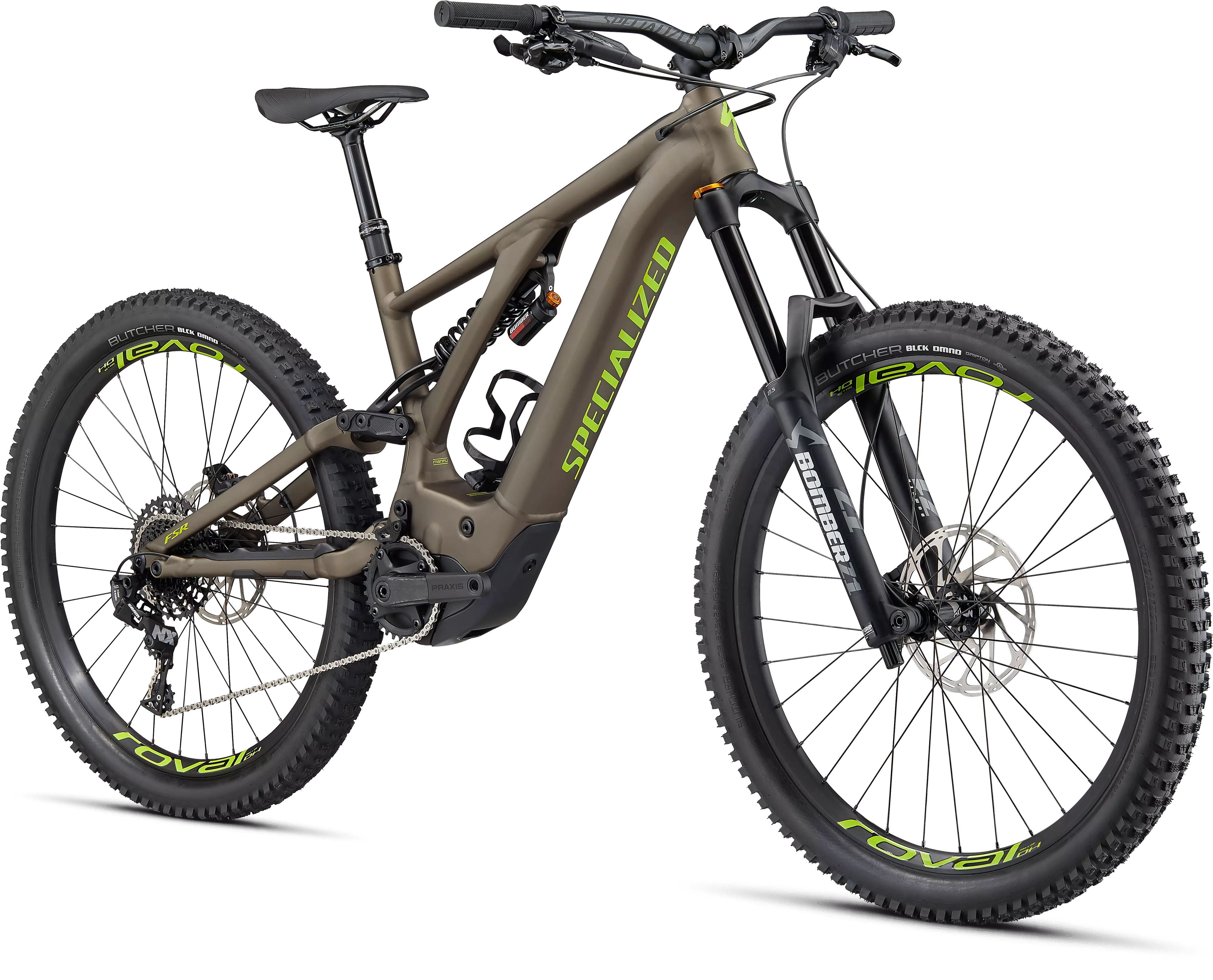

The Kenevo is the most capable eMTB you can find—complete with 180mm of front and rear suspension, the smoothest and most powerful motor available, and more miles per charge than ever before. Our Kenevo Comp model pairs all that technology with a smart mix of components that'll withstand the most demanding conditions and riders.
MORE CONTROL, MORE SPEED
The new Kenevo gains a lower-slung Sidearm-style chassis and more aggressive geometry. And like the new Enduro, the Kenevo features an axle path and suspension that give you the smoothest, fastest ride over the roughest possible terrain. It all adds up to a bike that provides you with a whole new level of confidence and control on the toughest trails.
MORE POWER, MORE RANGE
The Kenevo's Specialized 2.1 motor amplifies your pedaling input by a mind blowing 410%. And as for range, our 500-watt hour battery provides you with plenty of range. What's more, our Mission Control App can handle battery management automatically, ensuring your battery will last as long as you need it to. More power. More miles per ride. More awesome.
• M5 alloy Sidearm frame offers outstanding ride quality and control.
• Smoothest, most powerful motor on the market.
• 180mm of suspension front and rear, courtesy of Marzocchi fork and shock.
The completely redesigned alloy Kenevo frame features an M5 alloy front- and rear-end, an asymmetrical Sidearm design, and a new axle path and leverage curve that give the bike insane levels of control in the most challenging trails.

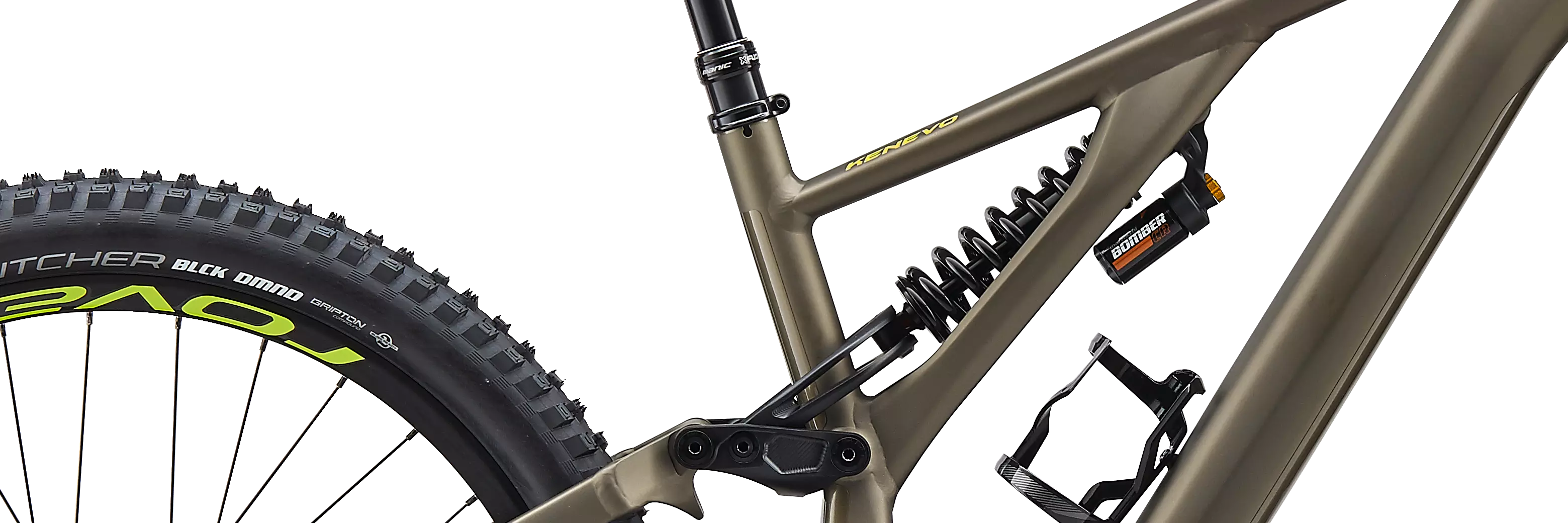

Marzocchi Bomber CR coil-sprung shock offers 180mm of plush suspension as well as adjustable low-speed compression and rebound damping, to help you dial in the ride to your style and terrain.
Marzzochi Bomber Z1 air-sprung fork provides 180mm of smooth, controlled front suspension. Features include a proven FOX GRIP damper and EVOL air spring. Simple, reliable and absolutely capable of swallowing any rock or root that comes your way.
The custom Specialized 2.1 motor represents the pinnacle of e-bike motor technology. The new motor is more efficient, 15% smaller, and 11% lighter than its predecessor. It has many other features that no other e-bike can touch, like instant engagement, fantastic heat management, a double freewheel design that disengages the gear box when you hit top speed, and silent, smooth, and consistent output—even at max power.
This Turbo’s new Specialized M2-series battery features a 500Wh capacity. That powerful battery is seamlessly integrated inside the frame and is easily removed in seconds, with a single hex wrench.
Motor
Specialized Turbo Full Power System 2.2 Motor
UI/Remote
Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized M2-500, integrated battery w/rock guard, 500Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug
Wiring Harness
Custom Specialized harness
Shift Levers
SRAM S700, single-click lever
Chain
KMC e11T, 11-speed w/ Missing Link™
Rear Derailleur
SRAM NX, 11-speed
Crankset
Praxis forged M30, custom offset
Cassette
SRAM PG-1130, 11-speed, 11-42t
Chainrings
Praxis 32T, Steel, 104BCD
Front Hub
Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
Rims
Roval 27.5" Alloy DH, 28mm internal width, 32h, tubeless ready
Rear Hub
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes
DT Swiss Industry
Front Tire
Butcher, BLCK DMND casing, 2Bliss Ready, 27.5 x 2.6"
Inner Tubes
Presta, 40mm valve
Rear Tire
Butcher, BLCK DMND casing, 2Bliss Ready, 27.5 x 2.6"
Saddle
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SeatPost
SEAT POST, XFUSION, MANIC, 22-SSPMNCLG-125/150/170-011,FORGED,6066-T6 ,2-BOLT,34.9, 125/150 TRAVEL, OFFSET 0MM,375/438MM,SCM435,ZINC FINISH BOLT
Stem
Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
Handlebars
Specialized, 7050 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 800mm width
Grips
Specialized Sip grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Front Brake
SRAM Code R, 4-piston caliper, hydraulic disc, 220mm
Rear Brake
SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
Frame
Specialized M5 Premium Aluminum, 27.5 Trail Geometry, integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 180mm of travel
Fork
Marzzochi Bomber Z1, 27.5, Boost™ 15x110mm, 36mm chassis, FIT GRIP damper, 180mm of travel
Seat Binder
Specialized bolt-type, alloy, 38.6mm
Rear Shock
Fox Performance Level DPX2, 3 position lever, 230 x 62.5mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
| S2 | S3 | S4 | S5 | |
|---|---|---|---|---|
| Crank Length | 165mm | 165mm | 165mm | 165mm |
| Handlebar Width | 800mm | 800mm | 800mm | 800mm |
| Stem Length | 45mm | 45mm | 45mm | 45mm |
| Saddle Width | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 375mm | 438mm | 438mm | 438mm |
| Stack | 605mm | 614mm | 623mm | 632mm |
| Reach | 445mm | 470mm | 495mm | 520mm |
| Head Tube Length | 105mm | 115mm | 125mm | 135mm |
| Head Tube Angle | 64° | 64° | 64° | 64° |
| BB Height | 345mm | 345mm | 345mm | 345mm |
| BB Drop | 14mm | 14mm | 14mm | 14mm |
| Trail | 128mm | 128mm | 128mm | 128mm |
| Fork Length, Full | 572mm | 572mm | 572mm | 572mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
| Front Center | 780mm | 809mm | 839mm | 868mm |
| Chainstay Length | 454mm | 454mm | 454mm | 454mm |
| Wheelbase | 1234mm | 1263mm | 1293mm | 1322mm |
| Top Tube Length, Horizontal | 585mm | 612mm | 639mm | 666mm |
| Bike Standover Height | 794mm | 794mm | 794mm | 794mm |
| Seat Tube Length | 400mm | 420mm | 440mm | 465mm |
| Seat Tube Angle | 77° | 77° | 77° | 77° |
