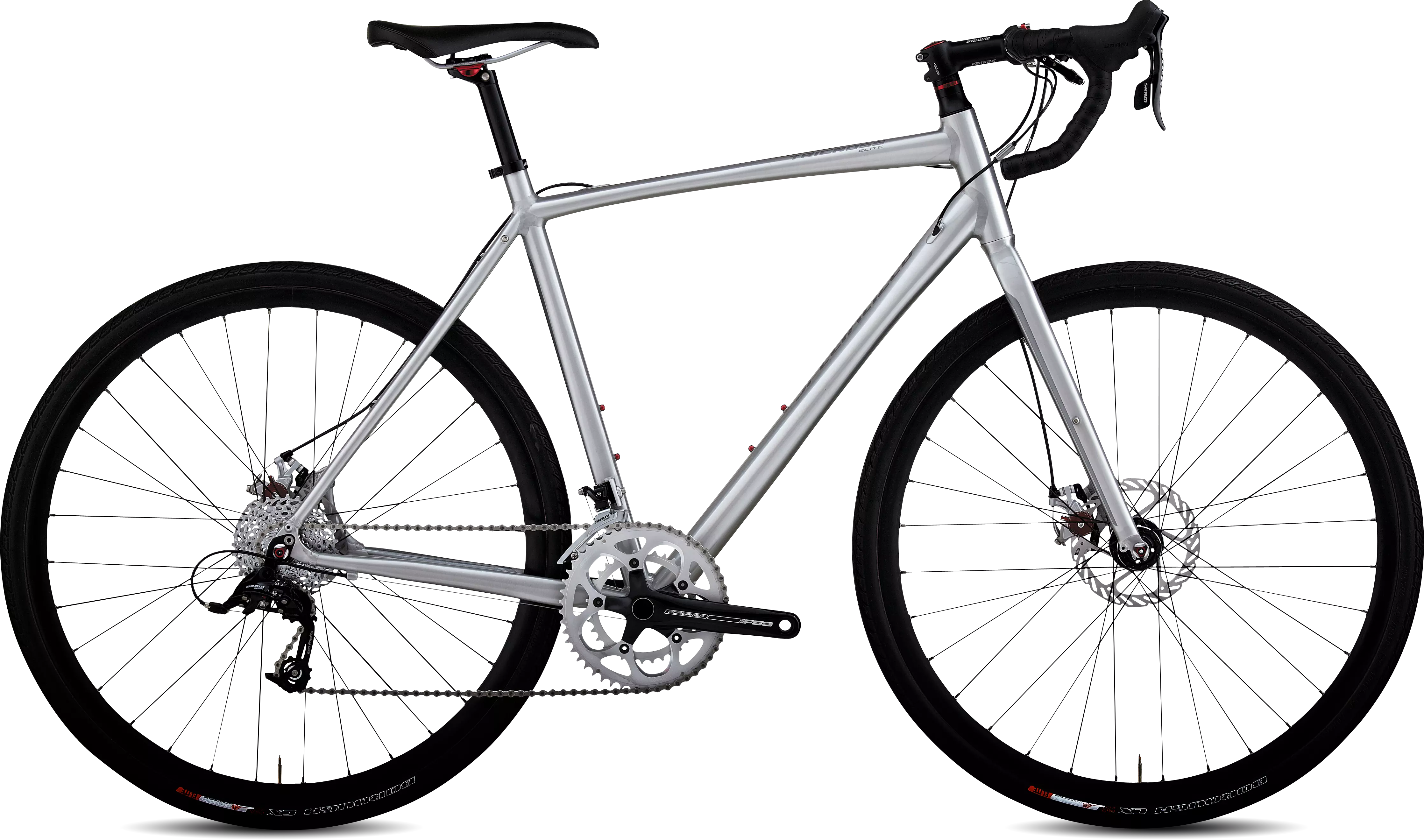

2012 Tricross Elite Disc Apex Compact
0 Reviews
Tricross Elite Disc is the perfect do-it-all bike for anything from trails to commuting…
Product Details
Tricross Elite Disc is the perfect do-it-all bike for anything from trails to commuting to touring, with rack/fender mounts and secondary brake levers. Disc brakes for all-weather control, plus quick, light 10-speed SRAM Apex components.
Lightweight A1 Premium Aluminum double-butted frame with freeroad geometry is disc-compatible and features internal cable routing for low-maintenance performance in any conditions
Lightweight alloy fork is ultra-durable and disc-ready, while the lowrider rack and fender mounts allow you to keep the water off and the load well-balanced
Bulletproof wheelset glides smoothly over roads and powers through dirt with its sturdy alloy rims
Adjustable four-position oversized alloy stem with 31.8mm bar clamp for strength and versatile positioning
New H2 Ergo alloy bar offers serious performance and ergonomic positioning
SRAM Apex 10-speed DoubleTap shifters for simple, intuitive shifting with reach adjustment
New Specialized Sport alloy seatpost provides a stiff and durable perch for comfort and efficiency
New Tricross secondary brake levers provide convenient, safe braking without moving hands to the drops, plus integrated bell mount
Specialized Borough CX tires with Armadillo Elite protection have a wide and smooth center section that rolls fast on paved or dirt roads and side knobs for off-road use
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, smooth weld, fully manipulated tubing, semi-compact design, integrated headset, internal cable routing, rack and fender fittings, disc only
FORK
Full alloy, low-rider rack/fender fittings, disc only
HEADSET
1-1/8"" sealed Cr-Mo cartridge bearings integrated w/ headset, 20mm alloy cone spacer, w/ 20mm of spacers
SEAT BINDER
Alloy, 31.8mm
WHEELS
RIMS
Alex Handsome Dragon 2.0, 32 hole
FRONT HUB
Forged alloy hub, 32h
REAR HUB
Forged aluminum, double sealed ball bearings, cassette, QR, 32h
SPOKES
Stainless 14g
FRONT TIRE
Specialized Borough CX Armadillo Elite, 120 TPI, aramid bead, 700x32c
REAR TIRE
Specialized Borough CX Armadillo Elite, 120 TPI, aramid bead, 700x32c
INNER TUBES
Lightweight, presta
DRIVETRAIN
SHIFT LEVERS
SRAM Apex DoubleTap, 10-speed
FRONT DERAILLEUR
SRAM Apex
REAR DERAILLEUR
SRAM Apex, mid cage
CASSETTE
SRAM Apex, 10-speed, 11-32t
CRANKSET
FSA Gossamer
CHAINRINGS
50/34
BOTTOM BRACKET
With crankset
CHAIN
KMC X10 CP
COCKPIT
HANDLEBARS
Specialized H2 Ergo Comp, alloy
STEM
Specialized EliteSet, 3D forged alloy, 12-degree, 4-position adjustable, 4-bolt, 31.8mm clamp
TAPE
Specialized TriCross wrap w/ 2.5 gel pads
SADDLE
Body Geometry Riva Plus TriCross, 155mm
SEATPOST
New Specialized Sport, alloy, 27.2mm
BRAKES
FRONT BRAKE
Avid BB5 disc, 160mm
REAR BRAKE
Avid BB5 disc, 140mm
BRAKE LEVERS
New TriCross Comp secondary brake levers
ACCESSORIES
PEDALS
Nylon flat test ride, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 46 | 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|---|
| Seat-Tube Angle | 76° | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 105mm | 120mm | 130mm | 145mm | 160mm | 175mm | 200mm |
| Seat-Post Length | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 69.5° | 70° | 71.5° | 71.5° | 72° | 72.5° | 73° |
| Chain-Stay Length | 440mm | 440mm | 440mm | 440mm | 440mm | 440mm | 440mm |
| Top-Tube Length, Horizontal | 505mm | 516mm | 537mm | 549mm | 560mm | 570mm | 587mm |
| Front-Center | 593mm | 597mm | 593mm | 601mm | 604mm | 607mm | 614mm |
| Handle-Bar Width | 400mm | 400mm | 420mm | 420mm | 440mm | 440mm | 440mm |
| Stand-Over Height | 734mm | 761mm | 780mm | 797mm | 815mm | 833mm | 859mm |
| Seat-Tube Length, B-B Center to Top | 460mm | 490mm | 520mm | 540mm | 560mm | 580mm | 610mm |
| Fork Rake | 51mm | 49mm | 49mm | 49mm | 47mm | 47mm | 47mm |
| B-B Drop | 71mm | 70.5mm | 71mm | 69mm | 69mm | 67mm | 67mm |
| Stack | 536.5mm | 552.7mm | 586.5mm | 580.7mm | 597.5mm | 611.7mm | 637.6mm |
| Reach | 360mm | 365mm | 370.2mm | 374.1mm | 379mm | 382mm | 387mm |
| Trail | 75mm | 74mm | 64mm | 64mm | 63mm | 60mm | 57mm |
| Wheelbase | 1023mm | 1027mm | 1023mm | 1032mm | 1035mm | 1038mm | 1045mm |
| Crank Length | 170mm | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 75mm | 90mm | 100mm | 100mm | 110mm | 120mm |
