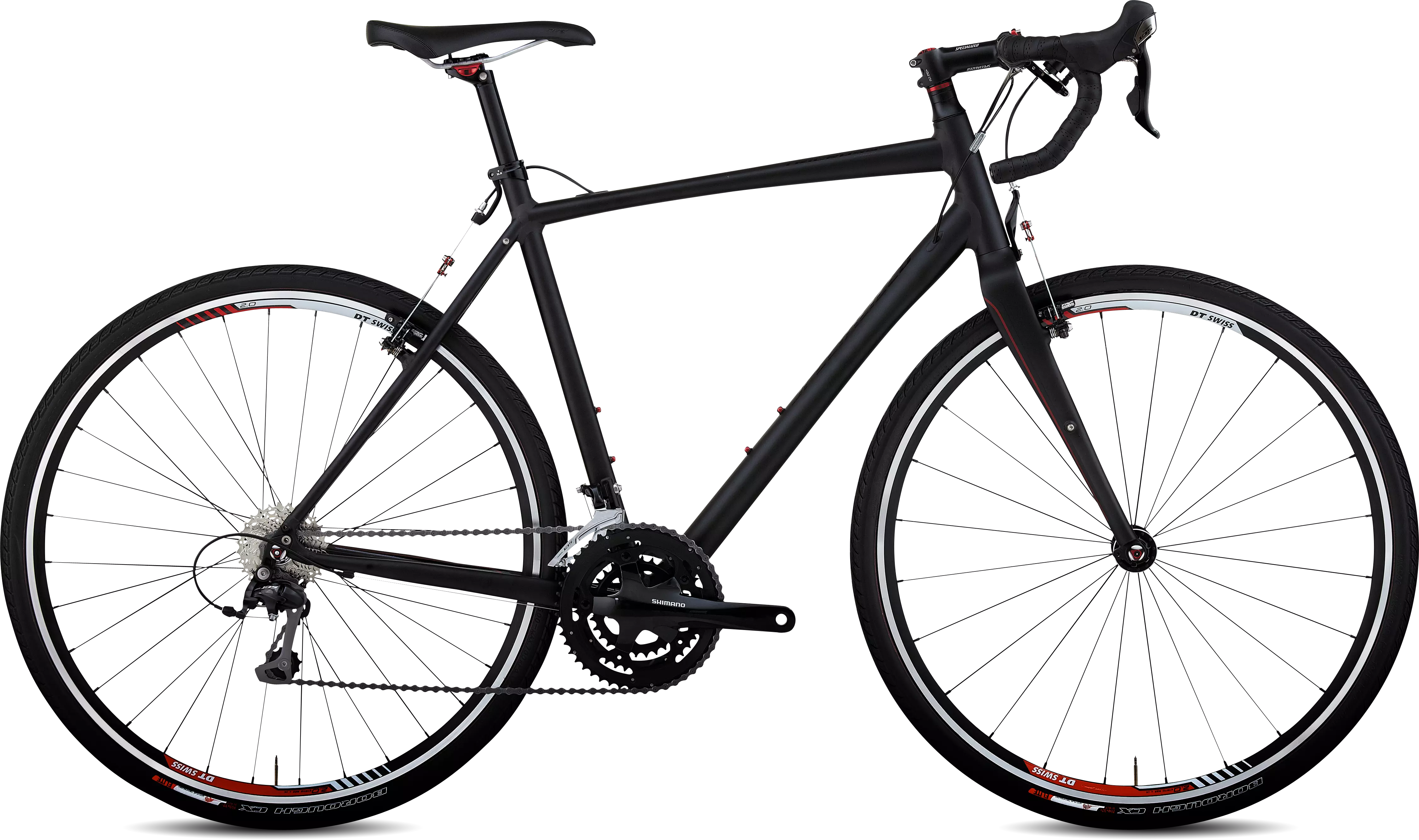

2012 Tricross Comp

0 Reviews

Tricross Comp is the perfect do-it-all bike for anything from cross racing to commuting…

Product Details

Add Icon

Tricross Comp is the perfect do-it-all bike for anything from cross racing to commuting to touring, with a carbon fork, rack/fender mounts, and secondary brake levers. 10-speed Shimano 105 components are renowned for tough reliability.

  • Lightweight A1 Premium Aluminum double-butted frame with Freeroad geometry, smooth welds, and internal cable routing for versatility and low-maintenance performance in any conditions

  • FACT carbon fork means quicker handling on rough dirt or paved roads, and lowrider rack and fender mounts helps you keep the water off and the load well-balanced

  • Easily serviceable and significantly lighter than comparable-level wheelsets, tough new DT-Axis 2.0 hoops are tough enough for touring or off-road use

  • Adjustable four-position oversized alloy stem with 31.8mm bar clamp for strength and versatile positioning

  • New H2 Ergo alloy bar offers serious performance and ergonomic positioning

  • High-value Shimano 105 shifters are renowned for their precise action and great durability

  • New Specialized Sport alloy seatpost provides a stiff and durable perch for comfort and efficiency

  • New Tricross secondary brake levers provide convenient, safe braking without moving hands to the drops plus integrated bell mount

  • Specialized Borough CX tires with Armadillo Elite protection have a wide and smooth center section that rolls fast on paved or dirt roads and side knobs for off-road use.

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized A1 Premium Aluminum, smooth weld, fully manipulated tubing, semi-compact design, integrated headset, internal cable routing, rack and fender fittings

FORK

Specialized FACT carbon legs, alloy crown/steerer, low-rider rack/fender fittings

HEADSET

1-1/8"" sealed Cr-Mo cartridge bearings integrated w/ headset, 20mm alloy cone spacer, w/ 20mm of spacers

SEAT BINDER

Forged alloy, 31.8mm

WHEELS

FRONT WHEEL

DT Axis 2.0

REAR WHEEL

DT Axis 2.0

FRONT TIRE

Specialized Borough CX Armadillo Elite, 120 TPI, aramid bead, 700x32c

REAR TIRE

Specialized Borough CX Armadillo Elite, 120 TPI, aramid bead, 700x32c

INNER TUBES

Lightweight, presta

DRIVETRAIN

SHIFT LEVERS

Shimano 105 STI, 10-speed

FRONT DERAILLEUR

Shimano 105

REAR DERAILLEUR

Shimano 105

CASSETTE

Shimano 105, 10-speed, 11-28t

CRANKSET

Shimano FCR triple

CHAINRINGS

50/39/30

BOTTOM BRACKET

With crankset

CHAIN

Shimano 105, 5600 for triple

COCKPIT

HANDLEBARS

Specialized H2 Ergo Comp, alloy

STEM

Specialized EliteSet, 3D forged alloy, 12-degree, 4-position adjustable, 4-bolt, 31.8mm clamp

TAPE

Specialized TriCross wrap w/ 2.5 gel pads

SADDLE

Body Geometry Riva Plus TriCross, 155mm

SEATPOST

New Specialized Sport, alloy, 27.2mm

BRAKES

FRONT BRAKE

TRP EuroX canti w/ adjuster

REAR BRAKE

TRP EuroX canti, w/ adjuster

BRAKE LEVERS

New TriCross Comp secondary brake levers

ACCESSORIES

PEDALS

Nylon flat test ride, loose ball, w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
46495254565861
Seat-Tube Angle76°75.5°74°73.5°73.25°73°72.5°
Head-Tube Length115mm130mm140mm155mm170mm185mm210mm
Seat-Post Length300mm300mm350mm350mm350mm350mm350mm
Head-Tube Angle69.5°70°71.5°71.5°72°72.5°73°
Chain-Stay Length440mm440mm440mm440mm440mm440mm440mm
Top-Tube Length, Horizontal505mm516mm537mm549mm560mm570mm587mm
Front-Center593mm597mm593mm601mm604mm607mm614mm
Handle-Bar Width400mm400mm420mm420mm440mm440mm440mm
Stand-Over Height734mm761mm780mm797mm815mm833mm859mm
Seat-Tube Length, B-B Center to Top460mm490mm520mm540mm560mm580mm610mm
Fork Rake51mm49mm49mm49mm47mm47mm47mm
B-B Drop71mm70.5mm71mm69mm69mm67mm67mm
Stack536.6mm552.7mm568.5mm580.7mm597.5mm611.7mm637.6mm
Reach360mm365mm370.2mm374.1mm379mm382mm387mm
Trail75mm74mm64mm64mm63mm60mm57mm
Wheelbase1023mm1027mm1023mm1032mm1035mm1038mm1045mm
Crank Length170mm170mm170mm172.5mm172.5mm175mm175mm
Stem Length75mm75mm90mm100mm100mm110mm120mm
Geometry
