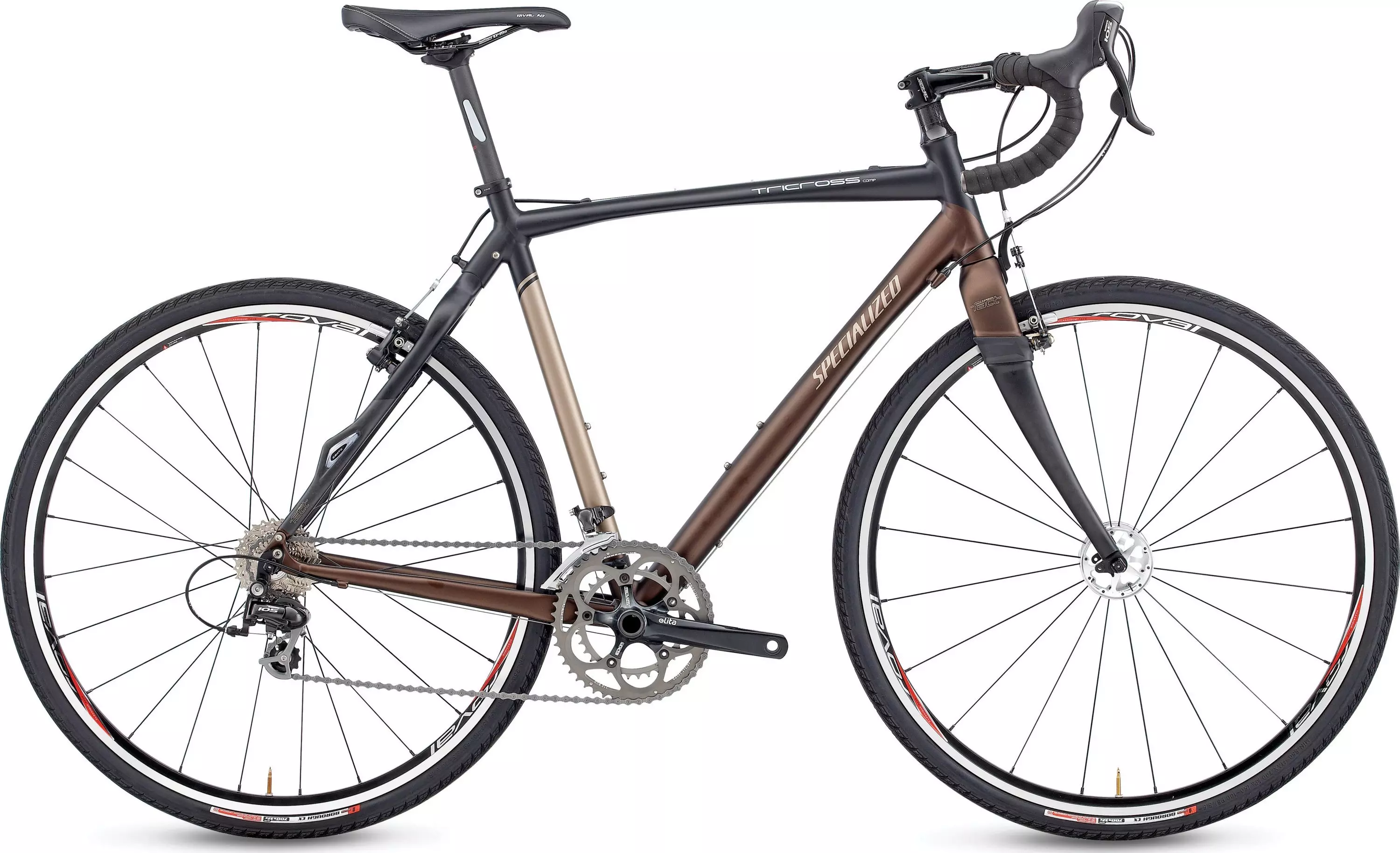

2010 Tricross Comp
0 Reviews
Never one for playing by the rules, the Tricross® lives to take the road less traveled.…
Product Details
Never one for playing by the rules, the Tricross® lives to take the road less traveled. Whether that means a 'cross mudfest or hidden chunk of singletrack, these bikes are engineered with lightweight, easyshoulder frames, SpeedZertz-damped forks and beefy tires for the tolerance and traction to battle barricades, bumps and dodgy roads.
FACT carbon seatpost with Zertz insert helps smooth out rough terrain
Ergonomic short drop aluminum handlebars provide a comfortable riding position
Adjustable 4-position stem with 31.8mm bar clamp for strength and versatile positioning
Smooth-welded E5 SLX aluminum frame and FACT carbon seatstays with Zertz inserts for compliance on road and dirt
Roval Pavé wheelset use high-flange hubs with adjustable axles and DT Swiss spokes for the ultimate durability on varied terrain
S-Works FACT full carbon monocoque fork provides maximum strength at minimal weight, with SpeedZertz to minimize vibration and rack/fender fittings
Technical Specifications
FRAMESET
FRAME
Specialized TriCross E5 SLX aluminum, fully manipulated tubing, smooth weld semi-compact Freeroad design, FACT carbon seatstays w/ Zertz inserts, rack and fender fittings, integrated headset
FORK
S-Works Tricross fork, full FACT carbon monocoque w/ SpeedZertz, rack and fender fittings
HEADSET
Specialized Mindset Plus, 1-1/8"" integrated threadless, sealed cartridge bearings, 20mm alloy cone with one 10mm and two 5mm alloy spacers
SEAT BINDER
Forged alloy, 31.8mm
WHEELS
REAR HUB
Roval Pavé, 24h, cold forged aluminum five-spoke high flange, adjustable aluminum axle, Roval QR
SPOKES
Stainless 14g
FRONT TIRE
Specialized Borough Pro, 700x32c, aramid bead, 120TPI, Dual Compound
REAR TIRE
Specialized Borough Pro, 700x32c, aramid bead, 120TPI, Dual Compound
INNER TUBES
Standard presta valve
FRONT WHEEL
Roval Pavé
REAR WHEEL
Roval Pavé
RIMS
Roval Pavé, aluminum, anti-pinch rim edge, sleeve joint, w/ stainless steel eyelets
FRONT HUB
Roval Pavé, 20h, cold forged aluminum five-spoke high flange, adjustable aluminum axle, Roval QR
DRIVETRAIN
FRONT DERAILLEUR
Shimano 105
REAR DERAILLEUR
Shimano 105
SHIFT LEVERS
Shimano 105 STI, flight deck compatible
CASSETTE
Shimano 105, 10-speed, 12-27t
CHAIN
Shimano 105
CRANKSET
TruVatiV Elita
CHAINRINGS
48 x 34T
BOTTOM BRACKET
With Crankset
COCKPIT
STEM
Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS
Specialized CX Pro 2014 alloy, short drop
TAPE
Specialized S-Wrap, cork ribbon w/ 2.5 gel pads
SADDLE
Body Geometry Rival road, w/ Cr-Mo rails
SEATPOST
Specialized Comp, FACT carbon w/ Zertz insert, aluminum head, two-bolt clamp, 27.2mm
BRAKES
FRONT BRAKE
Tektro wide canti
REAR BRAKE
Tektro narrow canti
ACCESSORIES
PEDALS
Silver cage/black body, w/ black toe clips and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 45 | 47 | 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|---|---|
| Seat-Tube Angle | 76° | 75.5° | 75.5° | 74.5° | 73.5° | 73° | 72.5° | 72° |
| Head-Tube Length | 95mm | 100mm | 110mm | 125mm | 140mm | 155mm | 170mm | 195mm |
| Seat-Post Length | 300mm | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 69.5° | 69.5° | 70° | 70.75° | 71.5° | 72° | 72.5° | 73° |
| Chain-Stay Length | 440mm | 440mm | 440mm | 440mm | 440mm | 440mm | 440mm | 440mm |
| Top-Tube Length, Horizontal | 505mm | 510mm | 515mm | 530mm | 545mm | 560mm | 575mm | 595mm |
| Front-Center | 592mm | 595mm | 596mm | 597mm | 597mm | 601mm | 607mm | 616mm |
| Handle-Bar Width | 400mm | 400mm | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 711mm | 732mm | 748mm | 770mm | 788mm | 805mm | 823mm | 849mm |
| Seat-Tube Length, B-B Center to Top | 450mm | 470mm | 490mm | 520mm | 540mm | 560mm | 580mm | 610mm |
| Fork Rake | 51mm | 51mm | 49mm | 49mm | 49mm | 47mm | 47mm | 47mm |
| B-B Drop | 71mm | 71mm | 71mm | 71mm | 69mm | 69mm | 67mm | 67mm |
| Trail | 76mm | 76mm | 75mm | 70mm | 65mm | 64mm | 61mm | 58mm |
| Wheelbase | 1022mm | 1025mm | 1026mm | 1027mm | 1028mm | 1032mm | 1038mm | 1047mm |
| Crank Length | 170mm | 170mm | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 75mm | 75mm | 75mm | 90mm | 100mm | 110mm | 120mm |
