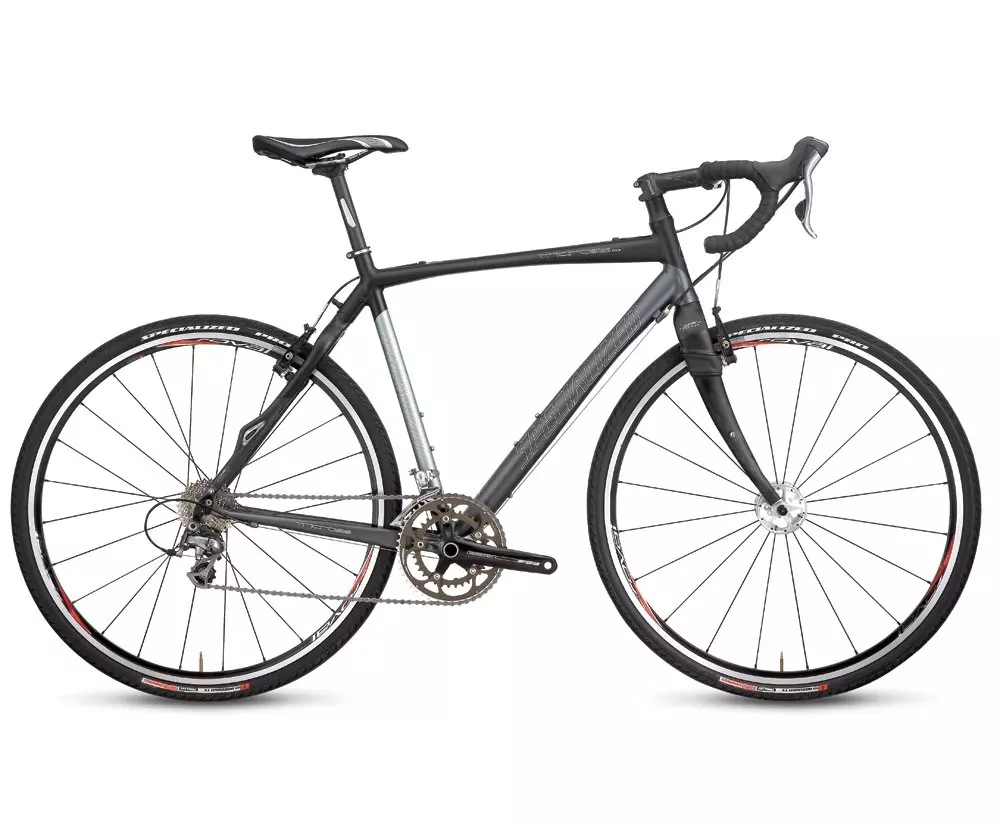

2009 Tricross Comp
0 Reviews
POINT THE TRICROSS down anything from a gravel strewn fireroad to a pothole packed…
Product Details
POINT THE TRICROSS down anything from a gravel strewn fireroad to a pothole packed bike path or maybe even a chunk of smooth singletrack, and you'll realize that its numbness-killing chassis, predictable geometry and robust wheelset will help you redefine what's possible on two (skinny) tires.
The TriCross Comp’s E5 SLX aluminum frame has a slack head angle and long wheelbase for easygoing stability in any situation. Carbon-fiber seatstays with Zertz inserts absorb vibrations.
The TriCross Carbon fork couples precision steering with superb vibration dampening.
The Comp-Set stem uses an oversized 31.8mm bar clamp for precision steering.
The Specialized Comp handlebar has a hand-friendly ergonomic shape.
With an anti-pinch rim design, cold-forged 5-spoke high flange hubs with adjustable axles, and DT Champion spokes with ProLoc brass nipples, the Roval Pavé wheelset is built for bombproof reliability.
The Pavé II carbon seatpost is light, strong, and forgiving, thanks to a vibration-absorbing Zertz insert.
Technical Specifications
FRAMESET
FRAME
Specialized E5 SLX aluminum, fully manipulated tubing, smooth weld semi-compact Freeroad design, FACT carbon seatstays w/ Zertz inserts, rack and fender fittings
FORK
Specialized FACT carbon, carbon legs, aluminum Steerer, Speed Zertz inserts, rack and fender fittings
HEADSET
Specialized Mindset Plus, 1-1/8"" integrated threadless, sealed cartridge bearings, 20mm alloy cone w/ one 10mm and two 5mm alloy spacers
SEAT BINDER
Specialized alloy 31.8mm
WHEELS
FRONT TIRE
Specialized Borough CX Pro, 700x32C, aramid bead, 120TPI
REAR TIRE
Specialized Borough CX Pro, 700x32C, aramid bead, 120TPI
INNER TUBES
Specialized standard presta tube
RIMS
Roval Pavé, anti-pinch rim edge w/ stainless steel eyelets
FRONT HUB
Roval Pave, 20 hole, cold forged alloy five-spoke high flange, adjustable alloy axles, Roval QR
REAR HUB
Roval Pave, 24h, cold forged alloy five-spoke high flange, adjustable alloy axles, Roval QR
SPOKES
DT Champion, stainless 14g w/ ProLoc brass nipples
DRIVETRAIN
FRONT DERAILLEUR
Shimano 105, 31.8mm clamp, bottom pull
REAR DERAILLEUR
Shimano Ultegra SL, short cage
SHIFT LEVERS
Shimano 105, 10-speed STI, flight deck compatible
CASSETTE
Shimano 105, 10-speed 12-27t
CHAIN
Shimano 105, 10-speed
CRANKSET
FSA Gossamer MegaExo, 2-piece crankset
CHAINRINGS
48 x 34t
BOTTOM BRACKET
FSA MegaExo, integrated exterior cartridge bearings, alloy
COCKPIT
STEM
Specialized Comp-Set, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4- position adjustable
HANDLEBARS
Specialized Comp, 6061 alloy, short drop, ergonomic shaping, 31.8mm
TAPE
Body Geometry Bar Phat, cork ribbon w/ 2.5mm gel padding
SADDLE
Specialized Comp Road, full padding
SEATPOST
Specialized Pavé II, FACT carbon w/ Zertz insert, aluminum head, 27.2mm
BRAKES
FRONT BRAKE
Tektro high profile linear spring cantilever, alloy, cartridge pads
REAR BRAKE
Tektro low profile linear spring cantilever, alloy, cartridge pads
BRAKE LEVERS
Shimano 105, 10-speed STI, flight deck compatible
ACCESSORIES
PEDALS
Silver cage, black body, w/ toe clip and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74.5° | 73.5° | 73° | 72.5° | 72° |
| Head-Tube Length | 110mm | 125mm | 140mm | 155mm | 170mm | 195mm |
| Seat-Post Length | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm |
| Head-Tube Angle | 70° | 70.75° | 71.5° | 72° | 72.5° | 73° |
| Chain-Stay Length | 440mm | 440mm | 440mm | 440mm | 440mm | 440mm |
| Top-Tube Length, Horizontal | 515mm | 530mm | 545mm | 560mm | 575mm | 595mm |
| Front-Center | 596mm | 597mm | 597mm | 601mm | 607mm | 616mm |
| Stand-Over Height | 748mm | 770mm | 788mm | 805mm | 823mm | 849mm |
| Seat-Tube Length, B-B Center to Top | 490mm | 520mm | 540mm | 560mm | 580mm | 610mm |
| Fork Rake | 49mm | 49mm | 49mm | 47mm | 47mm | 47mm |
| B-B Drop | 71mm | 71mm | 69mm | 69mm | 67mm | 67mm |
| Trail | 75mm | 70mm | 65mm | 64mm | 61mm | 58mm |
| Wheelbase | 1026mm | 1027mm | 1028mm | 1032mm | 1038mm | 1047mm |
