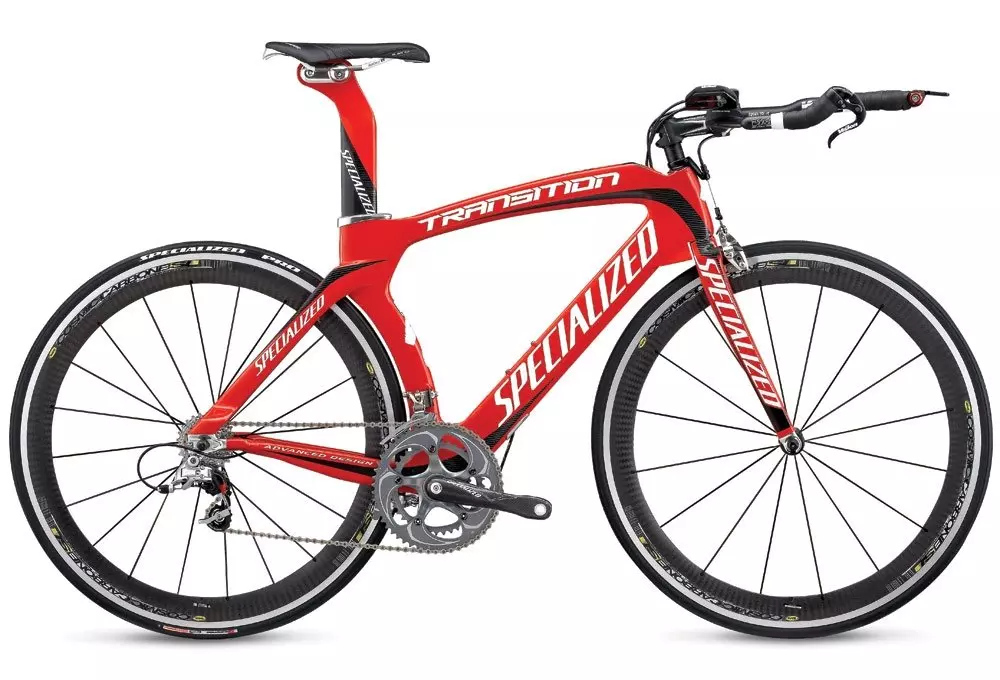

2009 Transition Pro
0 Reviews
SO FAST IT WINS WORLD IRONMAN CHAMPIONSHIPS and carries Pro Tour riders to some of…
Product Details
SO FAST IT WINS WORLD IRONMAN CHAMPIONSHIPS and carries Pro Tour riders to some of their fastest TT finishes, the FACT carbon Transition is every rider's unfair advantage.
The Transition Pro’s FACT carbon, triple monocoque frame features our N’Aero tube shaping in a compact aero design, with an oversized BB for maximum pedaling efficiency.
The Specialized FACT N’Aero carbon monocoque fork is stiff, quick, and precise.
The Vision Tech aero handlebar puts you in the perfect position for the long-haul tri miles.
The Specialized integrated brake system maintains an aero profile while still providing sure stops.
Our FACT Pro carbon crankset meshes perfectly with our OS BB for fantastic pedaling performance.
The Body Geometry TriTip saddle features a thickly padded nose for comfort on those long miles.
The Transition Carbon seatpost is perfectly shaped to cheat the wind.
Technical Specifications
FRAMESET
FRAME
Specialized FACT 7r N'Aero tube shaping, triple monocoque construction, compact aero geometry, vertical seat adjustment, OS BB
FORK
Specialized FACT N'Aero carbon, monocoque construction, 1"" steerer
HEADSET
Specialized Mindset Plus, 1"" integrated threadless, sealed cartridge bearings w/ two 10mm and two 5mm carbon spacers
SEAT BINDER
Transition alloy
WHEELS
FRONT TIRE
Specialized Mondo Pro, 700x21C, aramid bead, 120TPI
REAR TIRE
Specialized Mondo Pro, 700x21C, aramid bead, 120TPI
INNER TUBES
Specialized standard presta tube
RIMS
Mavic Cosmic Carbone SL
FRONT HUB
Mavic Cosmic Carbone SL, Mavic QR
REAR HUB
Mavic Cosmic Carbone SL, Mavic QR
SPOKES
Stainless steel, bladed
DRIVETRAIN
FRONT DERAILLEUR
SRAM Force, braze-on clamp
REAR DERAILLEUR
SRAM Red
SHIFT LEVERS
SRAM TT, 10-speed bar end shifters
CASSETTE
SRAM OG1070, 10-speed 11-25t
CHAIN
SRAM 1090R, 10-speed
CRANKSET
Specialized FACT Pro carbon, integrated oversize design
CHAINRINGS
53 x 39t
BOTTOM BRACKET
Specialized oversize integrated
COCKPIT
STEM
Specialized Pro-Set stem, 3D forged alloy, 4-bolt 31.8mm handlebar clamp, 4-position adjustable
HANDLEBARS
Vision Tech aluminum Transition aero bar
TAPE
Body Geometry cork ribbon
SADDLE
Body Geometry TriTip, super light foam, carbon reinforced base, hollow Ti rails, microfiber cover, 50mm nose width
SEATPOST
Specialized Transition carbon, 2 position
BRAKES
FRONT BRAKE
Specialized integrated brake system
REAR BRAKE
Specialized integrated brake system
BRAKE LEVERS
Vision Tech aero levers
ACCESSORIES
PEDALS
Silver cage, black body, w/ toe clip and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Head-Tube Length | 170mm | 172.5mm | 175mm | 175mm |
| BB to top of Head-Tube, Vertical | -100mm | -100mm | -100mm | -100mm |
| Head-Tube Angle | 575° | 589° | 602° | 621° |
| Chain-Stay Length | 71.5mm | 72mm | 72mm | 72.5mm |
| Seat-Tube Length, B-B Center to Top vertical | 72mm | 72mm | 72mm | 72mm |
| Front-Center | 100mm | 110mm | 120mm | 120mm |
| BB to top of Head-Tube, Horizontal | 395mm | 395mm | 395mm | 395mm |
| Handle-Bar Width | 350mm | 350mm | 350mm | 350mm |
| Saddle Setback (Min) | 43mm | 43mm | 43mm | 43mm |
| Stand-Over Height | 75mm | 75mm | 90mm | 100mm |
| Saddle Setback (Max) | 68mm | 65mm | 65mm | 62mm |
| Fork Rake | 961mm | 975mm | 988mm | 1007mm |
| BB Drop | 50mm | 50mm | 50mm | 50mm |
| Trail | 761mm | 763mm | 768mm | 787mm |
| Wheelbase | 400mm | 400mm | 420mm | 420mm |
