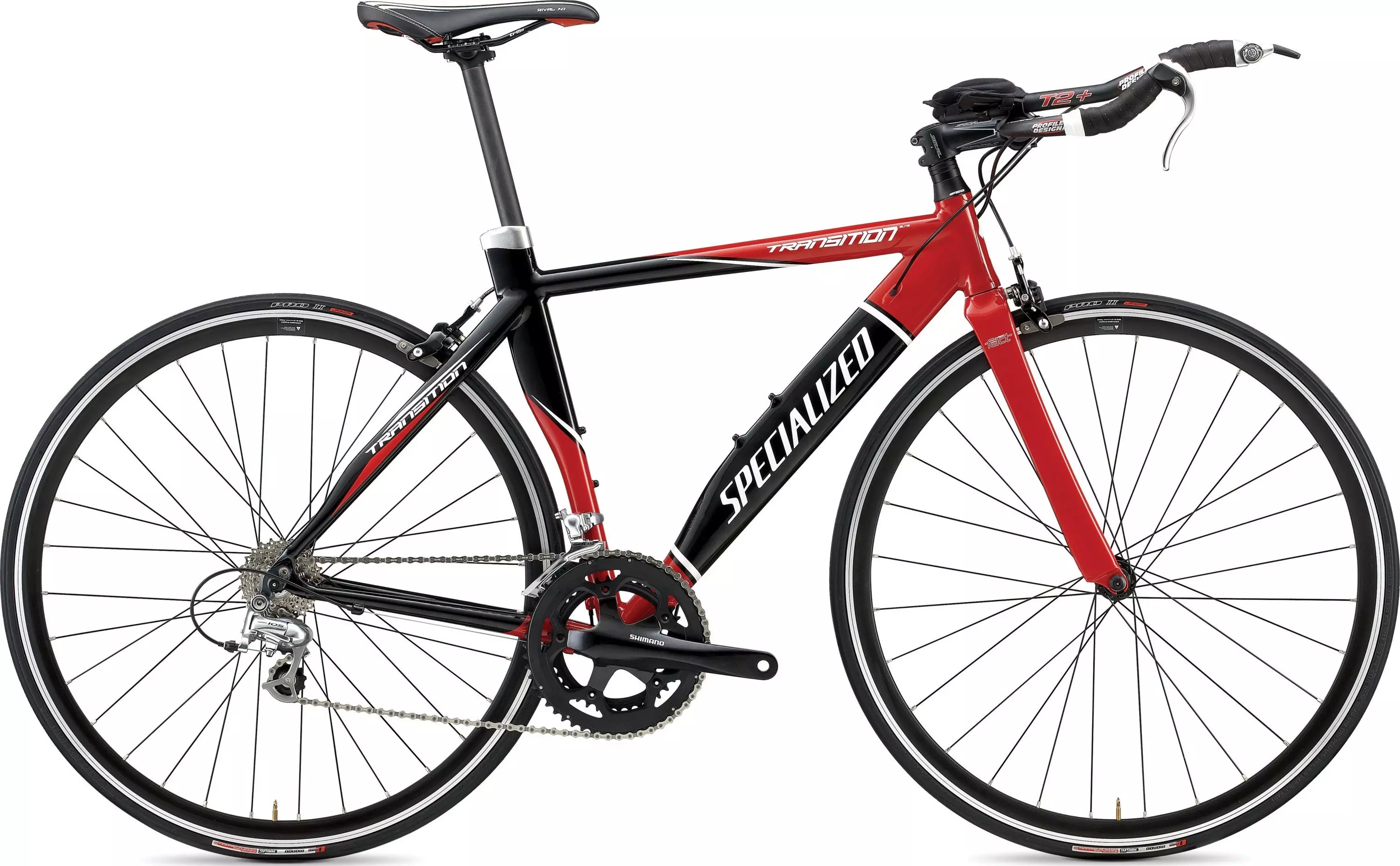

2010 Transition A1 Elite

0 Reviews

The bike that carried Saxo Bank's Fabian Cancellara to a prologue win at this year's…

Product Details

The bike that carried Saxo Bank's Fabian Cancellara to a prologue win at this year's Tour of California is none other than the wind tunnel engineered Transition®. The competitive leader in aerodynamics and stiffness, the Transition gets its Autobahn speed from proprietary features like an incredibly slippery Specialized FACT carbon chassis (aluminum version also available), FACT integrated crankset, completely integrated brakes and a two-position Transition carbon seatpost.

Aerodynamic FACT carbon monocoque fork hides from the wind for precision steering
Rival road saddle uses a Body Geometry V-groove for pressure relief and Cr-Mo rails to balance light weight and durability
A1 alloy, smooth-welded frame with N'Aero tube shaping and optimal stiffness for wind-slicing performance
Profile T2+ aerobar features S-Bend extensions to allow more aggressive positioning

Technical Specifications

FRAMESET

FRAME

Specialized Transition Elite, smooth weld A1 alloy aero tubing

FORK

Transition full monocoque fork, 1 1/8"" steerer

HEADSET

Cage bearings integrated HS. w/ 20mm of spacers w/ top cap

SEAT BINDER

Alloy

WHEELS

FRONT HUB

Forged alloy, sealed, 28h for J bend round spokes

REAR HUB

Forged alloy, sealed, cassette, QR, 32h

SPOKES

Stainless 14g

FRONT TIRE

Specialized Mondo Pro II 700x21c, aramid bead, 120TPI, w/ Flak Jacket protection

REAR TIRE

Specialized Mondo Pro II 700x21c, aramid bead, 120TPI, w/ Flak Jacket protection

INNER TUBES

Standard presta valve

RIMS

Alex Race 32, aluminum, sleeve joint, CNC machined sidewalls

DRIVETRAIN

SHIFT LEVERS

Shimano Bar Con shifters

FRONT DERAILLEUR

Shimano 105

REAR DERAILLEUR

Shimano 105

CASSETTE

Shimano 105, 10-speed, 12-27t

CRANKSET

Shimano FCR-550

CHAINRINGS

53 x 39T

BOTTOM BRACKET

With Crankset

CHAIN

KMC DX10 SC

COCKPIT

HANDLEBARS

Profile T2+ Aerobar

STEM

Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp

TAPE

Specialized S-Wrap, cork ribbon

SADDLE

Body Geometry Rival road, w/ Cr-Mo rails

SEATPOST

Carbon wrapped, two-bolt clamp, 27.2mm

BRAKES

FRONT BRAKE

Tektro cold-forged, dual pivot brake w/ cartridge pads

REAR BRAKE

Tektro cold-forged, dual pivot brake w/ cartridge pads

BRAKE LEVERS

Aero lever

ACCESSORIES

PEDALS

Silver cage/black body, w/ black toe clips and strap

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	SM	MD	LG	XL	XXL
Seat-Tube Angle	77°	76.25°	76°	76°	76°	76°
Head-Tube Length	90mm	100mm	115mm	135mm	160mm	185mm
BB to top of Head-Tube, Horizontal (Reach)	365mm	380mm	395mm	405mm	425mm	450mm
Seat-Post Length	300mm	350mm	350mm	350mm	350mm	350mm
Head-Tube Angle	69.5°	71.5°	72°	72.5°	72.5°	72.5°
Chain-Stay Length	400mm	400mm	400mm	405mm	405mm	410mm
Top-Tube Length, Horizontal	479mm	504mm	523mm	539mm	564mm	593mm
Front-Center	576mm	576mm	592mm	602mm	629mm	660mm
Handle-Bar Width	400mm	400mm	400mm	420mm	420mm	420mm
Stand-Over Height	712mm	725mm	738mm	754mm	776mm	803mm
Seat-Tube Length, B-B Center to Top	470mm	480mm	490mm	500mm	520mm	550mm
Fork Rake	49mm	45mm	45mm	43mm	43mm	43mm
BB to top of Head-Tube, Vertical (Stack)	484mm	503mm	516mm	538mm	560mm	583mm
B-B Drop	72mm	72mm	70mm	70mm	68mm	68mm
Trail	75mm	66mm	63mm	62mm	62mm	62mm
Wheelbase	965mm	965mm	981mm	996mm	1024mm	1061mm
Crank Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Stem Length	75mm	90mm	100mm	110mm	120mm	120mm
