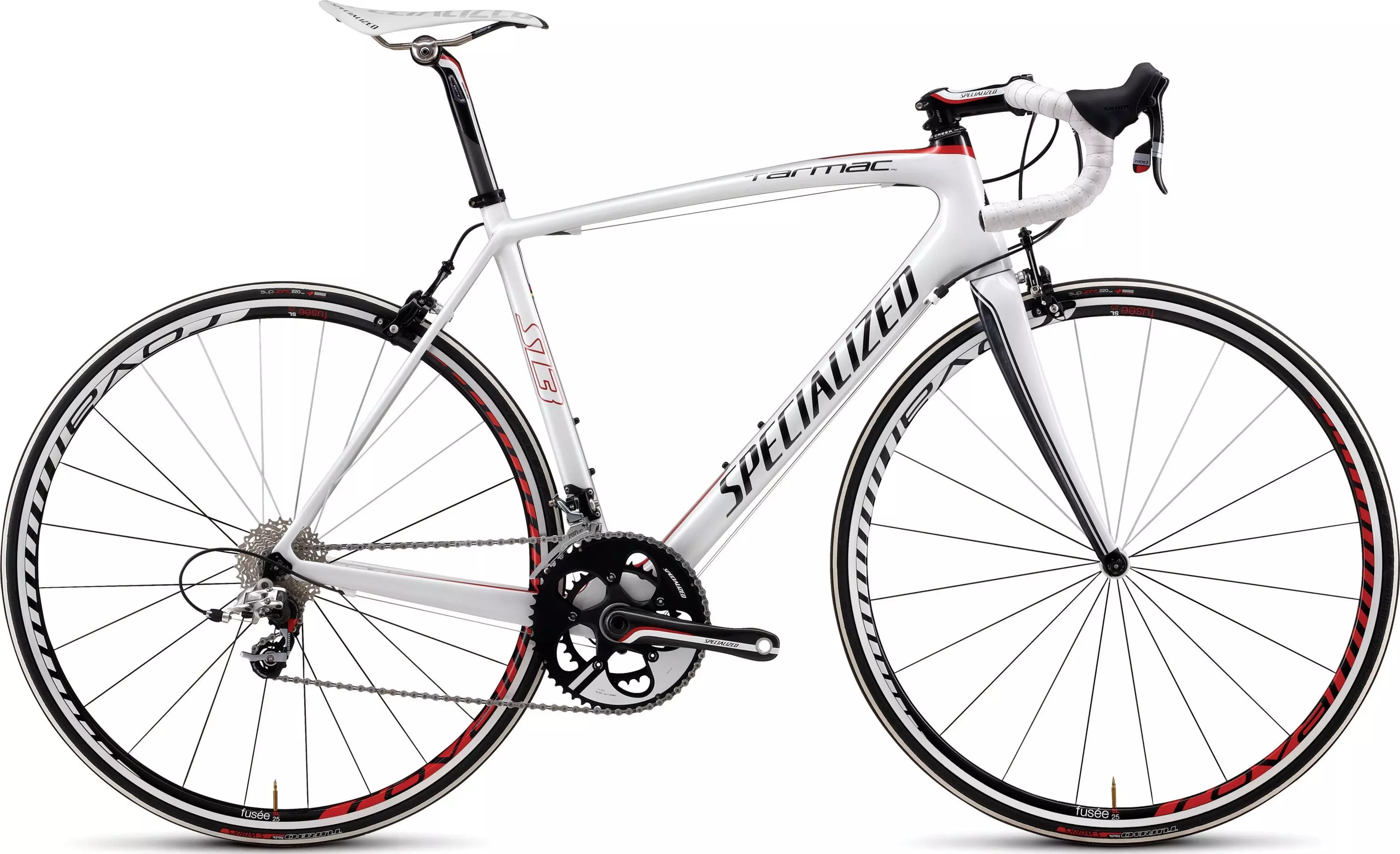

2011 Tarmac SL3 Pro SRAM
0 Reviews
With the word "Pro" in its name, the Tarmac SL3 Pro boldly sets its performance standard…
Product Details
With the word "Pro" in its name, the Tarmac SL3 Pro boldly sets its performance standard with FACT 10r frame, SRAM RED components, and Specialized Pro FACT carbon cranks.
New SL3 FACT IS 10r carbon frame is now even stiffer and lighter for pure, unbridled speed and power
The FACT carbon fork with a tapered steerer is light, stiff and compliant
Specialized Pro FACT carbon crankset with oversized BB and removable spider has outstanding strength to weight ratio for superior efficiency and power transfer
Pro FACT carbon seatpost is super light and stiff for optimal power transfer
SRAM's pro tour-proven RED carbon shifters are super light, with "double tap" technology for simple intuitive shifting and reach adjustment for perfect fit
Roval Fusee SL wheelset combines our lightest alloy rims with aero features for a durable and compliant ride for everyday training
Technical Specifications
FRAMESET
FRAME
Specialized FACT 10r carbon, FACT IS construction, compact race design, 1-1/2"" lower HS bearing, OSBB
FORK
Specialized FACT carbon full monocoque, OS race for 1-1/2"" bearing
HEADSET
1-1/8"" upper and 1-1/5"" lower Cr-Mo cartridge bearings integrated w/ headset, carbon 8mm cone spacer and 20mm of carbon spacers
SEAT BINDER
Forged alloy, 32.6mm
WHEELS
FRONT WHEEL
Roval Fusee SL
REAR WHEEL
Roval Fusee SL
FRONT TIRE
S-Works Turbo, 700x23c, Aramid bead, 220TPI w/ Black Belt protection
REAR TIRE
S-Works Turbo, 700x23c, Aramid bead, 220TPI w/ Black Belt protection
INNER TUBES
Standard presta valve
DRIVETRAIN
SHIFT LEVERS
SRAM RED
FRONT DERAILLEUR
SRAM Force
REAR DERAILLEUR
SRAM RED
CASSETTE
Shimano Ultegra, 10-speed, 11-28t
CRANKSET
Specialized Pro FACT carbon
CHAINRINGS
52 x 36T
CHAIN
KMC X10 L CP
BOTTOM BRACKET
With Crankset
COCKPIT
HANDLEBARS
Specialized Pro SL Carbon, classic bend
STEM
Specialized Pro-Set, 3D forged 7050 aluminum, 4-position adjustable, 4-bolt 31.8mm clamp
TAPE
Specialized Pro D2
SEATPOST
Specialized Pro, FACT carbon w/ Zertz insert
SADDLE
Body Geometry Romin Expert w/ hollow Ti rails
BRAKES
FRONT BRAKE
TRP 870 Equipe, forged aluminum, cartridge pads
REAR BRAKE
TRP 870 Equipe, forged aluminum, cartridge pads
BRAKE LEVERS
SRAM RED
ACCESSORIES
PEDALS
Black cage, body & toe clips w/ strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 100mm | 120mm | 145mm | 170mm | 205mm | 230mm |
| Seat-Post Length | 300mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Center | 576mm | 576mm | 583mm | 591mm | 605mm | 612mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 730mm | 755mm | 777mm | 800mm | 828mm | 857mm |
| Seat-Tube Length, B-B Center to Top | 460mm | 490mm | 510mm | 530mm | 550mm | 580mm |
| Fork Rake | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
| B-B Drop | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
| Trail | 62mm | 57mm | 57mm | 56mm | 56mm | 53mm |
| Wheelbase | 970mm | 970mm | 978mm | 986mm | 1003mm | 1013mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 120mm |
