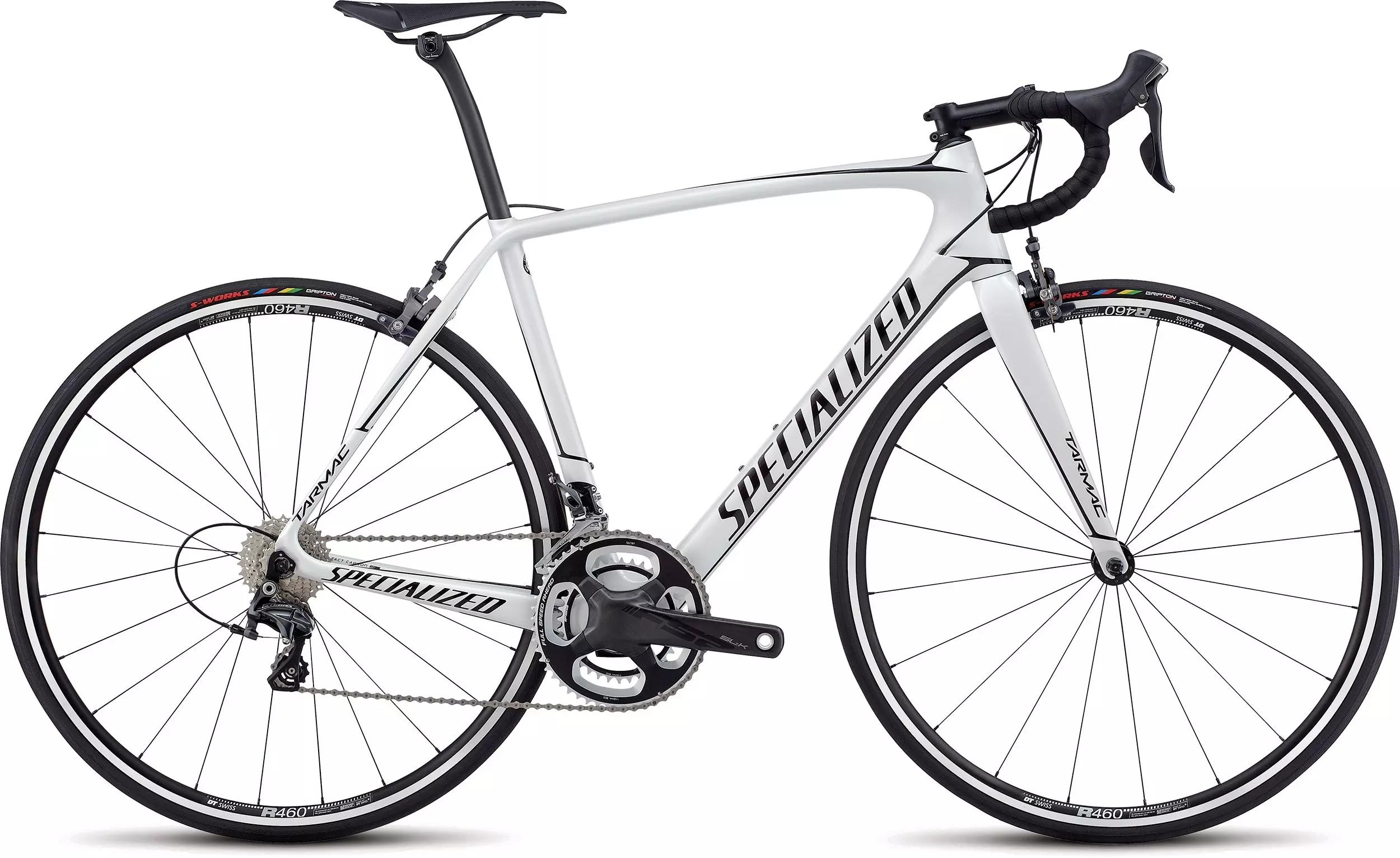

2017 Tarmac Expert

0 Reviews

Chances are, you're not going to be competing in a Grand Tour this year, but when…

Product Details

Add Icon

Chances are, you're not going to be competing in a Grand Tour this year, but when it comes to your training rides and local races, it's hard to top the Tarmac Expert. Like the S-Works Tarmac iterations, it features a Rider-First Engineered™ design that that applies specificity to every tube size and carbon layup for every frame size. This creates the optimal balance of rigidity, weight, and responsiveness, so every frame, regardless of size, performs just as we intended. You'll also find an identical, Grand-Tour-winning geometry, plus a FACT 10r carbon fiber construction that's mere steps away from what you'll find under the likes of Peter Sagan. For the spec, we selected components that deliver the best bang for your buck, stiff, reliable DT Swiss R460 Pro wheels, Shimano Ultegra 6800, and a bevy of Body Geometry components that maximize performance by providing the utmost in comfort. It's everything you need to take your racing to the next level, and more than enough to bag some PRs on the weekend.

  • The FACT 10r carbon frame combines the lightweight performance and compliance of our top-end carbon production methods with our Rider-First Engineered™ design that ensures every frame size has the same legendary climbing responsiveness and descending prowess you'd expect from a Tarmac.

  • S-Works FACT full carbon fork with tapered construction provides incredible front end stiffness and steering response for instantaneous accelerations and high-speed descents.

  • The DT Swiss R460 Pro wheelset can be considered a "jack of all trades." It features an ample width for interfacing nicely with wider tires, while its alloy construction is both sturdy and stiff, making it ideal for climbing, railing corners, and taking a hit when those pesky potholes sneak up on you.

Technical Specifications

Add Icon

FRAMESET

FRAME

FACT 10r carbon, OSBB, full internal cable routing, internally integrated seat clamp, 130mm spacing

FORK

S-Works FACT carbon, full monocoque, size-specific taper

SEAT BINDER

Integrated wedge for Tarmac

WHEELS

FRONT TIRE

S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x24mm

REAR TIRE

S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x24mm

INNER TUBES

700x20/28mm, 48mm Presta valve

FRONT WHEEL

DT Swiss R460 Pro, QR

REAR WHEEL

DT Swiss R460 Pro, QR

DRIVETRAIN

REAR DERAILLEUR

Shimano Ultegra 6800, 11-speed

SHIFT LEVERS

Shimano Ultegra 6800, 11-speed

CASSETTE

Shimano Ultegra 6800, 11-speed, 11-28t

CHAIN

Shimano HG70, 11-speed

CRANKSET

FSA SL-K Light

CHAINRINGS

52/36T

BOTTOM BRACKET

BB30 bearings

FRONT DERAILLEUR

Shimano Ultegra 6800, 11-speed, braze-on

COCKPIT

HANDLEBARS

Specialized Expert Shallow Drop, alloy, 123mm drop, 75mm reach

STEM

Specialized Pro SL, alloy, 4-bolt

TAPE

S-Wrap Roubaix w/sticky gel

SADDLE

Body Geometry Toupé Expert Gel, Adaptive Edge design, hollow titanium rails, 143mm

SEATPOST

S-Works FACT carbon, 20mm offset

BRAKES

REAR BRAKE

Shimano Ultegra

FRONT BRAKE

Shimano Ultegra front

ACCESSORIES

PEDALS

Nylon, 105x78x28mm, loose balls w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
49525456586164
Crank Length170mm170mm172.5mm172.5mm175mm175mm175mm
Handlebar Width400mm420mm420mm420mm440mm440mm440mm
Stem Length75mm90mm100mm100mm110mm110mm120mm
Saddle Width143mm143mm143mm143mm143mm143mm143mm
Seatpost Length350mm350mm350mm400mm400mm400mm400mm
Seat-Tube Angle75.5°74°73.5°73.25°73°72.5°72.5°
Head-Tube Length100mm120mm140mm160mm190mm210mm235mm
Head-Tube Angle72.25°73°73°73.5°73.5°74°74°
Chain-Stay Length405mm405mm405mm405mm407mm410mm410mm
Front-Center576mm576mm583mm591mm605mm612mm645mm
B-B Drop71.5mm71.5mm69mm69mm67.5mm67.5mm67.5mm
B-B Height270mm270mm272.5mm272.5mm274mm274mm274.5mm
Bike Stand-Over Height730mm755mm775mm795mm826mm850mm850mm
Fork Length (full)368mm368mm368mm368mm368mm368mm368mm
Top-Tube Length (horizontal)518mm537mm548mm565mm582mm600mm621mm
Seat-Tube Length431mm462mm481mm501mm522mm553mm584mm
Stack504mm526mm543mm564mm591mm612mm636mm
Reach386mm386mm387mm395mm402mm408mm415mm
Trail62mm57mm57mm56mm56mm53mm50mm
Fork Rake/Offset45mm45mm45mm43mm43mm43mm43mm
Wheelbase970mm970mm978mm986mm1003mm1013mm1016mm
